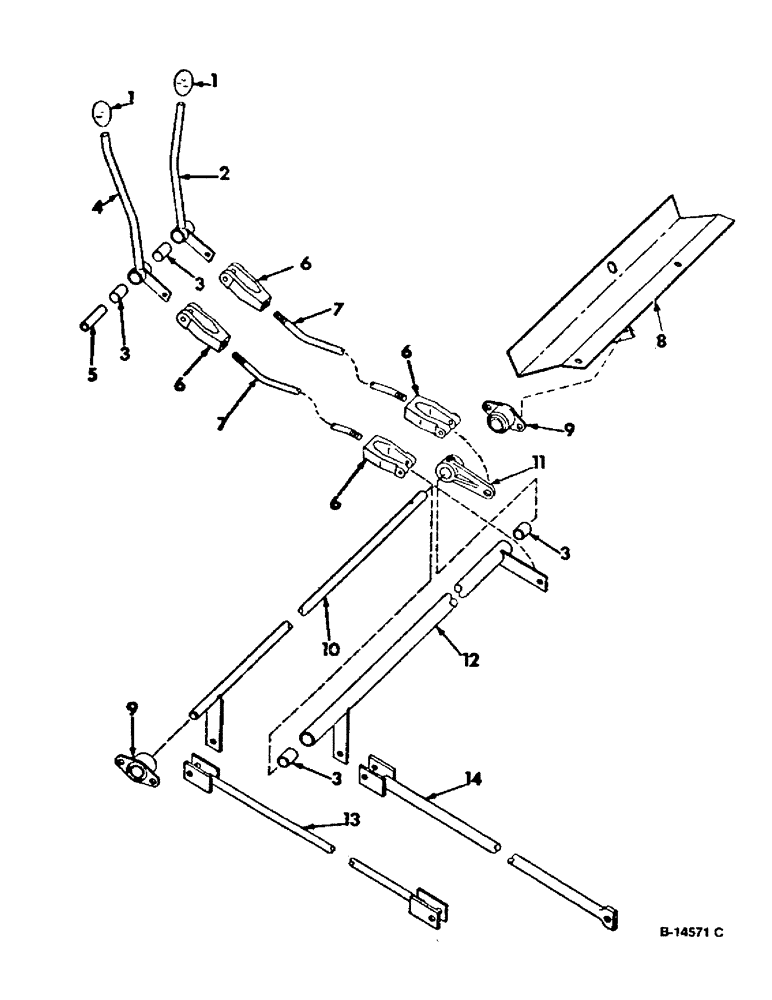

Запчасти Case IH 915 (33-11) - FEEDER, HEADER AND REEL LIFT CONTROL (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
164338C1
KNOB, header and reel lift control lever
2шт.
2
164332C91
LEVER W/BUSHING, reel lift control, includes ref no 3
1шт.
3
568921R1
BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L
reel & header lift control lever hub
4шт.
4
164328C91
LEVER W/BUSHING, header lift control, includes ref no 3
1шт.
5
164881C1
BUSHING, header & reel lift lever pivot
1шт.
18784R1
BOLT,Hex, 3/8"-16 x 2 3/4", G2
3/8 x 2-3/4 sq-nk crg
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
21796R1
WASHER
21/32 x 7 x 16 ga
1шт.
6
144243
CLEVIS
header and reel lift control rod
4шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
4шт.
21881R1
CLEVIS PIN
PIN, 3/8 x 1 rod end
4шт.
7
170619C1
ROD, header and reel lift control
2шт.
124925
JAM NUT,Jam, 3/8"-24, G5
4шт.
8
178399C1
ANCHOR ASSY, operators platform support RH
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 hex-hd
2шт.
682256R1
NUT, 3/8 flange lock
2шт.
9
164864C91
FLANGE,15.89mm ID
BEARING, header & reel lift control pivot
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 sq-nk crg
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
10
169821C91
SHAFT ASSY, reel lift control
1шт.
11
164815C1
ARM, reel lift
1шт.
265923R1
LOCK PIN,3/16" x 1 1/4", Slotted
Pin, 3/16" x 1 1/4", Slotted
1шт.
12
164818C91
SHAFT ASSY, header bellcrank, includes ref no 3
1шт.
13
164830C91
ROD ASSY, reel lift
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
20155R1
CLEVIS PIN,3/16" x .719"
PIN, 3/16 x 23/32 rod end
1шт.
21881R1
CLEVIS PIN
PIN, 3/8 x 1 rod end
2шт.
14
164816C91
ROD ASSY, header lift lower
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
21881R1
CLEVIS PIN
PIN, 3/8 x 1 C-Z rod end
1шт.
124925
JAM NUT,Jam, 3/8"-24, G5
1шт.
Выбрано товаров: 34
