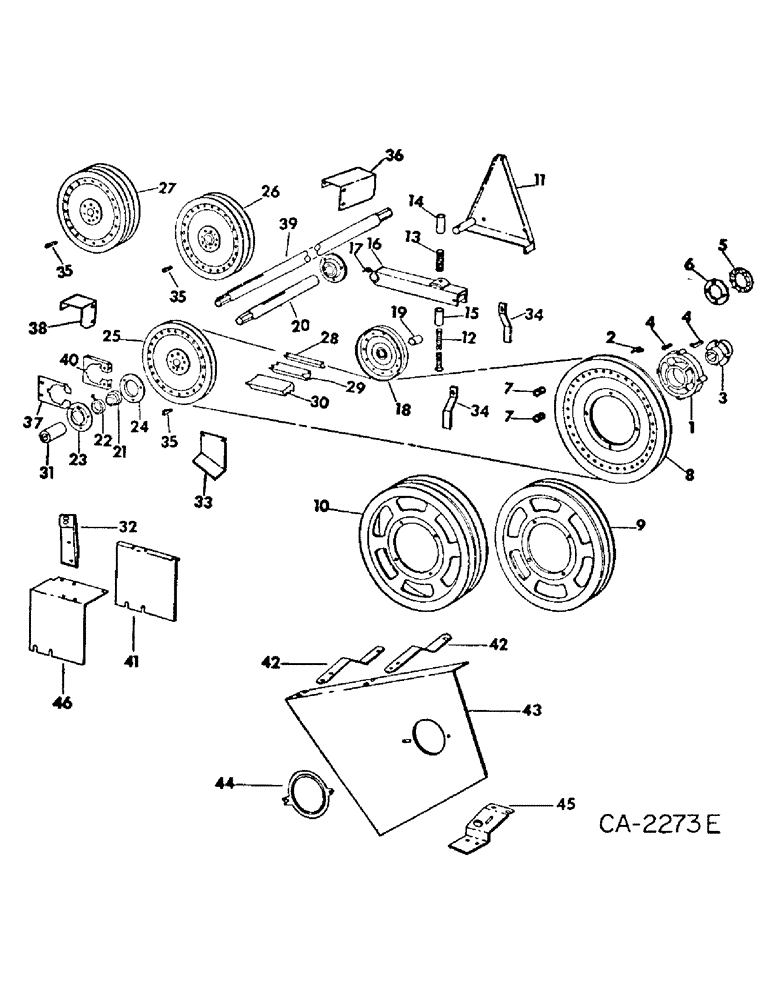

Запчасти Case IH 915 (33-08) - FEEDER, FEEDER JACKSHAFT DRIVE (13) - FEEDER

1

179031C2

HUB

feeder driven pulley

1шт.

2

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/4-27 long lub

1шт.

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

ADAPTOR 90 deg

1шт.

3

179029C1

HUB CAP

HUB, feed conveyor slip clutch

1шт.

4

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

2шт.

5

179030C1

RATCHET

feeder slip clutch outer

1шт.

6

179032C1

RATCHET

feeder slip clutch inner

1шт.

27350R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8 x 4-1/2 sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

6шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

12шт.

Q3500

WASHER

21/32 x 1-1/8 x 14 ga

6шт.

7

584007R1

SPRING

feed conveyor slip clutch

6шт.

8

176564C1

PULLEY

feeder jackshaft drive, 16.7 in. OD, single belt

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8 x 3 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

176574C1

PULLEY

feeder jackshaft drive double, 16.7 in. OD, double belt

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8 x 3-1/2 hex-hd

4шт.

10

176575C1

PULLEY

feeder jackshaft triple D, 16.7 in. OD, tripple belt

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

11

176545C1

SUPPORT

ASSY, feeder jackshaft drive tightener pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

3шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8 x 1 slt-truss-hd

3шт.

591715R1

WASHER

1.031 x 1.5 x .054 znd

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

12

176548C1

BOLT,Hex, 1/2" - 13

jksft drive tightener adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120396

WASHER

.53 x 1.06 x .10 znd

2шт.

21883R1

WASHER

.531 x 1.75 x .09 znd

1шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga znd

1шт.

13

523267R1

SPRING

adj bolt, single belt

1шт.

13

PO3A

SPRING

adj bolt, double and triple belts

1шт.

14

176569C1

SPACER

adj bolt spring, single belt

1шт.

14

176580C1

SPACER

adj bolt spring, double belt

1шт.

14

176581C1

SPACER

adj bolt spring, triple belt

1шт.

15

176544C2

SPACER

adj bolt spring inner

1шт.

16

176549C1

ARM

ASSY, jksft drive tightener pivot

1шт.

17

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 deg self tap. lub

1шт.

18

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, jksft drive tightener, 8 in. OD, single belt

1шт.

18

176579C1

IDLER

ASSY, jksft drive tightener, 8 in. OD, double and triple belts

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

SCREW, 5/8 x 6-1/2 znd hex-hd cap, single belt

1шт.

19823R1

BOLT,Hex, 5/8" - 11 x 7", Gr 5

SCREW, 5/8 x 7 znd hex-hd cap, double belt

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8 x 7-1/2 znd hex-hd cap, triple belt

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.66 x 1.3 x .10 znd

3шт.

19

469072R1

SPACER, 3/4 x 2 extra strong pipe, single and double belt

1шт.

19

657114R1

SPACER,3/4" X-Strng Pipe x 2 3/8"

3/4 x 2.375 extra strong pipe, triple belt

1шт.

20

176561C1

JACKSHAFT

feeder, single and double belt

1шт.

20

176571C1

JACKSHAFT

feeder, triple belt

1шт.

21

611583R91

BALL BEARING

BEARING, feeder jackshaft

2шт.

22

517645R11

COLLAR

W/SET SCREW, feeder jackshaft

2шт.

23

180955C1

FLANGED BEARING,0.375"

FLANGE, feeder jackshaft

2шт.

24

180955C1

FLANGED BEARING,0.375"

FLANGE, feeder jackshaft

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

25

176562C1

PULLEY

feeder jackshaft driven, 13.4 in. OD, single belt

1шт.

26

176572C1

PULLEY

feeder jackshaft driven double, 13.4 in. OD, double belt

1шт.

27

176573C3

PULLEY

feeder jackshaft drive triple, 13.4 in. OD, triple belt

1шт.

28

176565C1

BELT,0.879" W x 174.99" L

V-BELT , Feeder jackshaft drive, Single belt, Not for use w/23.1-34, 24.5-32 tires and track 0.879" W x 174.99" L

1шт.

28

176576C1

BELT,0.879" W x 195.99" L

V-BELT , Feeder jackshaft drive, Single belt, S/N 19000 and below, For use w/23.1-34, 24.5-32 tires and track 0.879" W x 195.99" L

1шт.

29

176566C1

BELT

V-BELT, Feeder jackshaft drive, Double belt, Not for use w/23.1-34, 24.5-32 tires and track

1шт.

29

176577C1

SET OF BELTS

Feeder jackshaft drive, Double, for sue w/23.1-34.24.5-32 tires and track, serial no. 19001 and above

1шт.

30

176567C1

SET OF BELTS

Feeder jackshaft drive, Triple belt, Not for use w/23.1-34 24.5-32 tires and track

1шт.

31

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, feeder jackshaft drive

1шт.

517843R1

COTTER PIN

PIN, 3/16 qa cot.

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2-3/8 znd std-hd

1шт.

32

187257C1

ANGLE, driven pulley shield support

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

33

177143C1

PLATE, jackshaft driven pulley guard, triple belt

1шт.

33

179433C1

PLATE, jackshaft driven pulley guard, single and double belt

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-tr-hd

2шт.

34

197110C1

GUIDE

belt, double and triple belt

2шт.

35

Q1401

KEY, 3/8 x 1-3/4 sq tapered, double belt Gib, 3/8" Sq x 1 3/4" Tap

1шт.

35

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib, triple belt

1шт.

35

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib, single belt

1шт.

36

176254C1

SHIELD, feeder jackshaft RH, triple belt

1шт.

23896R1

DOWEL,5/8" x 3"

SCREW, 1/4 x 1/2 hex-wash-hd tap

3шт.

37

175915C1

SUPPORT

feeder jackshaft brg

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq nk crg

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

4шт.

38

179253C1

SHIELD

feeder jackshaft LH

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

39

176571C1

JACKSHAFT

feeder, triple belt

1шт.

40

178254C1

SUPPORT

feeder jackshaft shield, triple belt

1шт.

41

187255C1

SHIELD, jackshaft driven pulley

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

42

196393C1

SUPPORT, drive shield upper

2шт.

43

196394C1

SUPPORT, drive shield

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/1L x 3/4 slt-truss-hd

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

44

188315C1

DOOR

DRIVE SHIELD COVER

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

1шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

NUT, 1/4 prev. torque

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

935735R1

WING NUT

1/4 wing

1шт.

45

196392C1

SUPPORT, drive shield lower

1шт.

46

187256C1

SHIELD, jackshaft driven pulley

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

180657C91

SERVIE PACKAGE, feeder jackshaft driven pulley, parts accessory, consists of ref. nos. 32, 40 & 41 and instruction manual 1095310R1

1шт.
