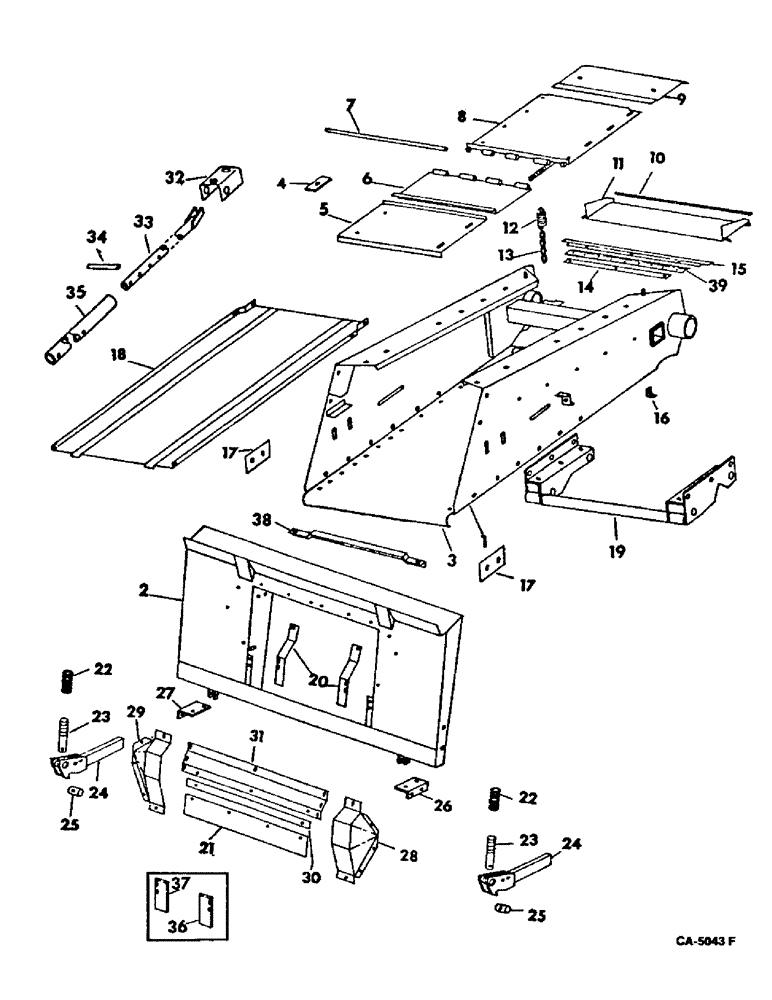

Запчасти Case IH 915 (33-01) - FEEDER (13) - FEEDER

1

197938C3

HOUSING ASSY, feeder, not for 34 in. tires

1шт.

1

197940C3

HOUSING

ASSY, feeder, for 34 in. tires

1шт.

619008R1

BOLT

1/2 x 1 sq-nk grg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8 x 1-1/2 hex-hd cap

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8 x 1-3/4 hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608081R1

WASHER

.66 x 1.75 x .12

1шт.

2

175864C2

ADAPTER

ASSY, feeder

1шт.

3

175888C1

BOTTOM

SHEET, feeder bottom, not for 34 inch tires, serial no 19000 and below

1шт.

187296C1

SHEET

feeder bottom, not for 34 inch tires, serial no 19001 and above

1шт.

3

175943C1

SHEET

feeder bottom, for 34 inch tires, serial no 19000 and below

1шт.

3

187295C1

SHEET

feeder bottom, for 34 inch tires, serial no 19001 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

1шт.

4

154041C1

STRIP

feeder top door hold down

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

175901C2

SHEET, feeder lower top

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

.53 x 1.06 x .10 ga

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/2 crg type 5

1шт.

6

175904C1

HOSE CLIP

DOOR, feeder top

1шт.

7

175907C1

ROD

feeder top door hinge

1шт.

8

175891C1

SHEET ASSY, feeder top, not for 34 inch tires

1шт.

8

175941C1

SHEET ASSY, feeder top, for 34 inch tires

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, WASHER, LOCK, 5/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

.53 x 1.06 x .10 ga

1шт.

9

175921C1

COVER, feeder top upper

1шт.

10

175931C1

ROD

feeder door hinge

1шт.

11

175924C1

DOOR

ASSY, feeder

1шт.

12

622016R1

SPRING

door latch

2шт.

13

167570C1

CHAIN,203.2mm L

door latch

2шт.

14

175950C1

STRIP

seal backing, serial no 19000 and below

1шт.

14

197526C1

SEALING STRIP

seal backing, serial no 19001 and above

1шт.

15

175934C1

SEAL

feeder door, serial no 19000 and below

1шт.

15

197525C1

SEAL

feeder door, serial no 19001 and above

1шт.

187166C1

RIVET

door seal

10шт.

16

154971C1

ANGLE

feeder door spring

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 slt-rd-hd

2шт.

17

179274C1

COVER, feeder side

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1/2 hex

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

177672C2

SECTION ASSY, feeder false, not 34 inch or track

1шт.

18

177677C2

SECTION ASSY, feeder false 34 inch tires or track

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

10шт.

164191R1

SCREW

5/16 x 1-1/2 flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

10шт.

19

176530C1

BRACKET ASSY, header lift

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 crg type 5

6шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

6шт.

20

180151C91

PACKAGE, feeder front filler, not draper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-trus-hd

4шт.

21

175956C1

COVER

front lower, not draper

1шт.

21

197870C1

LID

COVER, front lower, for draper and track

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

22

367833R1

SPRING

latch rod

2шт.

23

177138C1

ROD

feeder latch

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 nylon insert

2шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06

4шт.

24

179024C1

HINGE

HANDLE ASSY, feeder latch

2шт.

25

177141C1

PIN,15.88mm OD x 41mm L

latch pin

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

21471R1

WASHER

21/32 x 1 x 1 ga.

4шт.

26

175913C1

ANGLE

feeder adapter LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

495-11053

WASHER,1/2", SAE

.53 x 1.06 x .10 ga

2шт.

27

175914C1

ANGLE

feeder adapter RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

495-11053

WASHER,1/2", SAE

.53 x 1.06 x .10 ga

1шт.

28

175908C1

DEFLECTOR

ASSY, feeder front LH, not for draper

1шт.

28

197859C1

DEFLECTOR

ASSY, feeder front LH, for draper

1шт.

29

175909C1

DEFLECTOR

ASSY, feeder front RH, not for draper

1шт.

29

197860C1

DEFLECTOR

ASSY, feeder front RH, for draper and track

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

5шт.

30

175953C1

STRAP

STRIP, front cover back, not for draper

1шт.

30

197866C1

BAR

STRIP, front cover back, for draper and track

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 slt-truss-hd

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

7шт.

31

175918C1

COVER

feeder adapter, not draper

1шт.

31

197868C1

LID

COVER, feeder adapter, draper and track

1шт.

32

179663C2

CHANNEL, stand lock

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

1шт.

33

179660C1

TUBE ASSY, feeder safety stand

1шт.

34

164533C1

PIN

safety stand anchor

1шт.

517843C1

PIN, 3/16 qa cotter

1шт.

35

187154C91

PIPE, safety stand anchor

1шт.

517843C1

PIN, 3/16 qa cotter

1шт.

103411

SPLIT (COTTER), 3/16" x 2"

1шт.

36

197881C2

FILLER

feeder front LH, for draper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

2шт.

37

197882C2

FILLER

feeder front RH, for draper

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

2шт.

38

197935C1

SUPPORT, feed bottom stiffener, serial no 19001 and above

1шт.

39

197524C1

STRAP

STRIP, seal spacer

1шт.
