Запчасти Case IH 915 (10-44) - HYDRAULICS, STEERING VALVE (07) - HYDRAULICS

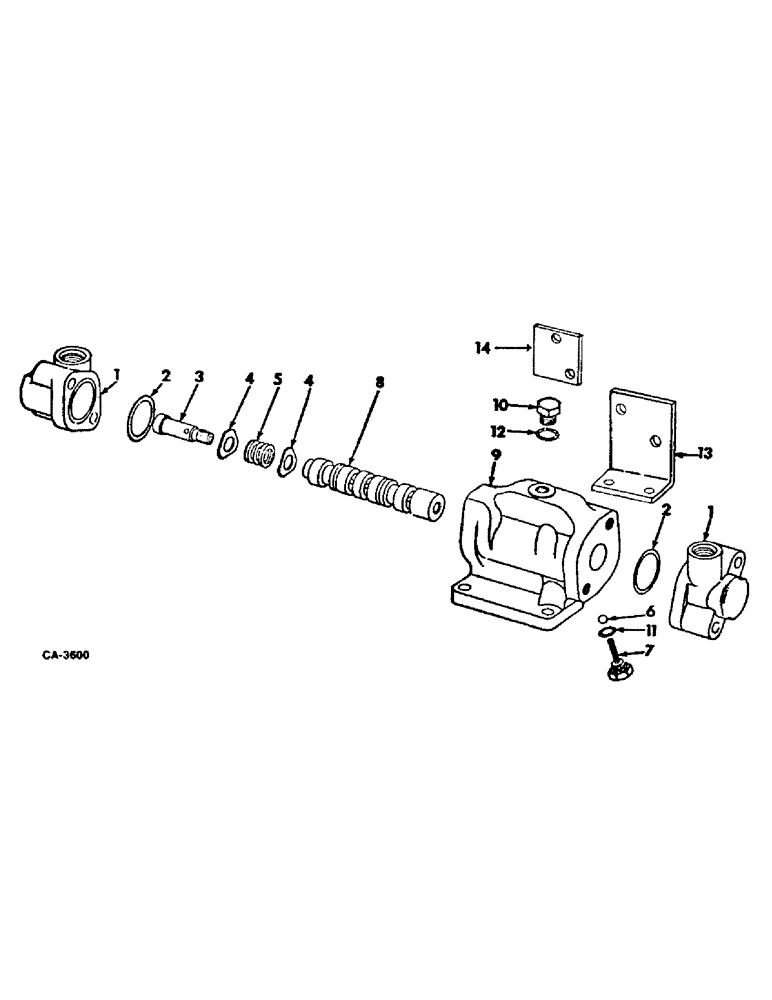

Схема запчастей Case IH 915 - (10-44) - HYDRAULICS, STEERING VALVE (07) - HYDRAULICS
11
6
3
2
8
13
10
4
1
2
5
7
1
9
4
14
12

Артикул

Название

Примечание

Количество

171920C91

VALVE ASSY, steering, includes ref nos. 1 thru 12

1шт.

18762R1

BOLT, 3/8 x 2-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8 x 1-1/2 C-Z hex hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

379793R91

O-RING

KIT ASSY, repair

1шт.

1

379894R1

CAP

end

2шт.

2

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, end cap

2шт.

3

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

spring centering

1шт.

4

379897R1

WASHER

centering screw

2шт.

5

395754R1

SPRING

valve centering

1шт.

6

16008R1

BALL,1/4" Dia, Steel

1/4 dia

1шт.

7

379901R91

PLUG

ASSY

1шт.

8

SPOOL, not serviced separately order 171920C91 valve assy

1шт.

9

BODY ASSY, not serviced separately order 171920C91 assy

1шт.

10

9410357

PLUG

o-ring boss

1шт.

11

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Boss plug

1шт.

12

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Boss plug

1шт.

13

178043C1

ANGLE, steering valve

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 1-1/2 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd lock

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

161149C1

STRAP, steering valve rubber

1шт.

Выбрано товаров: 25
