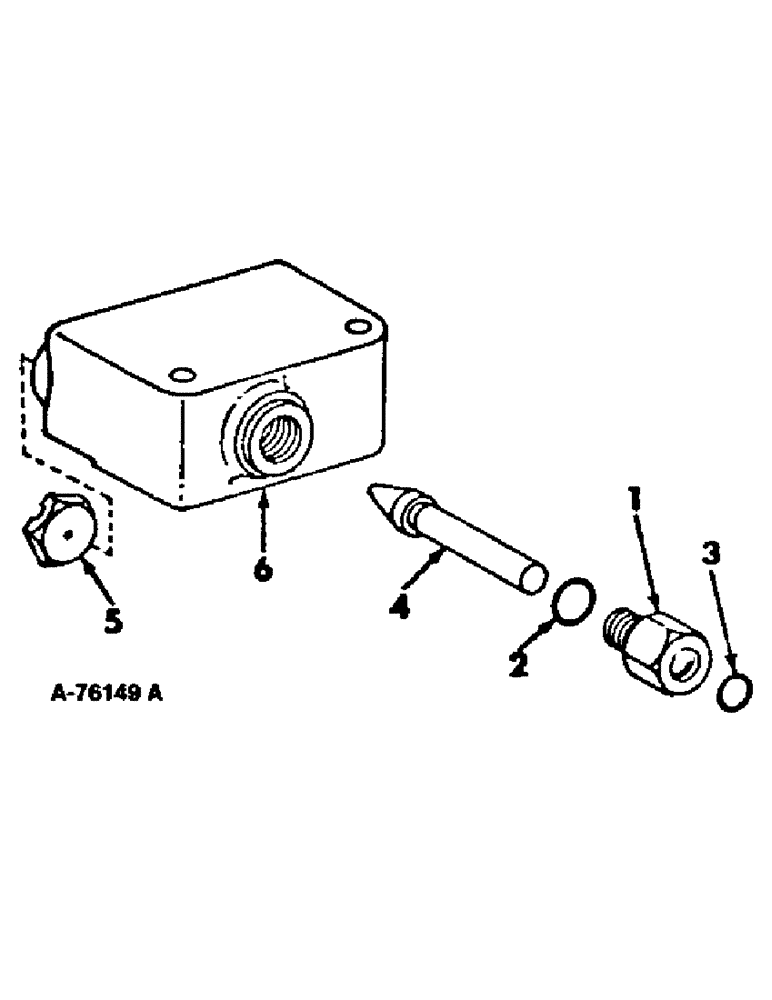

Запчасти Case IH 915 (10-39) - HYDRAULICS, HEADER AUTOMATIC FLOW CONTROL VALVE (07) - HYDRAULICS

155199C91

VALVE

ASSY, header automatic control

1шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 so-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

1

937202R1

PLUG

metering pin

1шт.

2

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3/32 x 1/2 ID

1шт.

3

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/32 x 3/8 ID

1шт.

4

937204R1

PIN

metering

1шт.

5

937201R1

PLUG

VENT

1шт.

6

BODY, not serviced separately order 155199C91 valve assy

1шт.
