Запчасти Case IH 915 (10-36) - HYDRAULICS, FOOT-N-INCH CONTROL VALVE (07) - HYDRAULICS

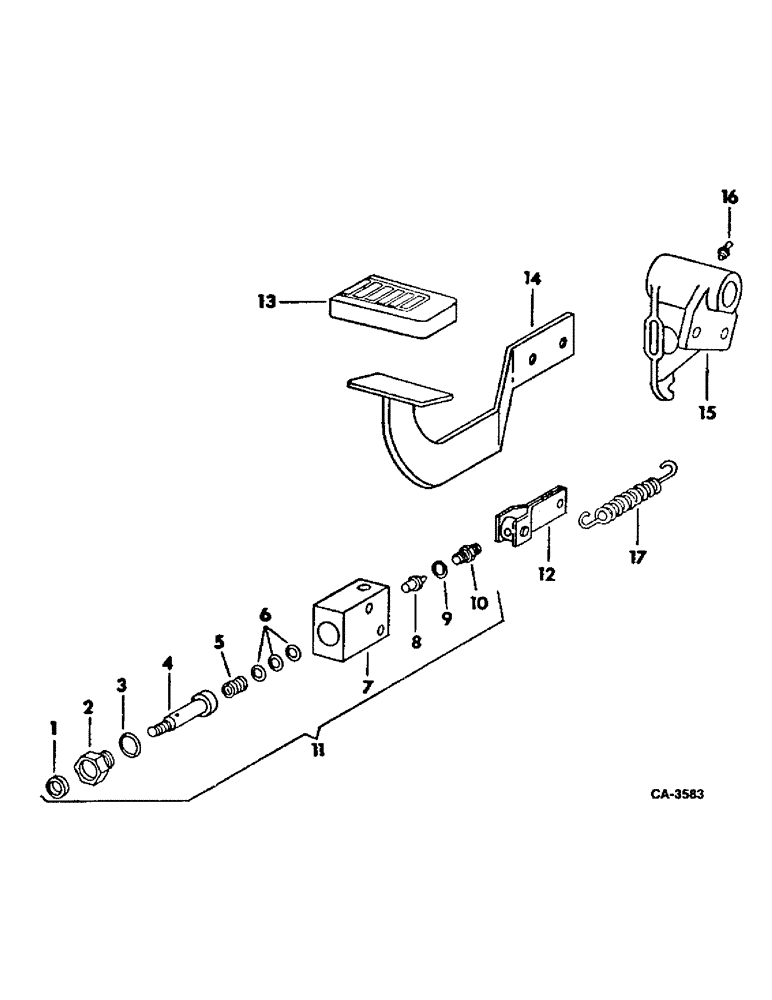

Схема запчастей Case IH 915 - (10-36) - HYDRAULICS, FOOT-N-INCH CONTROL VALVE (07) - HYDRAULICS
9
13
2
1
7
17
12
4
5
11
15
3
6
14
8
10
16

Артикул

Название

Примечание

Количество

1

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

OIL SEAL

1шт.

2

398707R11

GUIDE

ASSY, valve spring top, includes ref no 1

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

1шт.

4

398708R1

STOP

valve

1шт.

5

403434R1

SPRING

valve

1шт.

6

530575R91

SHIM KIT

PACKAGE, relief valve shims

1шт.

7

BODY, valve, order 403347R91 valve assy ref no 11

1шт.

8

398710R1

VALVE POPPET

VALVE, poppet

1шт.

9

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

10

398709R1

SEAT

poppet valve

1шт.

11

403347R91

LOCK VALVE

VALVE ASSY, foot-n-inch pilot relief

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120920

NUT, 5/16-NF jam type 5

1шт.

12

165504C91

YOKE

ASSY, foot-n-inch control valve

1шт.

23840R1

CLEVIS PIN,5/16" x 1 3/16"

PIN, CLEVIS, , Rod end hard 5/16" x 1 3/16"

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

863426R1

PAD

foot-n-inch control pedal rubber

1шт.

14

165505C91

LEVER ASSY, foot-n-inch control

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

164779C1

PIVOT, foot-n-inch pedal support

1шт.

16

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF 45 deg angle lub

1шт.

17

635503R1

SPRING,148.8mm Free Length

foot-n-inch pedal return

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

Выбрано товаров: 28
