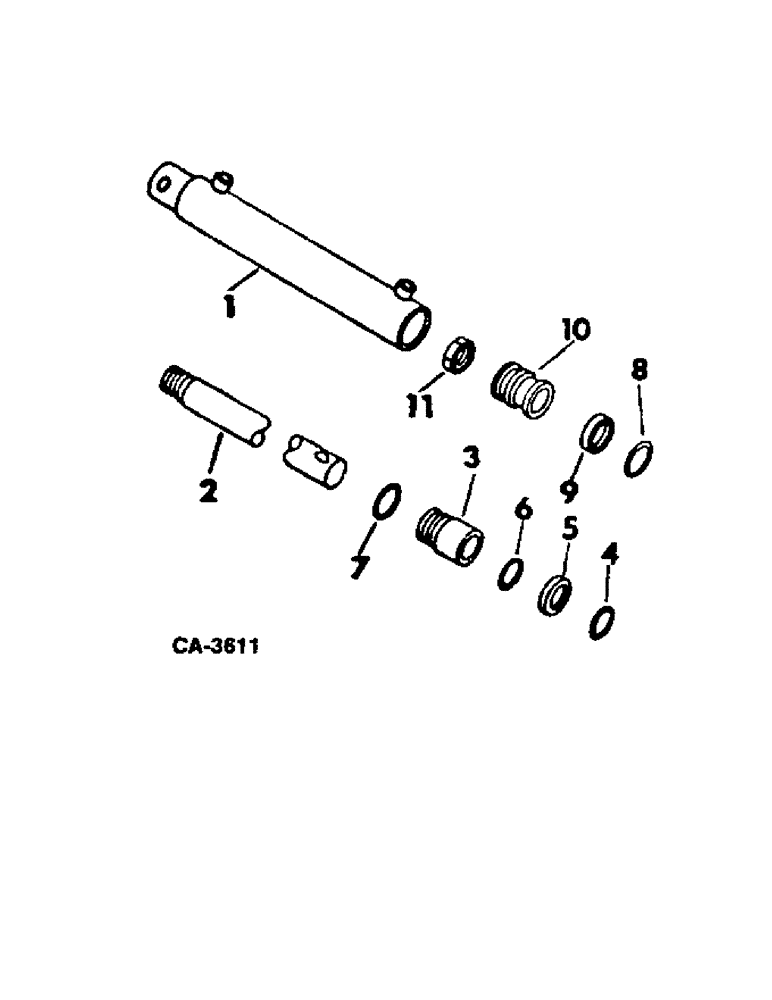

Запчасти Case IH 915 (10-34) - HYDRAULICS, MASTER CYLINDER, FOR USE WITH REEL LIFT (07) - HYDRAULICS

547358R91

CYLINDER

ASSY, master, includes ref nos. 1 thru 11

1шт.

1

547328R1

NO LONGER SERVICED

BODY, cylinder

1шт.

2

547332R1

ROD

piston

1шт.

3

547384R1

CYLINDER HEAD

HEAD, front

1шт.

4

564808R1

WIPER, rod

1шт.

5

547385R1

WASHER

backup

1шт.

6

343905R1

O-RING,1.109" ID x 0.139" Width

1шт.

7

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1шт.

8

378031R1

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1шт.

9

547383R1

SEAL

piston

1шт.

10

547333R1

PISTON

1шт.

11

548033R1

JAM NUT

NUT

1шт.

547388R91

PACKAGE, REPAIR

KIT, hyd cylinder service, consists of o-ring 378031R1, seal 547383R1, o-ring 381885R1, o-ring 343905R1, washer 547385R1, wiper 546808R1, o-ring 327110R1, washer 545712R1, o-ring 381082R1, washer 381083R1, wiper 545713R1, retainer 545714R1, stop 545710R1

1шт.
