Запчасти Case IH 915 (10-34[A]) - HYDRAULICS, SLAVE CYLINDER, FOR USE WITH REEL LIFT (07) - HYDRAULICS

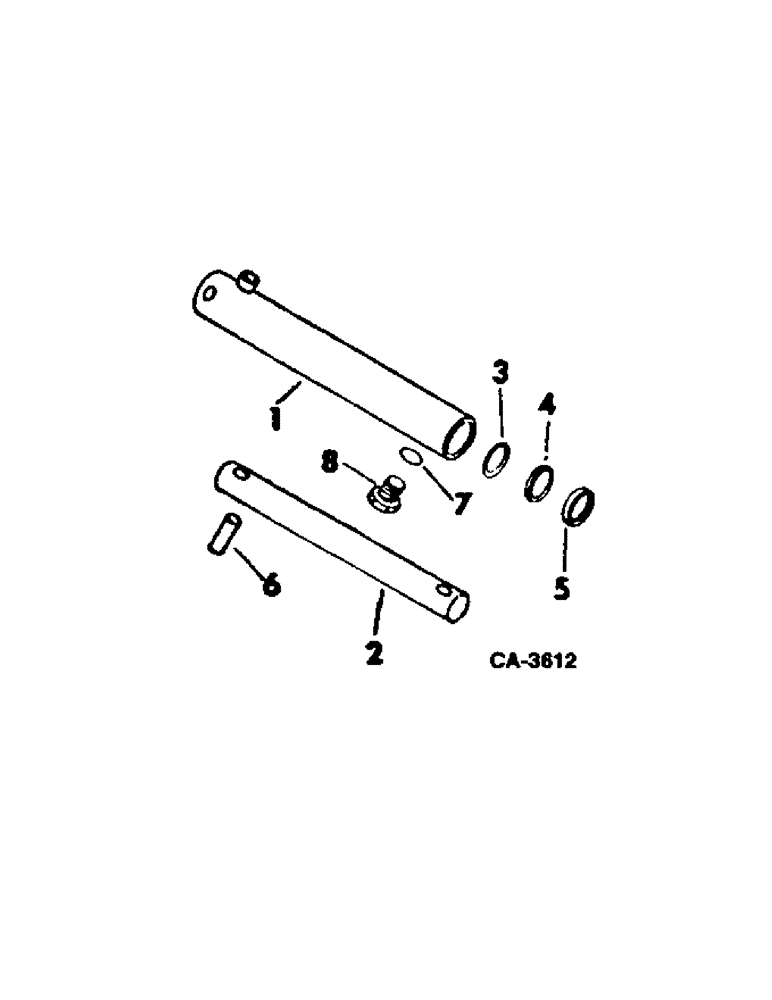

Схема запчастей Case IH 915 - (10-34[A]) - HYDRAULICS, SLAVE CYLINDER, FOR USE WITH REEL LIFT (07) - HYDRAULICS
2
3
1
7
8
6
5
4

Артикул

Название

Примечание

Количество

532763R91

CYLINDER

ASSY, slave, includes ref nos. 1 thru 8

1шт.

1

532765R1

BODY

ASSY

1шт.

2

532771R1

ROD

piston

1шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

4

532854R1

SEAL,25.17mm ID x 31.52mm OD x 1.32mm Thk

backup

1шт.

5

532773R1

WIPER SEAL

WIDER, rod

1шт.

6

532774R1

PIN

stop

1шт.

7

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

rubber bounded

1шт.

8

24535R1

SCREW

no 10-24 x 1/2 znd hex-hd mach

1шт.

532531R91

PACKAGE, REPAIR

KIT, hyd cylinder service, consists of, o-ring 380794R1, washer 832854R1, wiper 532773R1, washer 533145R1

1шт.

Выбрано товаров: 10
