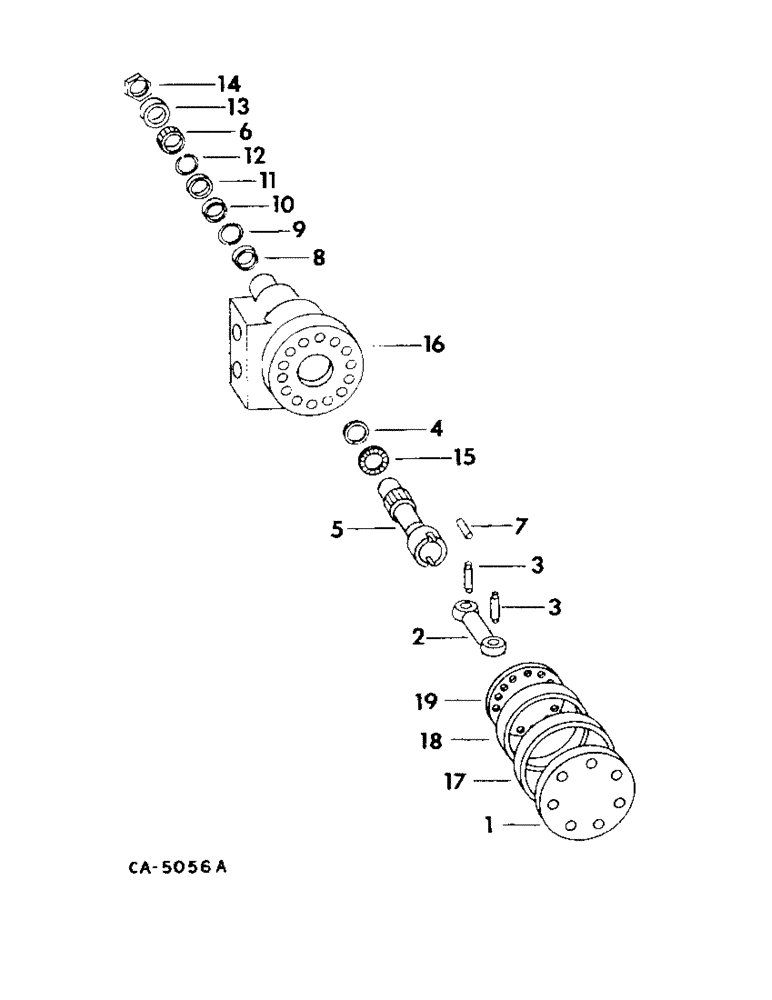

Запчасти Case IH 915 (10-33) - HYDRAULICS, STEERING HAND PUMP (07) - HYDRAULICS

160454C91

PUMP ASSY, steering hand

1шт.

1

379698R1

COVER

end

1шт.

180087

SPRING

SCREW, 5/16 x 2 hex-hd cap

7шт.

2

379701R1

LINK

pump

1шт.

3

379693R1

PIN

2шт.

4

379785R1

THRUST WASHER

RACE, needle thrust

1шт.

5

379784R1

SHAFT

coupling

1шт.

6

10026R1

BEARING

ASSY, needle

1шт.

7

379700R1

PIN

spool

1шт.

8

PACKING, shaft, not serviced separately order 535122R91 package

1шт.

9

RING, backup, not serviced separately order 535122R91 package

1шт.

10

RING, nylon, not serviced separately order 535122R91 package

1шт.

11

373005R1

RING

backup

1шт.

12

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

13

376481R1

GASKET

BUSHING, felt

1шт.

14

F19646

LOCK NUT,13/16"-20, Thin

NUT, wheel

1шт.

15

379783R91

THRUST BEARING

BEARING ASSY, needle thrust

1шт.

16

BODY, pump, not serviced separately order 160454C91 pump assy

1шт.

68201C2

SEAL KIT

PACKAGE ASSY, steering hand pump

1шт.

17

379696R1

RING

RETAINER, seal

1шт.

18

379781R1

BOOT

SEAL, rotor

1шт.

19

396545R1

PLATE

SPACER

1шт.
