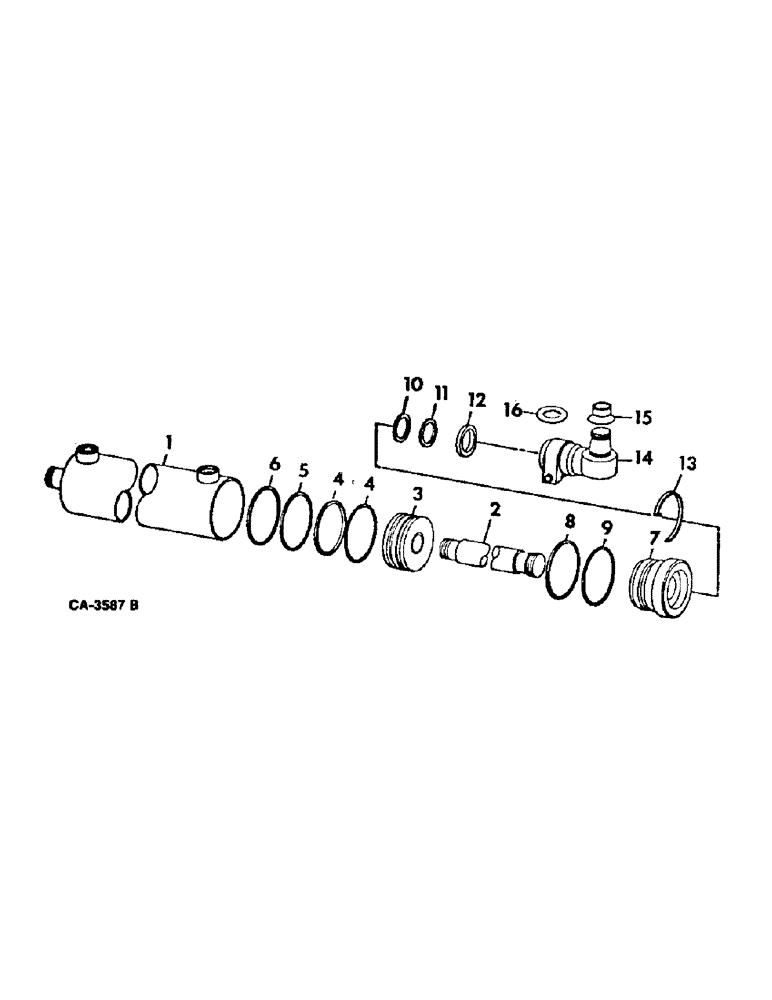

Запчасти Case IH 915 (10-32) - HYDRAULICS, STEERING CYLINDER (07) - HYDRAULICS

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSY, steering, includes ref nos 1 thru 13

1шт.

548357R91

SEAL KIT

ASSY

1шт.

1

548248R1

BODY

ASSY, cylinder

1шт.

2

548251R1

ROD

piston

1шт.

232-4609

LOCK NUT,9/16"-18, GC

NUT, 9/16-18 cad torque lock

1шт.

3

548252R1

PISTON

cylinder

1шт.

4

327085R1

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1-9/16 x 1-3/4 x 3/32

1шт.

5

327220R1

RING, retaining

1шт.

6

548253R1

BEARING WASHER

brg piston

2шт.

7

548354R1

HEAD

front

1шт.

8

461173R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16

1шт.

9

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

backup

1шт.

10

23907R1

O-RING,-212, 90 Duro, .859" ID x .139" Thk

1шт.

11

548355R1

WASHER

backup

1шт.

12

548358R1

SEAL, rod wiper

1шт.

13

461180R1

RETAINER

RING, retaining

1шт.

14

157432C91

SOCKET

ASSY, steering cylinder end

2шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-18 znd slt hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

15

382562R1

SEAL

steering cylinder end socket

2шт.

16

464623R1

WASHER

0.66 x 1.5 x .015

1шт.
