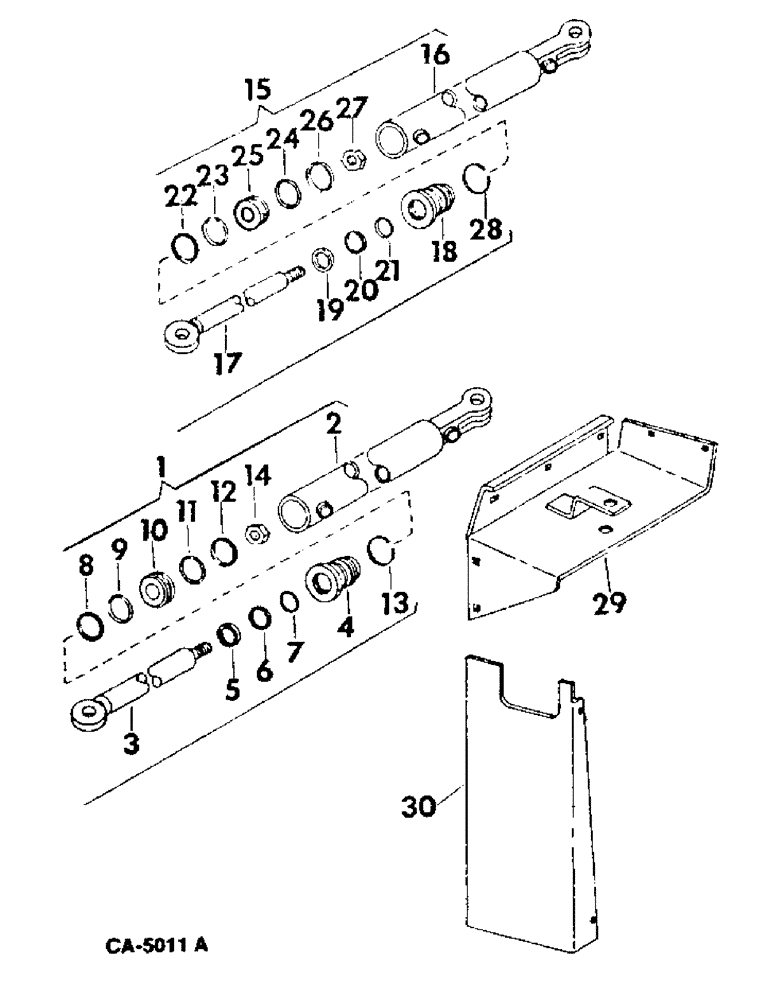

Запчасти Case IH 915 (10-31) - HYDRAULICS, GRAIN TANK UNLOADER SWING CYLINDER (07) - HYDRAULICS

1

108993C1

CYLINDER ASSY, grain tank unloader tube swing

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

21890R1

PIN, 5/8 x 1-3/4 std-hd dld

1шт.

21933R1

PIN

5/8 x 2.500 hd type 1

1шт.

62240C91

GASKET KIT

KIT ASSY, hydraulic cylinder service, for 108993C91 cylinder, consists of (1) wiper 108999C1, (1) washer 108997C1, (1) o-ring 391912C1, (1) washer 108998C1, (1) o-ring 362796R1, (1) retainer 532530R2, (1) o-ring 346959R1, (1) o-ring 532529R1

1шт.

2

60049C91

BODY ASSY, hydraulic cylinder

1шт.

3

108994C1

ROD

ASSY, piston

1шт.

4

108996C1

CYLINDER HEAD

HEAD, piston

1шт.

5

108999C1

WIPER SEAL

WIPER, rod

1шт.

6

108997C1

WASHER

WASHER, back up

1шт.

7

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32, piston rod

2шт.

8

108998C1

WASHER

WASHER, back up

1шт.

9

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1-1/6 x 1-1/4 x 3/16 class 6

1шт.

10

532528R1

PISTON

hydraulic cylinder

1шт.

11

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/16 class, piston

1шт.

12

532529R1

O-RING

RING, square

1шт.

13

532530R2

RETAINER

front head

1шт.

14

9413215

LOCK NUT,7/16"-20, GC

NUT, 7/16-20 torque type hex lock

1шт.

15

60048C91

CYLINDER

ASSY, grain tank unloader tube swing, order 108993C1 cylinder ref no 1

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

21890R1

PIN, 5/8 x 1-3/4 std-hd dld

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 5/8 x 2-1/2 std-hd dld

1шт.

532775R91

KIT

ASSY, hydraulic w/60048C91 cylinder consists of, (1) wiper 532784R1, (1) washer 532642R1, (1) o-ring 602271R1, (1) washer 532619R1, (1) o-ring 362796R1, (1) retainer 532530R2, (1) sq ring 532529R1, (1) o-ring 380794R1

1шт.

16

60049C91

BODY ASSY, hydraulic cylinder

1шт.

17

60051C91

ROD ASSY.

ROD ASSY, piston

1шт.

18

532783R1

NO LONGER SERVICED

HEAD, piston

1шт.

19

532784R1

SEAL

WIPER. rod

1шт.

20

532642R1

WASHER

backup

1шт.

21

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

22

532619R1

WASHER

backup

1шт.

23

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

24

362796R1

O-RING,0.924" ID x 0.103" Width

WASHER, backup

1шт.

25

532528R1

PISTON

hydraulic cylinder

1шт.

26

532529R1

O-RING

RING, square

1шт.

27

9413215

LOCK NUT,7/16"-20, GC

NUT, 7/16-20 torque

1шт.

28

532530R1

RETAINER

front shield

1шт.

29

178358C1

ANCHOR ASSY, unloader tube swing cyl

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

30

179945C1

BRACKET

SHIELD, unloader tube swing cyl

1шт.
