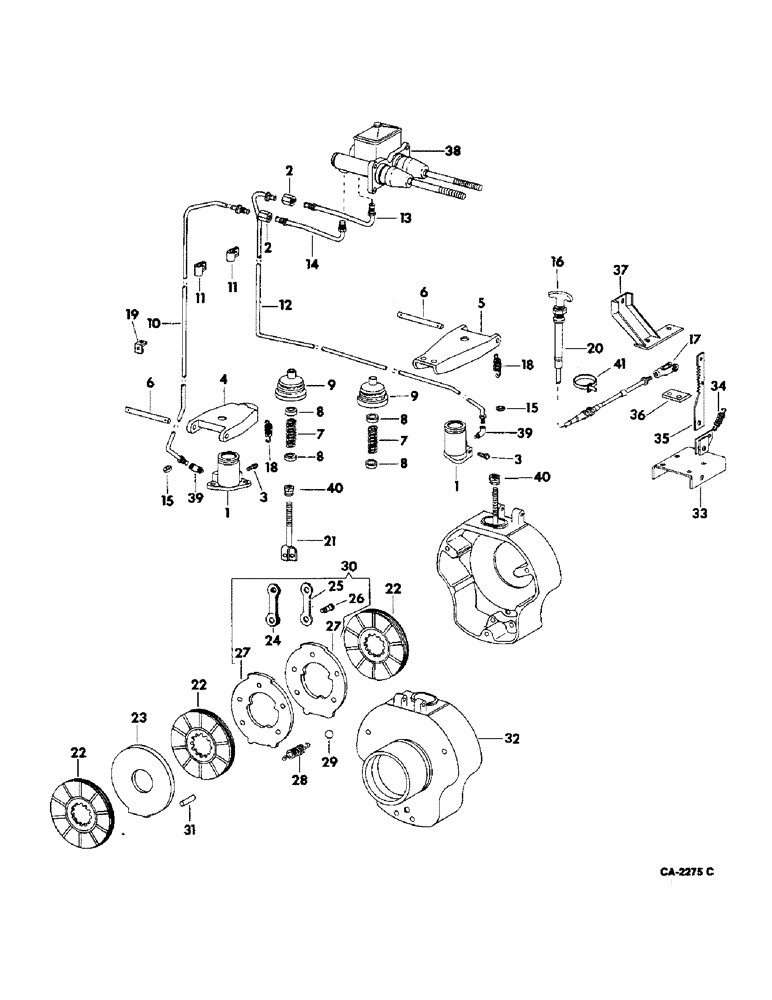

Запчасти Case IH 915 (10-26) - HYDRAULICS, TRANSMISSION AND PARKING BRAKES (07) - HYDRAULICS

1

CYLINDER, wheel brake

1шт.

167691C91

PACKAGE, REPAIR

KIT ASSY, wheel brake cylinder, consists of (1) cylinder, (1) piston, (1) boot, (1) plunger, (1) spring, (1) spacer, (2) cups

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4

4шт.

120376

NUT,5/16"-18, G5

4шт.

120124

SCREW,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

WASHER, 5/16 med lock

4шт.

615855R1

WASHER, 11/32 x 3/4 x 16 ga

4шт.

2

442336

SUPPORT TUBE

UNION, 7/16, 24, 2

1шт.

3

660901R1

VALVE

wheel cylinder bleeder

2шт.

4

162328C2

LEVER

left wheel brake cylinder

1шт.

5

165260C2

LEVER

right wheel brake cylinder

1шт.

6

162329C1

PIN

wheel brake lever

2шт.

648002

KNIFE

1/8" x 3/4"

4шт.

7

662612R1

SPRING

wheel brake clip

2шт.

8

51906H

CUP

wheel brake cylinder piston rubber

4шт.

9

381699R1

BOOT

wheel brake housing

2шт.

10

TUBE ASSY, LH brake, use 53-1/4 in of 1/4 OD steel tubing from 25-ft roll marked 990094C1 and two 142432 nuts

1шт.

11

573674R1

CLIP

CLAMP, hyd tube 1/4 OD

2шт.

587501R2

CLAMP

hyd tube 1/2 OD

2шт.

12

TUBE ASSY, RH brake, use 60 inches of 1/4 OD steel tubing from 25-ft roll marked 990094C1 and two nuts 142432

1шт.

13

TUBE ASSY, RH brake cyl to fitting, use 9 inches of 1/4 OD steel tubing from 25-ft roll marked 990094C1 and two nuts 142432

1шт.

14

TUBE ASSY, LH brake master cyl to fitting, use 9 in of 1/4 in OD steel tubing from a roll marked 990094C1 and two nuts 142432

1шт.

15

140711

GROMMET,1/4" ID x 5/8" x .188", Str Cut

rubber brake cyl to tube

1шт.

16

170273C1

HANDLE

brake control

1шт.

17

110322

CLEVIS, no 32 adj rod end

1шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

20286R1

SPLIT PIN/SAFETY PIN

PIN, 3/16 x 1-3/32 rod end

1шт.

18

168567C1

SPRING

brake return

2шт.

19

154971C1

ANGLE

tube clip

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

20

166149C91

CABLE

ASSY, parking brake 125 inches

1шт.

21

162323C91

ROD

ASSY, brake pull (Replaces 162323C1)

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

103498

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 drilled

2шт.

LEC271506

SHIM

7/16-NF type 5

2шт.

22

121963C91

BRAKE DISC

DISC ASSY, middle (Replaces 121936C91)

6шт.

23

401870R1

DISC

intermediate

2шт.

24

369237R1

LINK

plain

2шт.

25

369237R1

LINK

plain

2шт.

26

369238R1

BOLT,3/8" - 24 x 1 3/8", HT

STOD

4шт.

114494

NUT,Jam, 3/8"-24, G5

4шт.

27

Not serviced separately order assy 401868R91 ref no 30

1шт.

28

619731C1

SPRING

extension

6шт.

29

17028R1

BALL,7/8" Dia

10шт.

30

401868R91

BRAKE DISC

DISC ASSY, actuating, includes ref nos 24 thru 29

2шт.

31

22274R1

DOWEL,7/8" x 5"

PIN, 7/8 x 5 dowel

2шт.

32

404088R2

HOUSING

brake

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8 x 2-1/4 hex-hd cap

7шт.

21398R1

SCREW

5/8 x 2-1/4 hex-hd cap

1шт.

27434R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 phc p/t type 8

1шт.

33

165249C91

SUPPORT ASSY, parking brake ratchet

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

137159

COTTER PIN

3/32" x 5/8"

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 rod end

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

271199R1

SPRING

parking brake ratchet

1шт.

35

165235C1

SECTOR, parking brake ratchet

1шт.

36

165222C1

BAR

parking brake ratchet

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

37

165246C91

SUPPORT ASSY, parking brake cable

1шт.

38

CYLINDER ASSY, brake master, refer to this group under wheel brake lever pedal and master brake for unit listing

1шт.

39

225810

ELBOW UNION

ELBOW, 90 deg

2шт.

40

354630R1

NUT

brake pull rod

1шт.

41

702093C1

CABLE TIE

STRAP, cable tie

1шт.
