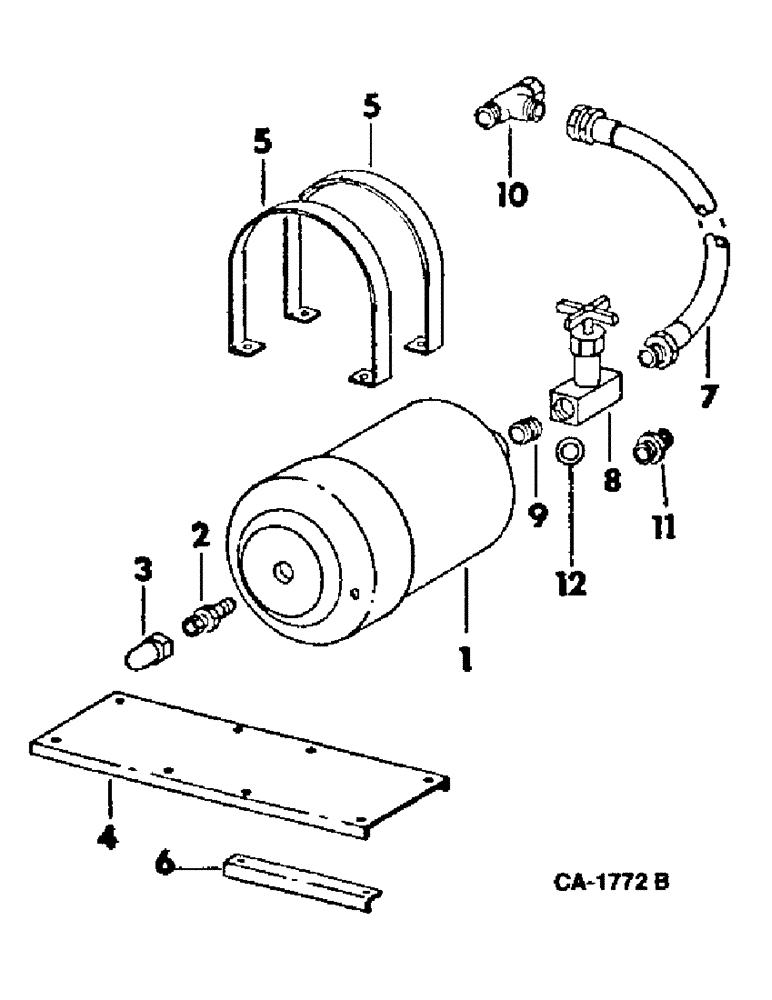

Запчасти Case IH 915 (10-23) - HYDRAULICS, ACCUMULATOR (07) - HYDRAULICS

1

172129C1

ACCUMULATOR ASSY, includes ref nos 2 and 3

1шт.

1

196811C91

ACCUMULATOR

ASSY, includes ref. no. 2 & 3

1шт.

2

172130C91

VALVE

ASSY, accumulator tank

1шт.

3

172131C1

GUARD

accumulator tank valve

1шт.

4

172138C1

PLATE, accumulator support, serial no 19000 and below

1шт.

4

180245C1

CHANNEL

PLATE, accumulator support, serial no 19001 and above

1шт.

5

172133C1

SUPPORT

STRAP, accumulator mounting

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

6

172141C1

ANGLE, accumulator support plate, serial no 19000 and below

1шт.

6

180247C1

ANGLE, accumulator support plate, serial no 19001 and above

1шт.

27620R1

BOLT, 5/16 x 7-1/2 hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

7

172136C1

HOSE ASSY, accumulator 20 inches, serial no 19000 and below

1шт.

7

155225C91

HOSE ASSY.

HOSE ASSY, accumulator 29 inches, serial no 19001 and above

1шт.

8

172135C1

VALVE, accumulator line shut-off, not 22.5 ft. floating cutter bar

1шт.

8

195989C1

LOCK VALVE

VALVE, accumulator line shut-off, for 22.5 ft. floating cutter bar

1шт.

9

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 x 1-1/8 close pipe, for use with accumulator 172129C1, not 22.5 ft. floating cutter bar

1шт.

9

180669C1

ROD, CONNECTING

CONNECTOR, 5/8 tube x 1/2 pipe, for use with accumulator 196811C91, not 22.5 ft. floating cutter bar

1шт.

9

180669C1

ROD, CONNECTING

CONNECTOR, 5/8 tube x 1/2 pipe, for use with accumulator 172129C1, for 22.5 ft. floating cutter bar

1шт.

9

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 37 deg. hyd., for use with accumulator 196811C91, for 22.5 ft. floating cutter bar

1шт.

10

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 x 37 deg hyd flared swivel

1шт.

11

9402710

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 1/2 pipe to 5/8 tube, serial no 19001 and above

1шт.

11

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 37 deg hyd, for 22.5 ft. floating cutter bar

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/, tube

1шт.

180670C91

ACCUMULATOR SERVICE PACKAGE REPLACEMENT FOR 172129C1, part accessory, consists of ref. nos. 1, 196811C91, 9, 180669C1, 7, 11, 12 and isntruction manual 1012974R2

1шт.
