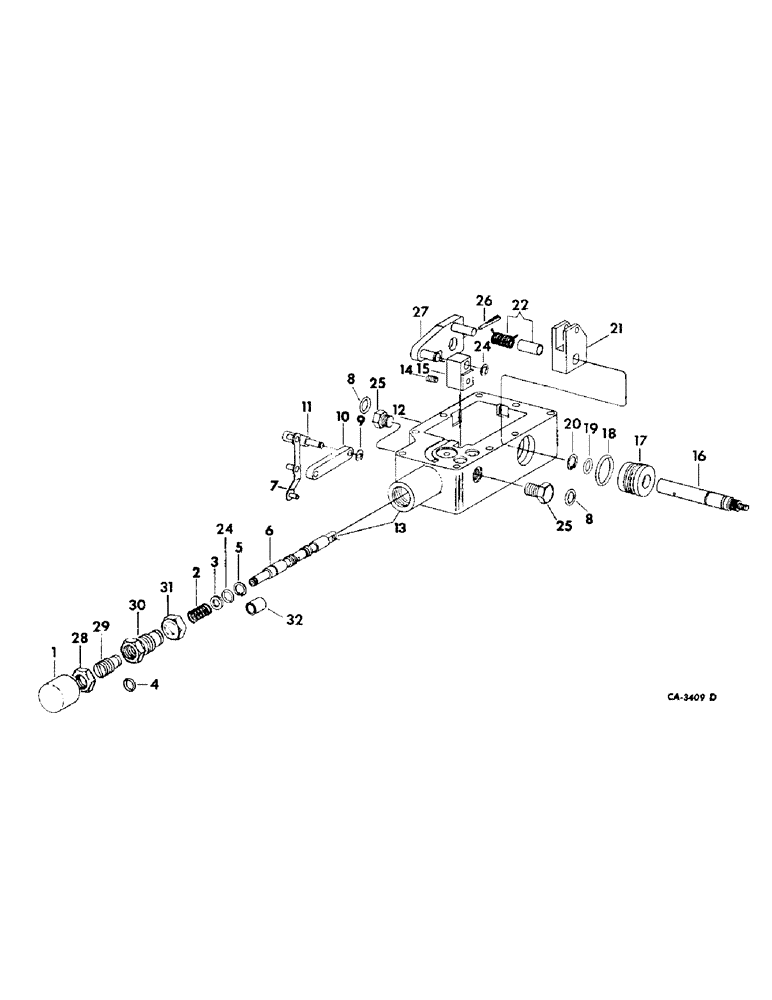

Запчасти Case IH 915 (10-22) - HYDRAULICS, CONTROL VALVE, HYDRO TRANS. PUMP (07) - HYDRAULICS

142880C91

VALVE

KIT, control vale. serial no. 19876 and above, replaces 128027C91

1шт.

142876C91

HYDRAULIC VALVE

KIT, control vale, serial no. 19875 and below, replaces 128032C91

1шт.

1

400546R1

COVER

centering spring housing

1шт.

2

527554R1

SPRING

CENTERING

1шт.

3

527553R1

SPRING WASHER

centering spring

2шт.

4

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

13/16 x 15/16 x 1/16 spring adjusting screw

1шт.

5

233045R1

SNAP RING,#25, Ext, Crescent

Ring, Snap, , Spring adjusting #25, Ext, Crescent

1шт.

6

VALVE SPOOL, not serviced separately order 533856R1 spool and housing kit

1шт.

7

128033C1

LINK ASSY.

LINK ASSY, control valve, for valve 533855R91 & 128032C91

1шт.

7

128028C1

LINK ASSY.

LINK ASSY, control valve, for valve 128027C91

1шт.

8

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

9

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , control valve link #25, Ext, E-Type

1шт.

10

120029C1

SUPPORT

CONNECTOR, control valve link, for valve 128027C91

1шт.

10

406904R1

ELEC CONNECTOR

CONNECTOR, control valve link, for valve 533855R91 & 128032C91

1шт.

11

406905R1

PIN

control valve handle shaft link

1шт.

12

VALVE HOUSING, not serviced separately order 533856R1 spool and housing kit

1шт.

13

533856R1

VALVE

KIT, control valve & spool

1шт.

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

SCREW, 1/4-20 x 2-1/4

9шт.

385180R1

WASHER

9/32 x 1/2 x .065

9шт.

14

(Not used this application)

1шт.

15

(Not used this application)

1шт.

16

394228R1

SHAFT

control valve handle

1шт.

17

404711R1

BUSHING

control shaft

1шт.

18

23178R1

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

-023, 70 Duro, 1.051" ID x .070" Thk

1шт.

19

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, control valve handle shaft

1шт.

20

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, , control valve handle #50, Ext, Crescent

1шт.

21

406903R1

LINK

control valve handle shaft

1шт.

22

71923C91

KIT

sleeve & spring

1шт.

23

370920R2

O-RING, 1/2 x 5/8 x 1/16, centering spring housing

1шт.

24

(Not used this application)

1шт.

25

9410356

PLUG

7/16-20 str thd o-ring boss

2шт.

26

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

27

394232R1

ARM

ACTUATOR, control valve spring

1шт.

28

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex jam

1шт.

29

394224R1

SCREW,Sl, 3/4" - 16 x 1.56"

centering spring adjusting

1шт.

30

394222R1

HOUSING

centering spring

1шт.

31

394223R1

LOCK NUT

centering spring housing

1шт.

32

394227R1

SLEEVE

centering spring

1шт.
