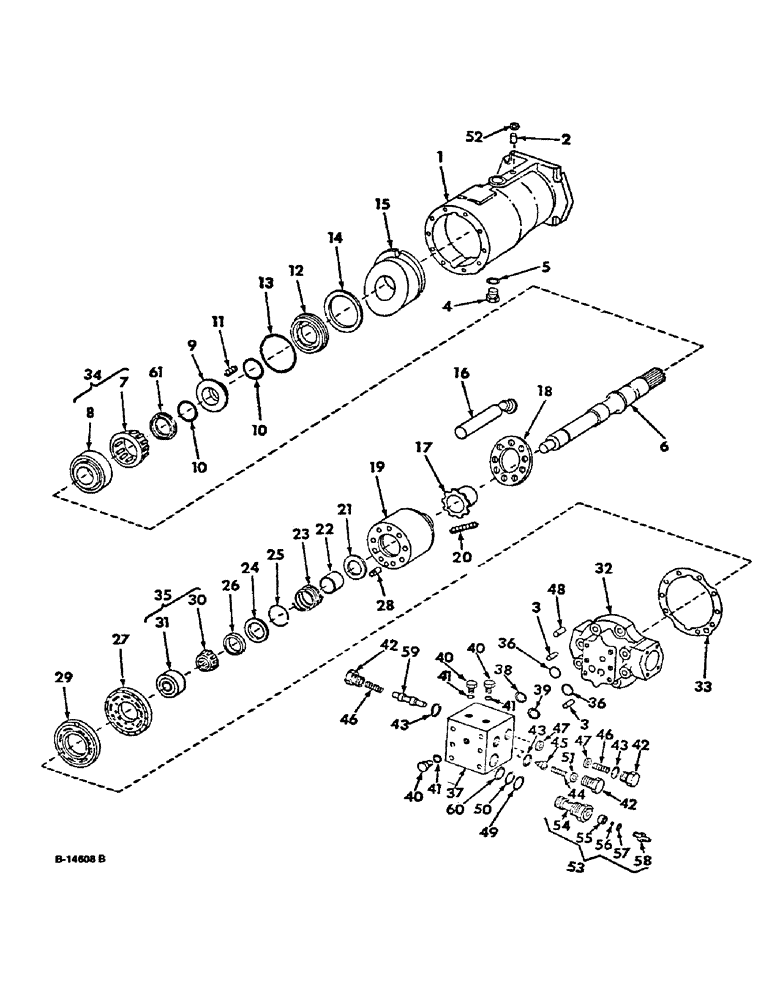

Запчасти Case IH 915 (10-20) - HYDRAULICS, HYDROSTATIC MOTOR (07) - HYDRAULICS

67799C91

REMAN-HYDROSTAT MOTO

MOTOR ASSY, hydrostatic, For N.A. Only

1шт.

1949111C1

CORE-HYDROSTAT MOTOR

Return Number, For N.A. Only

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

1

405148R1

HOUSING

hyd motor

1шт.

444687

PLUG,Hex Soc, 1/8"-27

Pipe Hex Soc, 1/8"-27

1шт.

2

20020R1

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel

1шт.

3

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1 dowel

1шт.

4

9410360

PLUG

7/8-14 C-Z str-thd

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

6

405149R1

SHAFT

hyd motor drive

1шт.

7

BEARING ASSY, drive shaft front cone, not serviced separately order bearing assy, 405186R91

1шт.

8

BEARING ASSY, drive shaft front cup, not serviced separately order bearing assy, 405186R91

1шт.

9

SEAL, housing, not serviced separately order o-ring and seal package 405125R92

1шт.

10

26079R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2 x 2-3/16 x 3/32

2шт.

11

393882R1

SPRING

drive shaft face

8шт.

12

405126R1

RETAINER

ASSY, drive shaft

1шт.

13

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3-1/2 x 3-3/4

1шт.

14

22325R1

SNAP RING,3.875", Int, #387

Ring, Snap, , drive shaft face 3.875", Int, #387

1шт.

15

405150R1

PLATE

SWASHPLATE, hyd motor

1шт.

16

71605C1

PISTON ASSY.

PISTON ASSY, cylinder block

9шт.

17

405132R1

GUIDE

cyl block piston

1шт.

18

405133R1

RETAINER

cyl block piston

1шт.

19

133790C91

KIT

BLOCK ASSY, piston cyl

1шт.

20

67822C1

SPRING

slipper retainer

6шт.

21

405136R1

SEAT

piston cyl block spring

1шт.

22

405137R1

GUIDE

BUSHING, drive shaft rear spring

1шт.

23

532303R2

SPRING

cyl block

1шт.

24

405139R1

RETAINER

drive shaft rear spring

1шт.

25

558383R1

SNAP RING,#250, 2.606, Int, Spiral

RING, drive shaft rear spring

1шт.

26

405140R1

RING

cyl block brg plate pilot

1шт.

27

405141R1

PLATE

cyl block brg

1шт.

28

527636R1

PIN

cylinder block brg plate

1шт.

29

530773R1

PLATE

cyl block valve

1шт.

30

BEARING ASSY, drive shaft rear pilot cone, not serviced separately order bearing assy 405152R91

1шт.

31

BEARING ASSY, drive shaft rear pilot cup, not services separately order bearing assy 405152R91

1шт.

32

530734R1

COVER

motor bearing rear end

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

4шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, 7/16-14 x 3-1/4 hex-hd cap

4шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

8шт.

33

405147R1

GASKET

motor rear end

1шт.

34

405186R91

BEARING ASSY,2" ID x 4" OD x 1.378"

ASSY, drive shaft front

1шт.

35

405152R91

BEARING ASSY,1.1875" ID x 2.5317" OD x 0.8468, 0.6563"

ASSY, drive shaft rear pilot

1шт.

36

393886R1

WASHER

WASHER, manifold valve

2шт.

37

529426R1

HOUSING

manifold valve, includes ref no. 59

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

6шт.

394880R1

WASHER

11/32 x 19/32 x .083

6шт.

38

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 x 1 x 1/16

1шт.

39

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

2шт.

40

9410356

PLUG

7/16-20 C-Z str-thd

3шт.

41

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

42

394173R1

PLUG

manifold shuttle valve

3шт.

43

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

3шт.

44

531174R1

SPRING

manifold relief valve

1шт.

45

531175R1

PISTON

manifold relief valve

1шт.

46

394176R1

SPRING

manifold shuttle valve

2шт.

47

394177R1

WASHER

manifold shuttle valve

2шт.

48

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel end cover to valve plate

1шт.

49

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64

2шт.

50

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

2шт.

51

394279R91

KIT

PACKAGE, relief valve shim

1шт.

52

405128R1

SHIM

motor shaft rear

1шт.

53

402626R94

VALVE

ASSY, high pressure relief, includes ref nos. 54 thru 58

2шт.

54

BODY, not serviced separately order 402626R92 valve assy

1шт.

55

402629R1

BUSHING

ball guide

1шт.

56

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

1шт.

57

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

58

402630R2

CONNECTOR, ELEC

CONNECTOR, 37 deg flared tube special

1шт.

59

SPOOL, shuttle valve, not serviced separately order housing 529426R1

1шт.

60

393887R1

BACK-UP RING

RING, relief valve back-up

4шт.

61

SEAL, shaft, not serviced separately order, o-ring and seal package 405125R92

1шт.

62

166506C1

GASKET,0.81mm Thk

hydrostatic ground motor

1шт.

393884R91

KIT

PACKAGE, manifold valve housing seal composed of (2) o-ring 610547C1, (2) o-rings 383219C1, (2) washers 393886R1

1шт.

405125R92

PACKAGE

o-ring and seal, composed of (1) seal (NSS), (1) seal (NSS), (2) o-ring 26079R1 (1) o-ring 610411C1, (6) spring 393882R1

1шт.

394171R91

VALVE

ASSY, manifold, consists of ref nos 37, 40, 42 thru 46 and 51

1шт.
