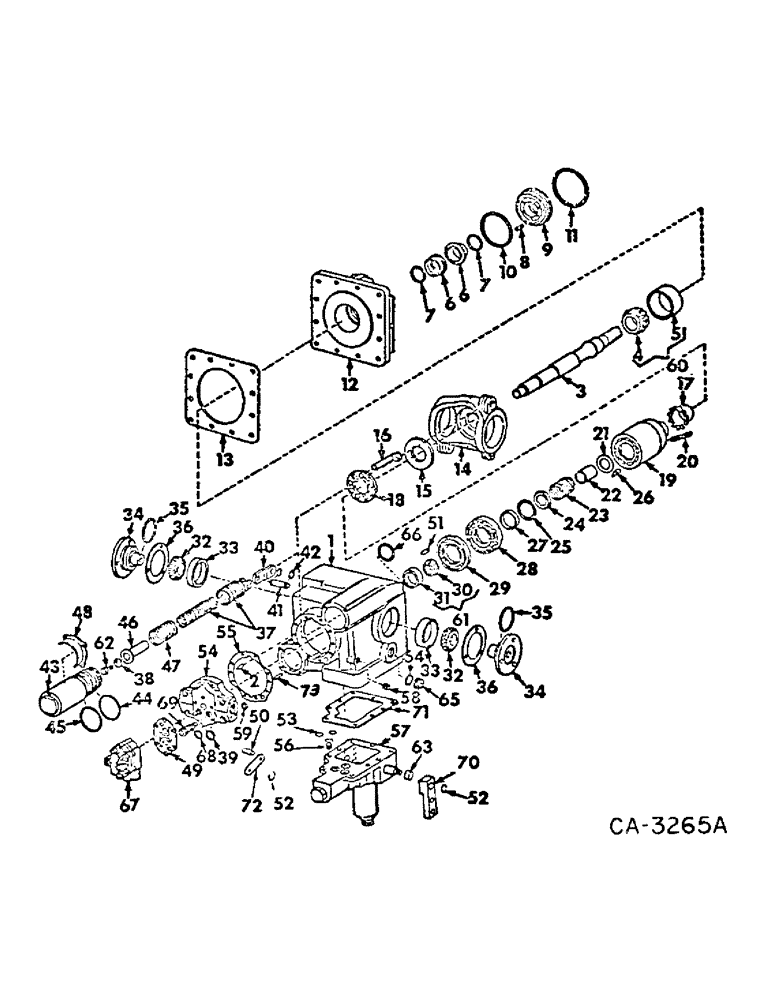

Запчасти Case IH 915 (10-18) - HYDRAULICS, HYDROSTATIC PUMP (07) - HYDRAULICS

67797C92

REMAN-HYD PUMP

PUMP ASSY, hydrostatic transmission

1шт.

1949109C1

CORE-HYDRAULIC PUMP

Return No PUMP - for N.A. Only

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

1

72885C1

HOUSING, transmission pump

1шт.

2

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel

4шт.

3

405124R1

SHAFT, pump drive

1шт.

4

CONE, drive shaft bearing, not serviced separately order 405186R91 bearing assy

1шт.

5

CUP, drive shaft bearing, not serviced separately order 405186R91 bearing assy

1шт.

6

SEAL, shaft, not serviced separately order o-ring and seal package 405125R92

1шт.

7

26079R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2 x 2-3/16 x 3/32, drive shaft face seal

2шт.

8

393882R1

SPRING

drive shaft face

8шт.

9

405126R1

RETAINER

ASSY, drive shaft face seal

1шт.

10

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3-1/2 x 3-3/4 x 1/8 1/8 face seal retainer

1шт.

11

22325R1

SNAP RING,3.875", Int, #387

Ring, Snap, , drive shaft face seal 3.875", Int, #387

1шт.

12

405127R1

COVER

transmission pump front

1шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

SCREW, 7/16 x 1-1/2 hex-hd cap

8шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

4шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

3шт.

13

405129R1

GASKET

transmission pump front cover

1шт.

14

405130R1

HOUSING

SWASHPLATE, transmission pump

1шт.

15

400965R3

PLATE

piston slipper thrust

1шт.

16

71605C1

PISTON ASSY.

PISTON ASSY, cyl block

9шт.

17

405132R1

GUIDE

cyl block piston slipper

1шт.

18

405133R1

RETAINER

cyl block piston slipper

1шт.

19

133790C91

KIT

BLOCK ASSY, piston cyl

1шт.

20

67822C1

SPRING

slipper retainer

6шт.

21

405136R1

SEAT

piston cyl block spring

1шт.

22

405137R1

GUIDE

BUSHING, drive shaft rear spring

1шт.

23

532303R2

SPRING

cyl block

1шт.

24

405139R1

RETAINER

drive shaft rear spring

1шт.

25

558383R1

SNAP RING,#250, 2.606, Int, Spiral

RING, drive shaft rear spring retainer snap

1шт.

26

527636R1

PIN

cyl block brg plate

1шт.

27

405140R1

RING

cyl block brg plate pilot

1шт.

28

405141R1

PLATE

cyl block brg

1шт.

29

530772R1

LARGE PLATE

PLATE, cyl block valve LH

1шт.

30

CONE, drive shaft pilot bearing, not serviced separately order 405152R91 bearing assy

1шт.

31

CUP, drive shaft pilot bearing, not serviced separately order 405152R91 bearing assy

1шт.

32

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING ASSY, swashplate cone

2шт.

33

ST977

TAPERED BEARING,1.7715" ID x 3.277" OD x 0.9575"

BEARING, swashplate cup

2шт.

34

405143R1

TRUNNION

swashplate brg

2шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

6шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

6шт.

35

254091R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2-3/4 x 3 x 1/8, swashplate brg trunnion

2шт.

36

405144R1

SHIM

SET, swashplate brg trunnion gasket

1шт.

37

537761R1

PISTON

servo

2шт.

38

394207R1

WASHER

servo piston bolt

2шт.

39

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 tube relief valve plug

1шт.

40

549724R1

LINK

servo piston

2шт.

41

65797C1

PIN

servo piston link

2шт.

42

267805R1

RING

servo piston link

8шт.

43

403074R2

SLEEVE

servo piston

2шт.

44

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32, servo piston sleeve front

2шт.

45

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32

2шт.

46

394211R1

GUIDE

servo piston spring

2шт.

47

549726R1

SPRING

servo piston

2шт.

48

394213R1

RETAINER

servo piston

2шт.

536291R1

SCREW

10-24 x 3/8 cdp self-tap

4шт.

49

533858R1

GASKET

charge pump

1шт.

50

394215R1

PIN

control valve link front

1шт.

51

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel end cover to valve plate

1шт.

52

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , control valve link pin #25, Ext, E-Type

6шт.

53

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16 pump end cover

1шт.

54

530733R1

CAP

transmission pump rear end

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

4шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, 7/16-14 x 3-1/4 hex-hd cap

4шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

9шт.

55

405147R1

GASKET

transmission pump rear end cover

1шт.

56

394219R1

PLUG

control valve orifice

1шт.

57

HOUSING, control valve, for list of servicable parts refer to control valve this group

1шт.

58

444687

PLUG,Hex Soc, 1/8"-27

Automotive, Pipe Hex Soc, 1/8"-27

1шт.

59

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16, control valve orifice and housing

1шт.

60

405186R91

BEARING ASSY,2" ID x 4" OD x 1.378"

ASSY, drive shaft front

1шт.

61

405152R91

BEARING ASSY,1.1875" ID x 2.5317" OD x 0.8468, 0.6563"

ASSY, drive shaft rear pilot

1шт.

62

537762R1

SCREW

1/4-20 x 5/8 hex-hd cap nylon coated

2шт.

63

404783R1

SPACER

control valve handle

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

121753

WASHER

1/4 ext-tooth lock

1шт.

64

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

65

9410356

PLUG

7/16-20 hex-hd o-ring boss

3шт.

66

405128R1

SHIM

.010 rear brg (or as reqd)

1шт.

67

405073R92

PUMP

PLUM ASSY, hyd charge LH

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

385180R1

WASHER

9/32 x 1/2 x .065

4шт.

68

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

2шт.

69

394238R91

VALVE

ASSY, charge pump check

2шт.

70

404782R1

HANDLE

control valve shaft

1шт.

71

394237R2

GASKET

control valve housing

1шт.

72

128030C1

LINK

control valve

1шт.

73

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel end cover to valve plate

1шт.

405125R92

PACKAGE

o-ring & seal, consists of 1 seal (NSS), 1 seal (NSS), (2) o-ring 26079R1, (1) o-ring 610411R1 (NSS), (8) spring 393882R1

1шт.
