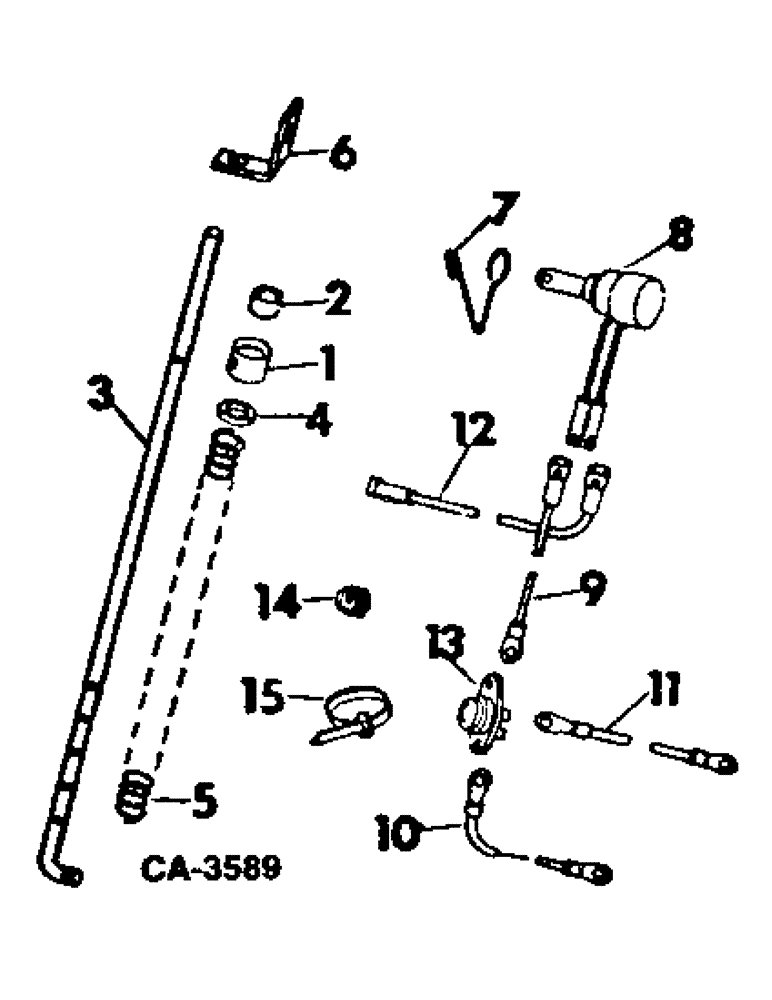

Запчасти Case IH 915 (10-16) - HYDRAULICS, AUTOMATIC HEADER CONTROL, REVERSE DRIVE LOCKOUT (07) - HYDRAULICS

1

175002C91

SLIDE ASSY, feeder hitch, includes ref no 2

1шт.

436746

SCREW

10-32 x 1/4 slt-pan hd

1шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

2

175003C1

BUSHING

1шт.

3

175015C1

ROD, feeder hitch

1шт.

586591R1

COTTER PIN

PIN, 1/8 qa

2шт.

20803R3

WASHER, 13/32 x 1 x 11ga

2шт.

4

631833R1

WASHER, feeder switch rod

1шт.

5

612871R1

SPRING

feeder switch rod

1шт.

6

179209C1

ANGLE, feeder switch rod guide

2шт.

980017R1

NUT, 5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss

1шт.

20893R1

WASHER

.34 x 1.0 x .1

2шт.

7

175013C1

SPRING

solenoid extension

1шт.

8

175014C1

SOLENOID ASSY, lockout

1шт.

20017R1

NUT

PIN, 1/8 x 1/2 slt spring

1шт.

9

175004C1

WIRE ASSY, solenoid to push button

1шт.

10

175007C1

WIRE ASSY, feeder, Serial Range: switch-button

1шт.

11

175008C1

CABLE ASSY.

WIRE ASSY, push button, Serial Range: switch-ground

1шт.

12

175011C1

WIRE ASST, feeder switch to push button

1шт.

13

366317R93

SWITCH

ASSY, push button

1шт.

13

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

no 10-32 sq

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no 10-32 x 1/2 slt-pan hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga

2шт.

14

109360

GROMMET

5/16 rubber

2шт.

15

702093C1

CABLE TIE

STRAP, wire tie

4шт.
