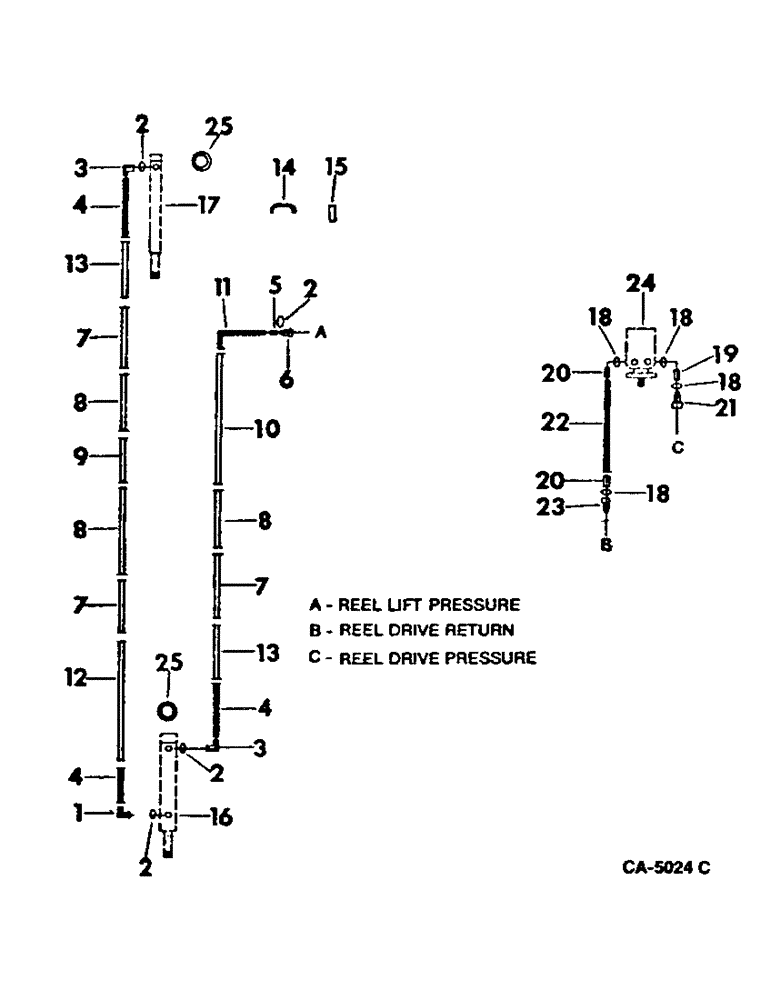

Запчасти Case IH 915 (10-10) - HYDRAULICS, HYDRAULIC DIAGRAM, FOR DRAPER EXTENSION (07) - HYDRAULICS

1

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

3шт.

3

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16 37 deg hyd flared tube

1шт.

4

632455R91

HOSE

ASSY, reel lift

3шт.

5

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 1/4 37 deg hyd flared tube

1шт.

6

166122C91

COUPLING

ASSY, self sealing female

1шт.

7

178812C1

HYD TUBE

TUBE ASSY, outer end

3шт.

8

197530C1

TUBE,0.375" OD

ASSY, spacer, 39 in

3шт.

9

178811C1

HYD TUBE

TUBE ASSY, master to slave cyl center

1шт.

10

178813C1

HYD TUBE,.375" OD, 35, 1.25" Length

TUBE ASSY, pressure to master cyl center

1шт.

11

195504C1

BUSHING

HOSE ASSY, reel lift, 80 in

1шт.

12

195505C1

TUBE

ASSY, header

1шт.

13

195506C1

HYD TUBE

TUBE ASSY, header

2шт.

14

165602C1

CLAMP

hyd tube

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

9шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 slt-trss-hd

9шт.

15

163490C1

RUBBER INSULATOR

CUSHION, tube clamp

14шт.

16

CYLINDER ASSY, master, refer to this group under master for unit listing

1шт.

17

CYLINDER ASSY, slave, refer to this group under slave cylinder for unit listing

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

4шт.

19

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg short swivel hyd

1шт.

20

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 3/4-16 x 7/8-14 37 deg hyd

2шт.

21

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female

1шт.

22

180239C1

HOSE

ASSY, hyd motor, 90-in

1шт.

23

395149R91

COUPLING

ASSY, self-sealing male

1шт.

24

MOTOR ASSY, hydraulic reel drive, refer to this group under hydraulic reel drive motor

1шт.

25

872534R1

SPACER,1/2" Pipe x 3/8"

cylinder pin

1шт.
