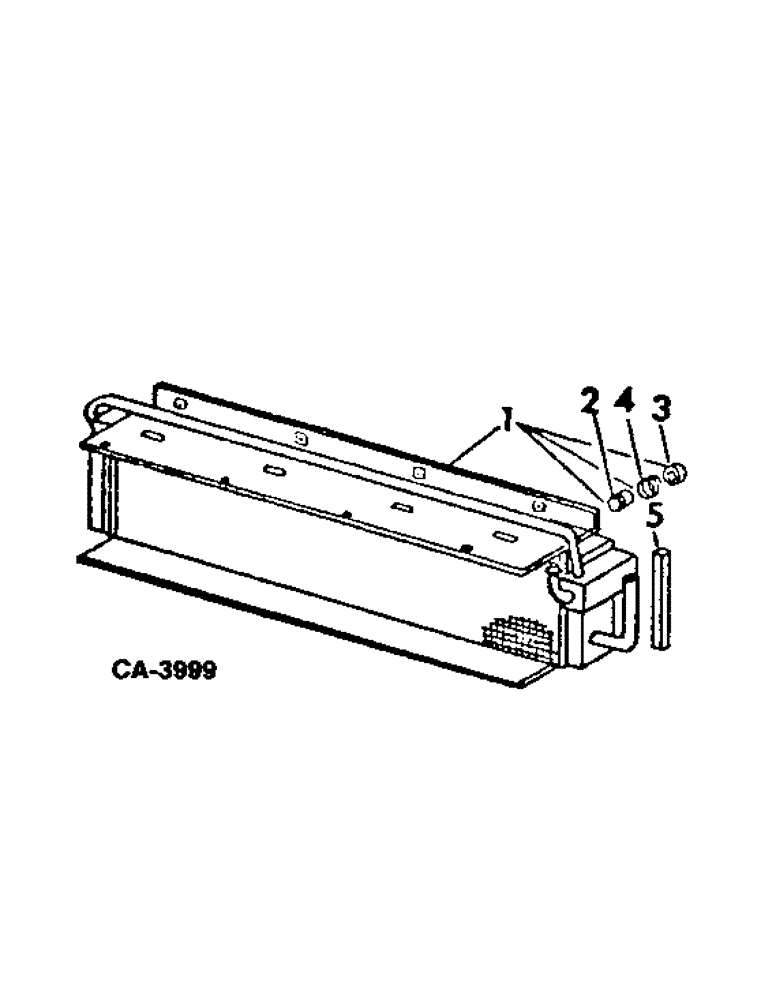

Запчасти Case IH 915 (10-05[A]) - HYDRAULICS, OIL COOLER, DIESEL ENGINE (07) - HYDRAULICS

1

64751C91

COOLER

COOLER ASSY, oil, karmazin

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

61221C1

VALVE

CARTRIDGE, check valve

1шт.

3

61223C1

PLUG

PIPE PLUG

1шт.

4

61222C1

SPRING

SPRING

1шт.

5

STRIP, sealing, to be used with karmazin oil cooler only, furnish 6 in. from 4 ft. length marked 73222C1

2шт.
