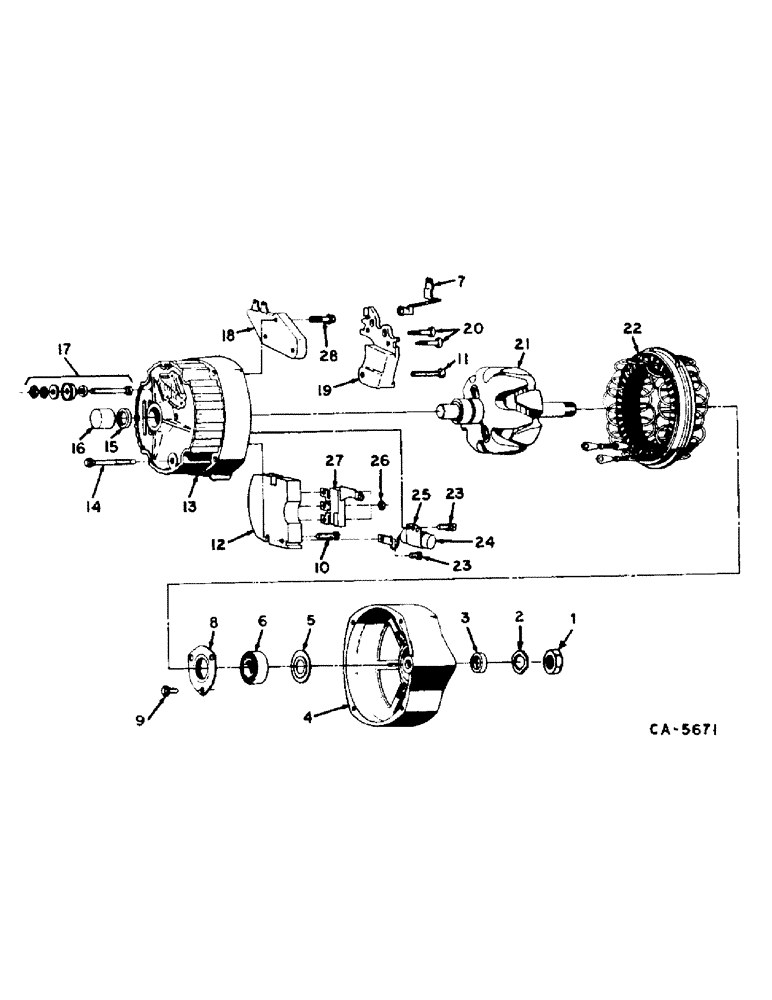

Запчасти Case IH 915 (08-16) - ELECTRICAL, ALTERNATOR GENERATOR (06) - ELECTRICAL

1102922

GENERATOR

ALTERNATOR GENERATOR ASSY, 72 ampere

1шт.

87297246

REMAN-ALTERNATOR

Reman For New P/N 1102922

1шт.

87297247

CORE-ALTERNATOR

Return Part Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured, 12 volt 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N 1102922

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103804A1GV

ALTERNATOR

Value

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New P/N 1102922

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

103806A1C

CORE-ALTERNATOR

Return Part Number

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 type 5

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

BOLT, 3/8 x 3-1/25 type 5

1шт.

21496R1

WASHER

WASHER, .344 x .750 x .105

1шт.

1

1915712

NUT, drive shaft end

1шт.

2

1941978

WASHER

WASHER, drive end shaft lock

1шт.

3

1959991

COLLAR

COLLAR, drive end shaft

1шт.

4

1970525

FUNNEL

FRAME FRAME, drive end

1шт.

5

800832

WASHER

WASHER, drive end grease slinger

1шт.

6

908019

BEARING

BEARING, drive end ball

1шт.

7

1894568

ELEC CONNECTOR

TERMINAL, relay

1шт.

8

1971993

PLATE

PLATE, drive end ball bearing retainer

1шт.

9

1965104

HOSE

SCREW, bearing retainer plate attaching

3шт.

10

1876668

SCREW

SCREW, rectifier support

1шт.

11

1974020

SCREW

SCREW, brush holder pivot

1шт.

12

1891055

SUPPORT

SUPPORT, rectifier

1шт.

13

1894570

FRAME

FRAME, slip ring end

1шт.

14

1956975

BOLT

SCREW, frame attaching

4шт.

15

1961323

SEAL

SEAL, slip ring end roller bearing

1шт.

16

9436831

BEARING

BEARING, slip ring end roller

1шт.

17

1846900

PACKAGE

PACKAGE, battery terminal

1шт.

18

1116392

REGULATOR

REGULATOR, voltage

1шт.

19

1894559

HOLDER

HOLDER ASSY, brush and brush

1шт.

20

1876681

SCREW

SCREW ASSY, brush holder insulated

2шт.

21

1876163

ROTOR

ROTOR ASSY

1шт.

22

1851572

STATOR

STATOR ASSY

1шт.

23

1851612

SCREW

SCREW W/LOCK WASHER, capacitor bracket and lead attaching

2шт.

24

1971411

CAPACITOR

CAPACITOR ASSY

1шт.

25

1869573

BRACKET

BRACKET, capacitor mounting

1шт.

26

453996

NUT,#8-32

NUT, no. 8 cdp hex. mach screw type 1

3шт.

27

1971528

RECTIFIER

RECTIFIER, diode trio

1шт.

28

1894586

SCREW

SCREW ASSY, brush holder ground

1шт.
