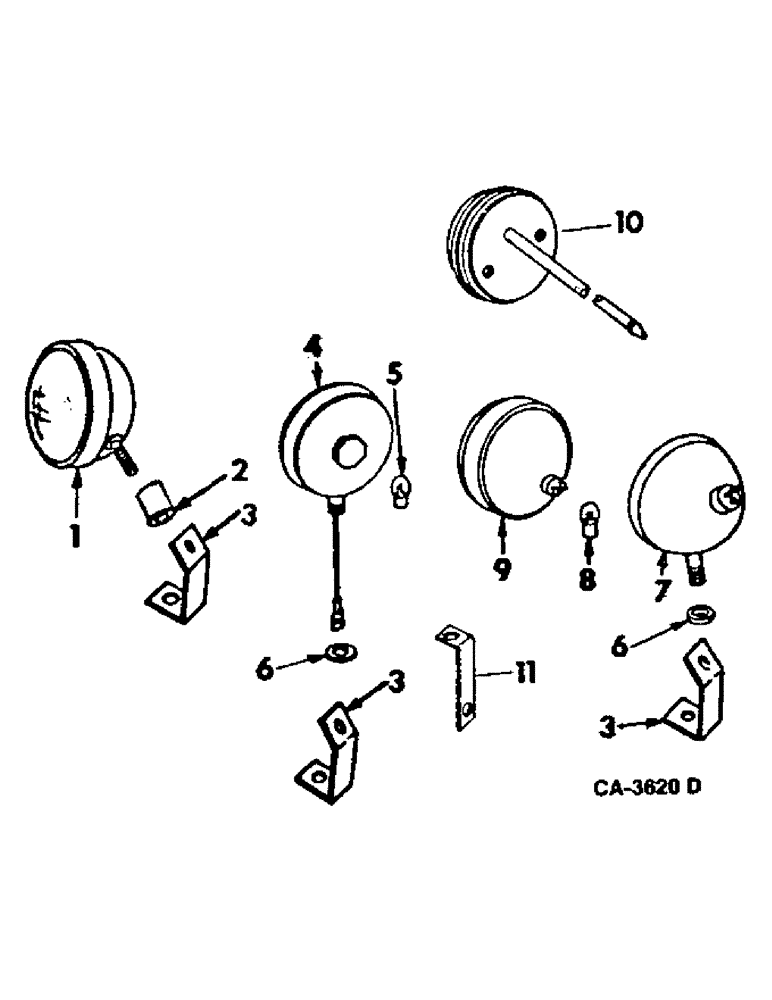

Запчасти Case IH 915 (08-12) - ELECTRICAL, LIGHTS (06) - ELECTRICAL

1

391005R91

HEADLIGHT

LIGHT ASSY, 1 used on tailings distributor auger cover RH extension, 1 used on grain tank front LH, 1 used on grain tank rear LH, 1 used on separator hood top rear RH, 1 used on cab LH front, 1 used on cab RH front

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

178373R1

WASHER

17/32 x 1 x 16 ga

5шт.

2

49069D

SPACER

light

6шт.

3

561915R1

BRACKET

light

6шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

4

67538C92

HEADLIGHT

LIGHT ASSY, flasher, includes ref no 5

2шт.

120371

NUT,1/2"-20, G5

2шт.

5

9417866

BULB,C6, #1156, 12.8V

no. 1156

2шт.

6

394262R1

WASHER

flasher light rubber

2шт.

7

387729R92

LIGHT ASSY.

TAIL LIGHT ASSY, includes ref nos 8 and 9

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

8

455490

BULB,C-6, #1003, 12V, .94W

tail light no. 1003-15 cp

1шт.

9

371461R91

LENS

UNIT ASSY, sealed beam tail light

1шт.

10

166827C91

LIGHT

warning

1шт.

11

195823C1

SUPPORT, flasher light front

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no 10-24 x 1/2 pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
