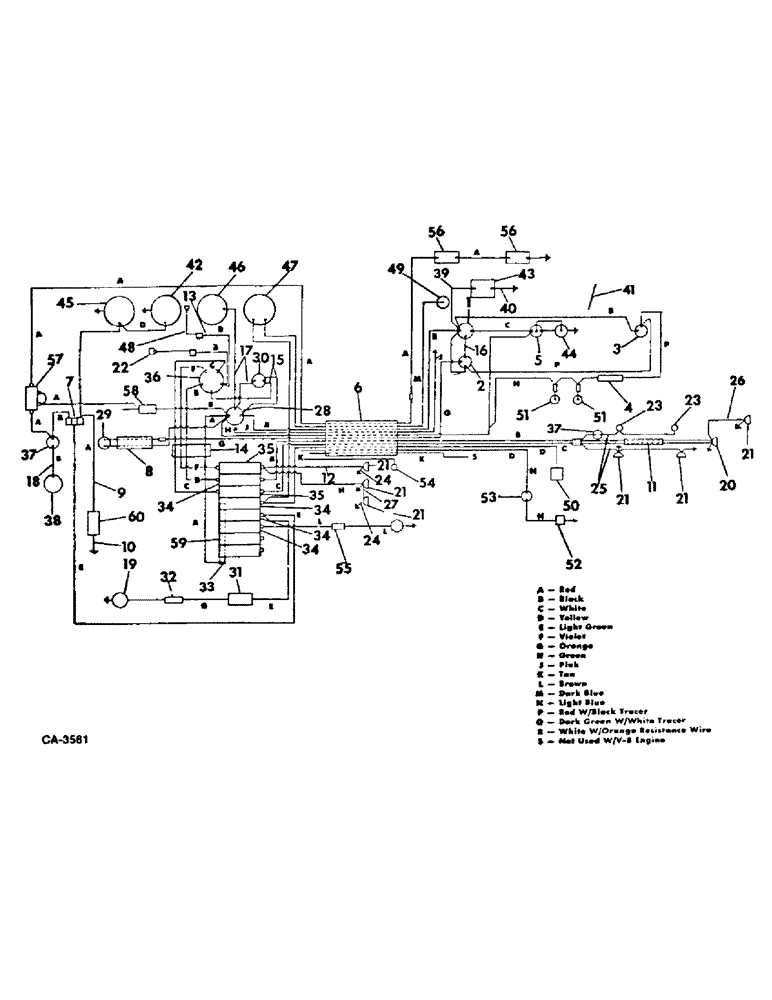

Запчасти Case IH 915 (08-03) - ELECTRICAL, WIRING DIAGRAM, GASOLINE ENGINE, S/N 19000 AND BELOW (06) - ELECTRICAL

1

MOTOR, cranking, refer to this group under cranking motor for unit listing

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120622

NUT,#8-32

2шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8 x 1-1/8 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

2

121613C1

IGNITION SWITCH

SWITCH, magnetic (Replaces 545736R1)

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

5/16 hex

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 hex-hd whiz lock

2шт.

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd whiz lock

1шт.

138485

RIGID TUBE

5/16 external tooth lock

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

60620C1

BRACKET, switch mounting

1шт.

3

ALTERNATOR, generator, refer to this group under alternator, generator drive and mounting for unit listing

1шт.

4

548239R2

RECTIFIER

DIODE ASSY

1шт.

5

COIL AND CLAMP ASSY, ignition, refer to ENG-3 parts catalog section B for unit listing

1шт.

6

178681C1

HARNESS

ASSY, main center

1шт.

7

241120R91

RELAY

ASSY, warning buzzer

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

2шт.

120373

NUT, 1/4 hex

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

178877C1

HARNESS ASSY, starting switch

1шт.

9

167411C1

CABLE ASSY, elevator clutch, 120 inches long

1шт.

10

CABLE ASSY, elevator clutch ground, use 41 in. of 14 ga wire from 100-ft roll marked 995055R1, one 54771R2 terminal and one 547771R2 terminal and one 547752R2 terminal, 177 in.

1шт.

11

178886C1

HARNESS ASSY, tail lamp cable, 177 inches long

1шт.

12

178888C1

HARNESS ASSY, RH font head light

4шт.

13

165668C91

CABLE ASSY, instrument light

1шт.

14

178684C1

HARNESS ASSY, main front

1шт.

15

178878C1

HARNESS ASSY, key switch

1шт.

16

178892C1

PUMP

CABLE, magnetic switch to cranking motor, 11 inches

1шт.

17

178879C1

HARNESS ASSY, key switch to volt meter

1шт.

18

178380C1

CABLE, flasher to horn, 61 inches

1шт.

19

166827C1

LIGHT, warning

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no 10 x 1/2 slt-pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

LAMP ASSY, refer to this group under lights for unit listing

1шт.

21

LAMP ASSY, refer to this group under lights for unit listing

1шт.

22

SOCKET ASSY, instruments light, refer to group 11 under gauges and instruments for unit listing

4шт.

23

LIGHT ASSY, fasher warning, refer to this group under lights for unit listing

2шт.

24

178890C1

CABLE

head light to ground, 6 in.

3шт.

25

178885C1

HARNESS ASSY, grain tank light

1шт.

26

165669C91

CABLE ASSY, rear light, 94 in.

1шт.

27

167412C1

CABLE

RH front cab light

1шт.

28

66581C3

SWITCH

magnetic start

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

2шт.

29

366317R93

SWITCH

ASSY, push button starting

1шт.

29

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

10-32 sq

2шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

8-32 x 1/2 pan-hd mach

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 pan-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, no 10 med lock

2шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga

2шт.

30

379594R4

SWITCH ASSY, ignition

1шт.

Ref #30 - NSS. Order 403562R2 Switch & Key. 11/17/95

1шт.

365502R1

NUT

13/16-20 hex

2шт.

NLS

NO LONGER SERVICED

LOCK, Int Tooth, 13/16"

2шт.

31

633643R91

SWITCH

ASSY, parking brake warning light

1шт.

134530

NUT,Hex, #6 - 32

x 7/8 slt-pan-hd mach #6-32

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

68107H

LOCK NUT

parking brake warning light switch

1шт.

469668R1

WASHER

parking brake warning light

1шт.

436665

SCREW

no. G-32 x 7/8 slt-pan-hd mach

2шт.

32

303236R91

INDICATOR LIGHT

FLASHER ASSY, light signal

1шт.

33

178869C1

PANEL ASSY, fuse

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 slt-pan-hd

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

34

117142

FUSE,10 Amp, Type 3AG

cartridge type 10 amp

5шт.

35

455844

FUSE,25 Amp, Type 3AG

cartridge type 25 amp

2шт.

36

166380C92

SWITCH

ASSY, light

1шт.

37

394132R91

FLASHER UNIT

FLASHER ASSY, horn warning

1шт.

37

394133R1

FASTENER

CLAMP, flasher mount

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

394134R1

SEAL

HOSE, fasher mount

1шт.

38

166166C91

HORN ASSY, warning

1шт.

39

178762C1

CABLE ASSY, battery, 73 in.

1шт.

40

178685C1

CABLE ASSY, Serial Range: battery-ground

1шт.

41

158477C91

CABLE

ASSY, engine to ground, 18 in.

1шт.

42

GAUGE ASSY, water temperature, refer to group 11 under gauges and instruments for unit listing

1шт.

43

BATTERY, 12 volt, refer to this group under battery clamp, plate and strap for unit listing

1шт.

44

DISTRIBUTOR ASSY, refer to ENG-3 parts catalog section B for unit listing

1шт.

45

GAUGE ASSY, oil pressure, refer to group 11 under gauges and instruments for unit listing

1шт.

46

GAUGE ASSY, voltmeter, refer to group 11 under gauges and instruments for unit listing

1шт.

47

GAUGE ASSY, fuel, refer to group 11 under gauges and instruments for unit listing

1шт.

48

SOCKET ASSY, refer to group 11 under gauges and instruments for unit listing

1шт.

49

SENDING UNIT ASSY, fuel gauge, refer to group 12 under fuel tank for unit listing

1шт.

50

PUMP ASSY, fuel, refer to group 12 under fuel tank for unit listing

1шт.

51

VALVE, solenoid fuel shut-off w/gasket, refer to ENG-3 parts catalog section B for unit listing

2шт.

52

CLUTCH ASSY, compressor, refer to group 13 under air conditiong compressor and condenser for unit listing

1шт.

53

THERMOSTAT ASSY, 170 degrees, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.

54

SWITCH ASSY, thermostat, refer to group 13 under air conditioning compressor and condenser for unit listing

1шт.

55

SWITCH ASSY, feeder throw-out, refer to group 33 under feeder chain drive and electric clutch for unit listing

1шт.

56

SWITCH ASSY, warning horn micro, refer to group 20 under straw chopper rotor and deflectors for unit listing

2шт.

57

RELAY ASSY, straw chopper, refer to group 20 under straw chopper rotor and deflectors for unit listing

1шт.

58

CIRCUT BREAKER, cab 30-amp, refer to group 13 under operators cab blower for unit listing

1шт.

59

432644

FUSE,20 Amp, Type SFE

cartridge type 20-amp

1шт.

60

SWITCH ASSY, elevator slip clutch alarm, refer to group 25 under tailings elevator for unit listing

1шт.

60304C1

HARNESS ASSY, main cable, not illustrated

1шт.
