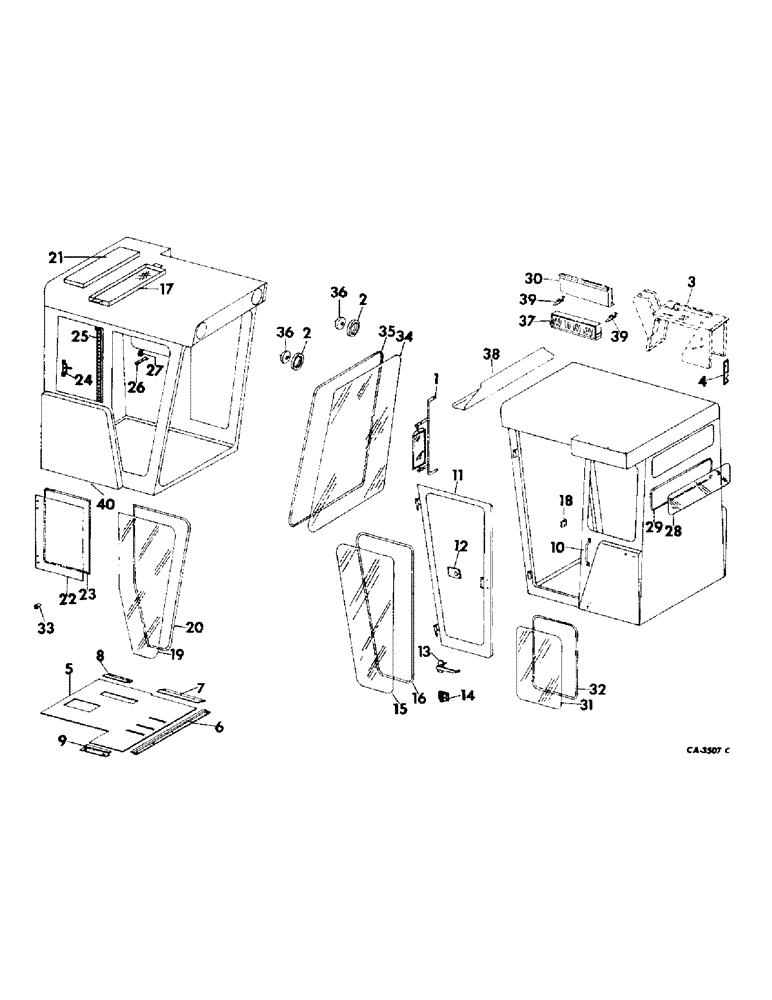

Запчасти Case IH 915 (13-08) - SUPERSTRUCTURE, OPERATORS CAB (05) - SUPERSTRUCTURE

198083C92

CAB COMPLET FOR SERVICE

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

1

178675C91

MIRROR ASSY, rear view outside

1шт.

2

175570C1

SEAL RETAINER

RETAINER, headlight, console assy, operators control, refer to this group under operators console for unit listing

1шт.

4

172955C1

FILLER, cab console

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

5

165067C1

MAT

cab floor

1шт.

6

174959C1

RETAINER, floor mat front

1шт.

7

174960C1

RETAINER, floor mat door

1шт.

24242R1

SCREW

no. 10-16 x 1/2 p/hds tap

1шт.

24242R1

SCREW

no. 10-18 x 1/2 p/hds tap

1шт.

8

174961C1

RETAINER, floor mat LH rear

1шт.

9

174962C1

RETAINER, floor mat RH

1шт.

10

188674R1

HANDLE, grab

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-pan-hd

2шт.

11

178674C91

DOOR ASSY, cab

1шт.

12

178748C1

LATCH

LOCK ASSY, door

1шт.

13

175566C1

HANDLE

W/KEYS, locking

1шт.

14

173897C1

LATCH

ASSY, door holder

1шт.

15

175567C1

GLASS, door

1шт.

16

SEAL, glass moulding, cab door, furnish 12 ft. from bulk stock marked 64156C1

1шт.

17

198115C1

FRAME, recirculating filter

1шт.

18

392801R1

STRIKER PLATE

STRICKER, door

1шт.

19

175572C1

GLASS, RH side front

1шт.

20

SEAL, glass moulding, RH side front, furnish 12 ft. from bulk stock marked 64516C1

1шт.

21

198120C1

FILTER

recirculating

1шт.

22

175573C1

GLASS, RH rear side vent

1шт.

23

MOULDING, RH rear side window, furnish 100 in. from bulk stock marked 196706C1

1шт.

24

170404C1

HANDLE

ASSY, vent door

1шт.

25

173912C1

HINGE ASSY, vent window

1шт.

26

175574C1

LATCH, vent window holding

1шт.

27

168913C1

SPRING, vent window latch

1шт.

28

168814C1

GLASS, rear

1шт.

29

SEAL, glass moulding, rear, furnish 8 ft. from bulk stock marked 64516C1

1шт.

30

198109C1

SCREEN

ASSY, air intake, serial no. 12001 and above

1шт.

31

175571C1

GLASS, LH rear side

1шт.

32

SEAL, glass window mounding, LH rear side, furnish 8 ft. from bulk stock marked 64516C1

1шт.

33

896274C1

BUSHING

5шт.

34

168809C1

GLASS, windshield

1шт.

35

SEAL, glass moulding, windshield, furnish 16 ft. from bulk stock marked 64516C1

1шт.

36

373662R91

LAMP

seal beam

2шт.

37

175568C1

FILLER

FILTER ASSY, air

1шт.

38

175730C1

RETAINER, air filter

1шт.

39

168481C1

LATCH ASSY.

FASTENERS, air intake screen, serial no 12001 abd above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x1/2 slt-truss-hd

1шт.

40

180797C1

PANEL ASSY, right rear quarter

1шт.
