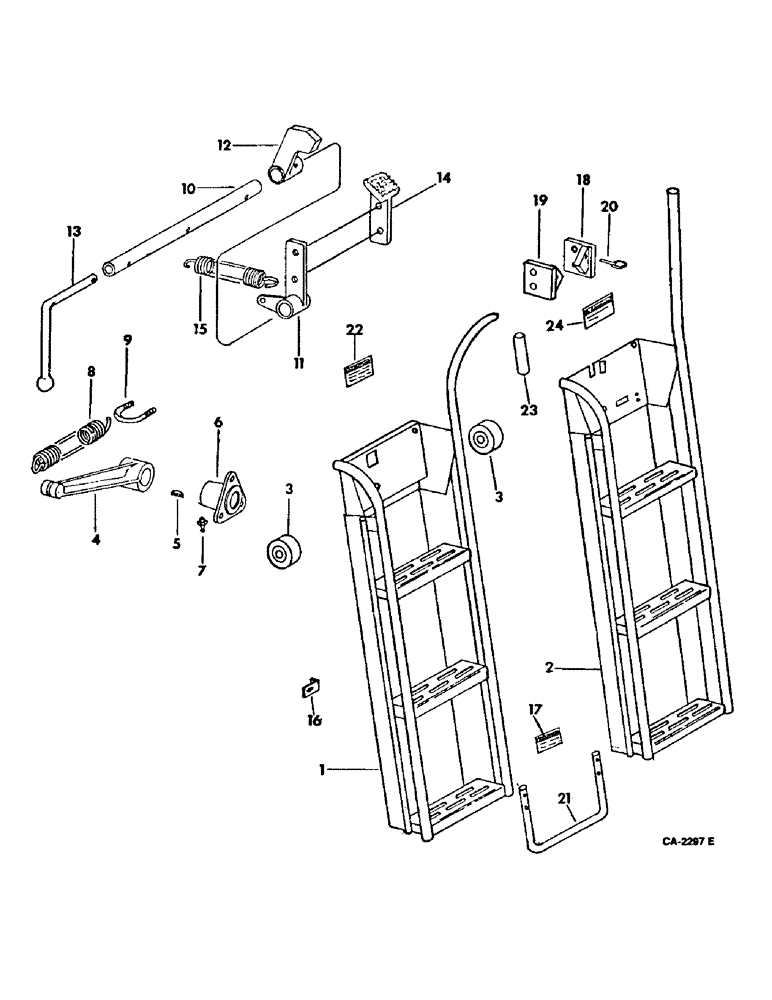

Запчасти Case IH 915 (13-06) - SUPERSTRUCTURE, OPERATORS PLATFORM LADDER (05) - SUPERSTRUCTURE

1

180563C91

LADDER ASSY, pivoting, pivoting ladder, includes ref. no. 17 & 22

1шт.

2

180564C91

LADDER ASSY, fixed, fixed ladder, includes ref. no. 24

1шт.

3

178560C1

WHEEL, ladder roller, pivoting ladder

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

22910R1

HEADED PIN

PIN, 1/4 x 1-1/2 znd std-hd

2шт.

4

178561C1

ARM, ladder balance, pivoting ladder

1шт.

280954

NUT,3/4"-10, G5

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 znd hex. jam

1шт.

22050R1

WASHER

1.28 x 1.75 x 16 ga znd

1шт.

467750R1

WASHER

.78 x 1.50 x 12 ga znd

2шт.

5

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 hard Woodruff, pivoting ladder

1шт.

6

178562C1

BEARING, ladder pivot, pivoting ladder

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive, Pivoting ladder

1шт.

8

178563C1

SPRING, ladder balance, pivoting ladder

1шт.

9

PO22288

BOLT

U-BOLT, balance spring anchor, pivoting ladder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

10

178564C1

PIPE, ladder release pivot, pivoting ladder

1шт.

11

178565C1

HUB, ladder release pedal, pivoting ladder

1шт.

12

178566C1

LATCH, ladder release, pivoting ladder

1шт.

13

178567C1

HANDLE, ladder latch, pivoting ladder

1шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 headed

1шт.

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

2шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

20342R1

WASHER, .53 x 1.00 x .03

2шт.

14

178568C1

PEDAL, ladder release, pivoting ladder

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

398763R2

SPRING

release return, pivoting ladder

1шт.

16

631965R1

BRACE

ANGLE, pivoting ladder swing

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hed-hd flange lock

1шт.

120394

WASHER,3/8", SAE

WASHER, .42 x .61 x .06

1шт.

17

180217C1

PRODUCT GRAPHIC, do not step

1шт.

18

178569C1

LUG, ladder LH attaching, fixed ladder

1шт.

21142R1

BOLT, 7/16 x 3/4 hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

19

178570C1

LUG, ladder RH attaching, fixed ladder

1шт.

21142R1

BOLT, 7/16 x 3/4 znd hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

20

174230C1

PIN

attaching lug release, fixed ladder

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23836R1

WASHER

.66 x 1.31 x 11 ga znd

2шт.

21

178283C1

STEP, operators platform ladder, for use w/23 1-34 main, wheel tires and track

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

180181C1

PRODUCT GRAPHIC, pivoting ladder safety

1шт.

23

198595C1

GRIP, ladder handrail

1шт.

24

275444R1

DECAL

PRODUCT GRAPHIC, caution

1шт.
