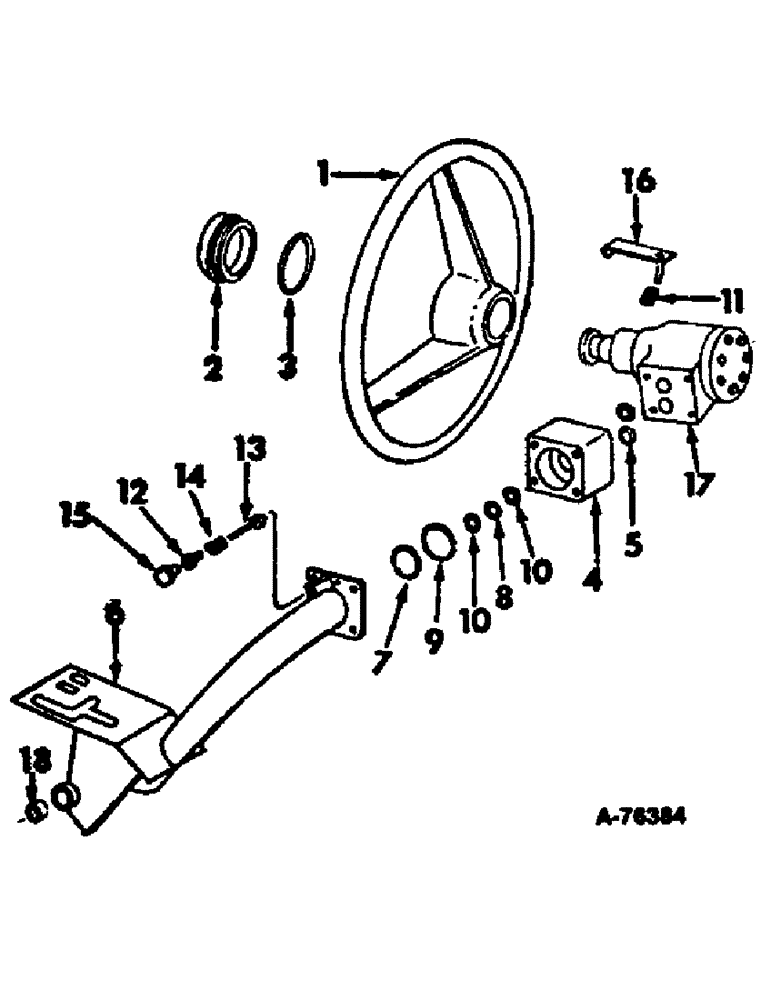

Запчасти Case IH 915 (05-1) - STEERING, STEERING WHEEL (04) - STEERING

1

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

68837C1

CAP

ASSY, steering wheel

1шт.

3

295201R1

O-RING, 2-13/16 x 3 x 3/32

1шт.

4

164910C1

BLOCK, steering wheel

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8 x 3-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

2шт.

6

164913C91

SUPPORT ASSY, steering, includes ref no. 18

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4 x 1/2 C-Z pan-hd self tap B

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

164907C1

RING

1-7/8 x 2-1/4 teflon backup

2шт.

8

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8

1шт.

9

702283R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

1-7/8 x 2-1/4 x 3/16

1шт.

10

164908C1

RING, 3/4 x 1 teflon back-up

1шт.

11

2189A

SPRING, starter pad

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

12

165681C1

BOLT,7/16" - 20 x 5/8"

steering pivot

1шт.

21763R1

WASHER

.469 x .75 x .105

1шт.

13

165697C1

STUD

PIN, steering locating

1шт.

14

606245R1

SPRING

steering pivot

1шт.

15

165706C1

KNOB

steering pivot

1шт.

16

165694C91

PAD ASSY, starter

1шт.

17

PUMP ASSY, steering hand, refer to group 10 under steering hand pump for unit listing

1шт.

18

165704C1

BUSHING

propulsion lever

1шт.
