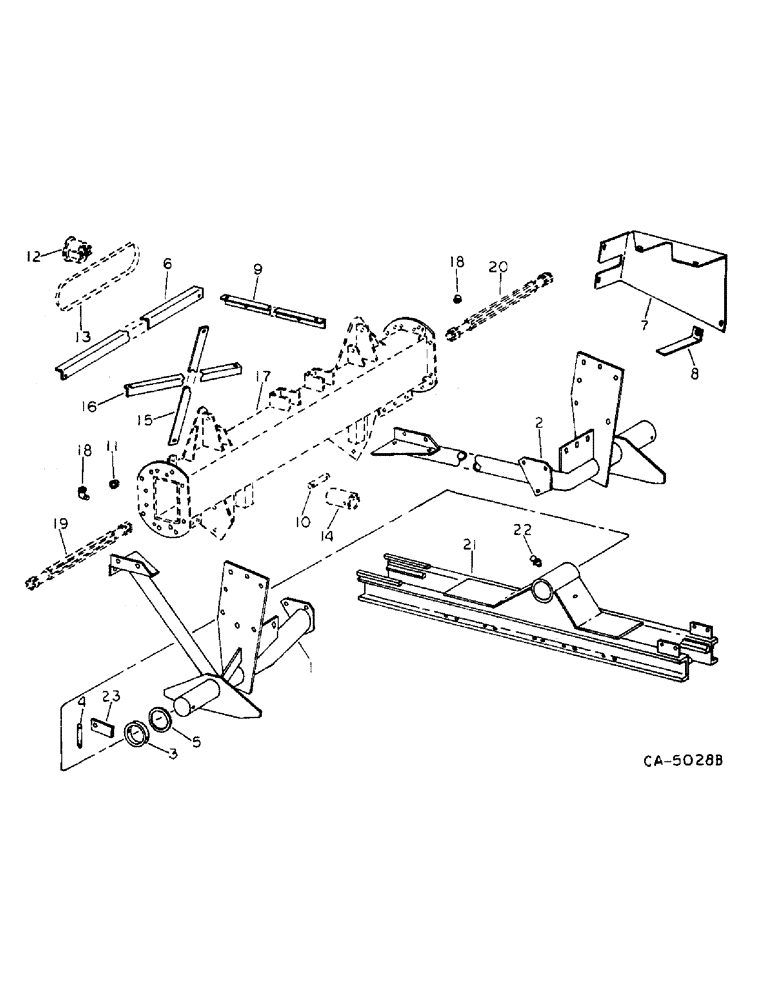

Запчасти Case IH 915 (15-4) - WHEELS AND TRACTION, TRACK, AXLE, SUPPORT AND SPEEDOMETER Wheels & Traction
№
Артикул
Название
Примечание
Количество
1
196069C1
SUPPORT ASSY, LH
1шт.
427566
BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd
1/2 x 1-1/2 hex-hd type 8
1шт.
432695C1
BOLT, 5/8 x 1-3/4 hex-hd type 8
2шт.
21330R1
NUT,1/2"-13, G8
1/2 hex type 8
4шт.
21434R1
NUT,5/8"-11, G8
5/8 hex type 8
2шт.
366864R1
WASHER, 1/2 rib lock
4шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
3шт.
366866C1
LOCK WASHER,5/8"
5/8"
2шт.
2
196070C1
SUPPORT ASSY, RH
1шт.
427566
BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd
1/2 x 1-1/2 hex-hd type 8
1шт.
432695C1
BOLT, 5/8 x 1-3/4 hex-hd type 8
2шт.
21330R1
NUT,1/2"-13, G8
1/2 hex type 8
4шт.
21434R1
NUT,5/8"-11, G8
5/8 hex type 8
2шт.
366864R1
WASHER, 1/2 rib lock
4шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
3шт.
366866R1
RING
WASHER, 5/8 rib lock
2шт.
3
167791C1
SPACER
RETAINER, track frame
1шт.
4
23854R1
LOCK PIN,1/2" x 5", Slotted
Pin, 1/2" x 5", Slotted
2шт.
5
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
track pivot shaft
4шт.
6
196079C1
ANGLE, axle tube cross tie
1шт.
20739R1
BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8
5/8 x 1-1/4 hex-hd type 8
4шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, 1/2 hex prevailing torque type 8
2шт.
21434R1
NUT,5/8"-11, G8
5/8 hex type 8
4шт.
131165
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
25710R1
WASHER
.521 x 1.60 x .134 hardened
4шт.
7
196080C2
COVER, foot-n-inch tube
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
3шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 hex-hd mach
2шт.
18810R1
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2
1/2 x 2-1/4 hex-hd mach
1шт.
487374C1
NUT, 1/2 hex flange lock
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
1шт.
120376
NUT,5/16"-18, G5
1шт.
NLS
NO LONGER SERVICED
.531 x 1.062 x .074
1шт.
8
196081C1
BRACE, tube cover lower front
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 sq-nk crg
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
9
196082C1
SUPPORT, separator RH front post
1шт.
21204R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8
3/4 x 1-3/4 hex-hd type 8
2шт.
220049
SEALING WASHER,14.2mm ID x 17.9mm OD x 1.5mm Thk
NUT, 3/4 hex type 8
2шт.
24771R1
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
10
PIN, hyd lift cylinder rear, refer to group 10 under feeder lift cylinder for unit listing
1шт.
11
141621
ELBOW,90 Degree, 3/4" NPT Street
3/4 90 deg straight, for final drive housing cover
2шт.
12
SPEEDOMETER ASSY, refer to group 11 under gauges and indicators for unit listing
1шт.
13
BELT, feeder jackshaft drive, refer to group 33 under feeder jackshaft drive for unit listing
1шт.
14
PIPE, hyd lift cylinder stop, refer to group 10 under feeder lift cylinder for unit listing
1шт.
15
196315C2
BAR
separator frame diagonal
1шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, U/2 prev. torque hex type 8
2шт.
25710R1
WASHER
.531 x 1.06 x .134 hard
4шт.
16
196185C1
ANGLE, separator frame diagonal
1шт.
359787C1
LOCK NUT,1/2"-13, GC
NUT, 1/2 hex type 8 prev. torque
2шт.
25710R1
WASHER
.531 x 1.06 x .134 hard
2шт.
17
AXLE ASSY, track frame, refer to group 7 under main axle for unit listing
1шт.
18
DOWEL, main axle end plate, refer to group 7 under main axle for listing
1шт.
19
SHAFT, LH final drive, 25.17 long, refer to group 7 under axle and final drive for unit listing
1шт.
20
SHAFT, RH final drive, 34.37 long, refer to group 7 under axle and final drive for unit listing
1шт.
21
196031C1
FRAME
ASSY, track
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
186126
SCREW, 3/8 x 1-1/2 hex-hd cap
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
22
109461
LUBE NIPPLE,1/8"-27 x .66 lg
FITTING, 1/8 90 deg fitting
2шт.
23
167741C1
RETAINER, track frame
2шт.
