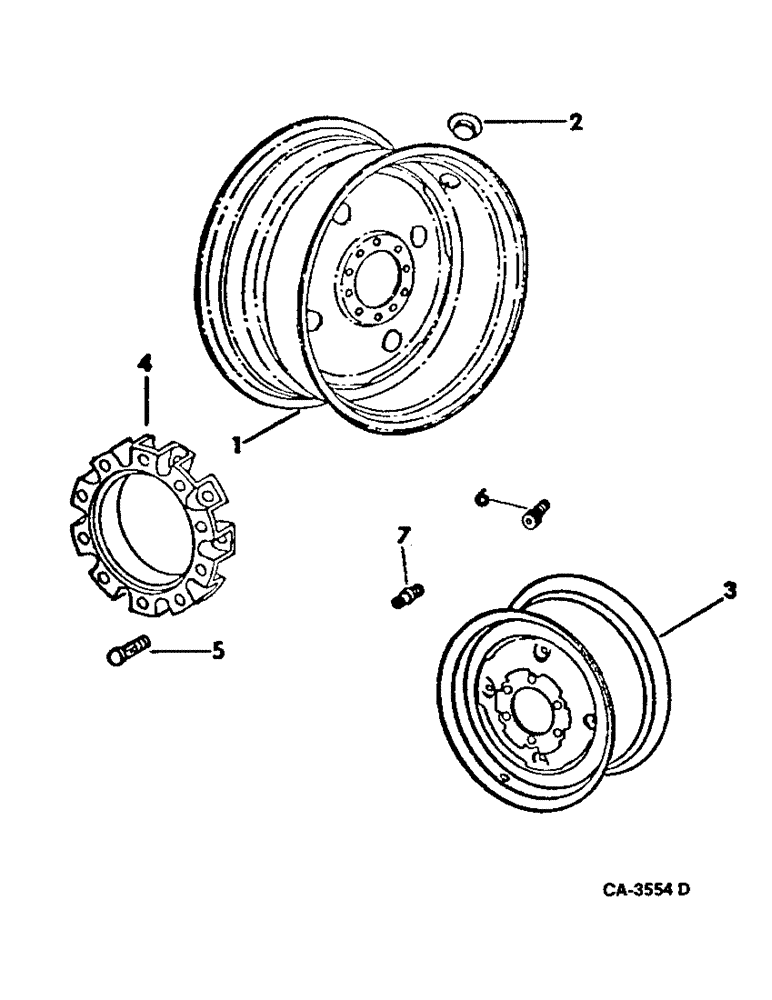

Запчасти Case IH 915 (15-1) - WHEELS AND TRACTION, MAIN WHEEL AND GUIDE WHEEL Wheels & Traction

1

196199C2

RIM, DISC ASSY, 26 x DW20 main wheel, for use w/23. 1-26 tire

2шт.

1

196201C1

RIM & DISC ASSY, 26 x DWH25 main wheel

2шт.

1

196198C1

WHEEL

RIM & DISC ASSY, 30 x DW30 main wheel

2шт.

1

196196C2

WHEEL

RIM & DISC ASSY, 34 x DW20 main wheel, for use w/23, 1-34 tires

2шт.

1

180223C1

RIM & DISC ASSY, 32 x DW21 main wheel, for use 4/24.5-32 tires

2шт.

2

383697R1

PLUG

valve hole, for tube type tires

1шт.

2

417194C1

PLUG

valve hole, for tubeless type tires

1шт.

3

163837C91

RIM & DISC ASSY, W7L x 20 guide wheel, for use w/9.5-24 6 holes

2шт.

3

180532C1

WHEEL

RIM & DISC ASSY, 10.00 x 16 guide wheel, for use w/12.4-16 6 holes

2шт.

3

624332R91

RIM & DISC ASSY, 5.50 x 20 DC guide wheel, for use w/7.50-20 6 holes

2шт.

3

936537R91

RIM

& DISC ASSY, 8.00 x 16 guide wheel, for use w/10.00 6 holes

2шт.

3

174719C2

WHEEL (STEERING)

RIM & DISC ASSY, W8 x 24DC guide wheel, for use w/9.5-24 8 holes

2шт.

3

177798C2

WHEEL (STEERING)

RIM & DISC ASSY, W10x24 guide wheel, for use w/11.2-24 8 holes

2шт.

3

188008C1

RIM

& DISC ASSY, 10.00 x 16 guide wheel, for use w/aa.00-16 8 holes

1шт.

Ref #3 - Rim 188008C1 has approx. 9 1/2-inch offset. MU. TSG. 09/02/99

1шт.

3

196211C1

WHEEL

RIM & DISC ASSY, 16.1 x 16 guide wheel, for use w/18.4-16 8 holes

2шт.

3

381357R91

RIM & DISC ASSY, w/12-24 for 14.9-24 tires 8 hole, for track

1шт.

4

178912C92

RETAINER

SPACER ASSY, wheel, 96 tread, includes ref no 5

2шт.

5

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel

1шт.

6

179482C1

VALVE STEM

VALVE, tubeless tire

1шт.

7

407184R1

VALVE

CORE, valve, tube type tire

1шт.
