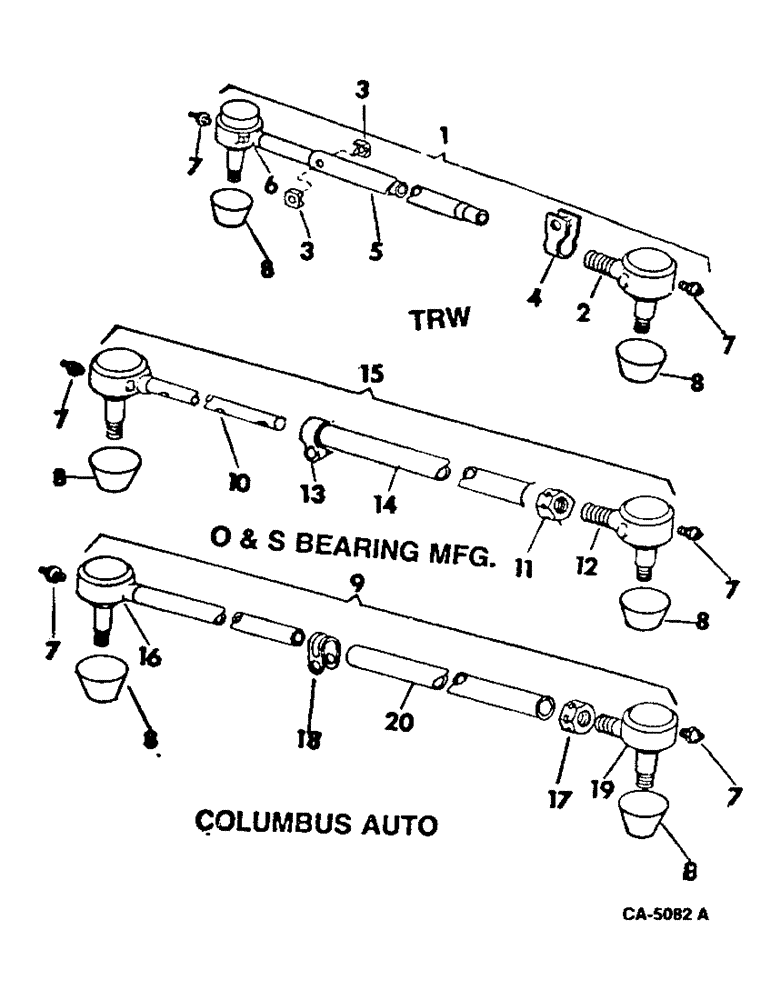

Запчасти Case IH 915 (14-7) - SUSPENSION, STEERING AXLE TIE RODS, NARROW ADJUSTING, 56 TO 68 INCHES Suspension
№
Артикул
Название
Примечание
Количество
1
195425C91
ROD ASSY, guide wheel tie, includes ref nos 2, 3, 4, 5 and 6
1шт.
425-1310
SLOTTED NUT,5/8"-18, G5
NUT, 5/8-NF slt type 5
1шт.
137204
COTTER PIN,1/8" x 1 1/2"
PIN, SPLIT (COTTER), 1/8" x 1 1/2"
1шт.
2
179228C1
END ASSY.
END ASSY, tie rod RH
1шт.
3
180586C1
BRACKET
WASHER, tie rod clamp
1шт.
4
225265R1
CLAMP
tie rod RH end
1шт.
168392R1
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8
1/2 x 2-1/2 type 8
1шт.
9412230
LOCK NUT
1/2 phc p/t lock type 8
1шт.
5
196322C1
TUBE, tie rod intermediate
1шт.
6
196321C1
END
ASSY, w/tube tie rod LH
1шт.
25776R1
BOLT
BOLT, 3/8-24 x 2-3/4 phc hex-hd type 8
1шт.
7
16964R1
FITTING
1/4-28 NF 90 deg lub
2шт.
8
382562R1
SEAL
tie rod stud
2шт.
9
ROD ASSY, narrow adjusting axle tie, 56 to 68 inches, order tie rod assy ref no. 1, 195425C91
1шт.
10
180198C1
ROD ASSY, w/LH end sliding, serial no. 19000 and below
1шт.
11
374062R1
JAM NUT
NUT, tie rod RH end locking 1-16 RH thread, serial no. 19000 and below
1шт.
12
180203C1
END ASSY.
END, tie rod RH, serial no. 19000 and below
1шт.
13
359986C1
CLAMP, tie rod, serial no. 19000 and below
1шт.
187000R1
BOLT, 1/2-20 x 2-1/4 hex-hd type 8
1шт.
225857R1
NUT, 1/2-20 hex. type 8
1шт.
364864R1
WASHER, 1/2 rib lock
1шт.
14
TUBE, adjusting axle tie rod, order rod assy ref no 1, 195425C91
1шт.
15
ROD ASSY, narrow adjustable axle tie, 56 to 68 inches, order rod assy, ref no, 1 195425C91
1шт.
16
180200C1
ROD ASSY, w/LH end sliding, serial no. 19000 and below
1шт.
17
374062R1
JAM NUT
NUT, tie rod RH lock 1-16 RH thread, serial. 19000 and below
1шт.
18
168063C1
CLAMP, tie rod, serial no. 19000 and below
1шт.
187000R1
BOLT, 1/2-20 x 2-1/4 hex-hd type 8
1шт.
225857R1
NUT, 1/2-20 hex. type 8
1шт.
366864R1
WASHER, 1/2 rib lock
1шт.
128396
BEARING ASSY
WASHER, .531 x 1.06 x .095
1шт.
19
379551R92
END ASSY.
END ASSY, w/nut and seal tie rod RH
1шт.
425-1310
SLOTTED NUT,5/8"-18, G5
NUT, 5/8-18 slt-hex
1шт.
20
TUBE, adjustable axle tie, order tie rod assy ref no. 1, 195425C91
1шт.
232-4636
LOCK NUT,3/8"-24, GC
NUT, LOCK, 3/8"-24, GC
1шт.
Выбрано товаров: 34
