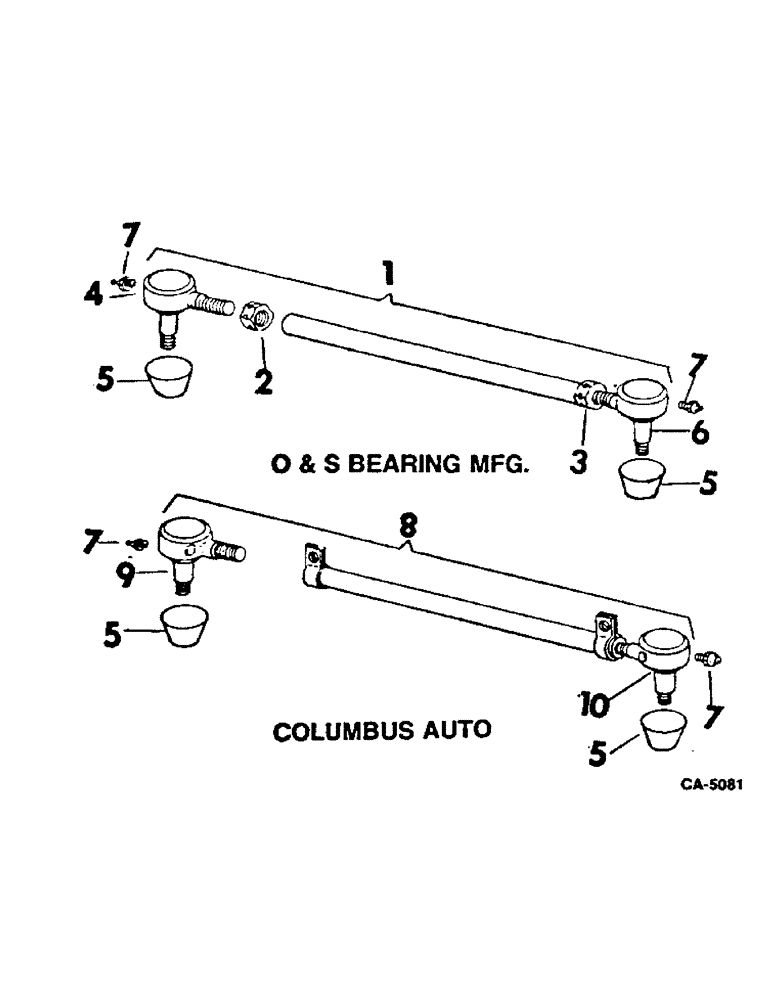

Запчасти Case IH 915 (14-6) - SUSPENSION, STEERING AXLE TIE RODS, FIXED AXLE Suspension

1

177774C91

ROD

ASSY, non-adjustable axle tie, optional for 177772C91

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/16 slt-hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

2

374061R1

JAM NUT

tie rod LH end locking 1-16 LH thread

1шт.

3

374062R1

JAM NUT

NUT, tie rod RH end locking 1-16 RH thread

1шт.

4

180201C91

END

ASSY, w/nut and seal tie rod LH

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/16-18 slt-hex.

1шт.

5

382562R1

SEAL

tie rod stud

2шт.

6

379551R92

END ASSY.

END ASSY, w/nut and seal tie rod RH

1шт.

7

16964R1

FITTING

1/4-28 NF 90 deg lub

2шт.

8

177772C91

ROD ASSY.

ROD ASSY, non adjustable axle tie, includes ref nos. 9 and 10, optional for 177774C91 rod ref no. 1

1шт.

455029

BOLT, 1/2-20 x 2-1/2 hex. type 8

2шт.

225857R1

NUT, 1/2-20 hex. type 8

2шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-1/ slt-hex

2шт.

366864R1

WASHER, 1/2 rib lock

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

9

180202C1

END ASSY.

END ASSY, tie rod LH

1шт.

10

180203C1

END ASSY.

END ASSY, tie rod RH

1шт.
