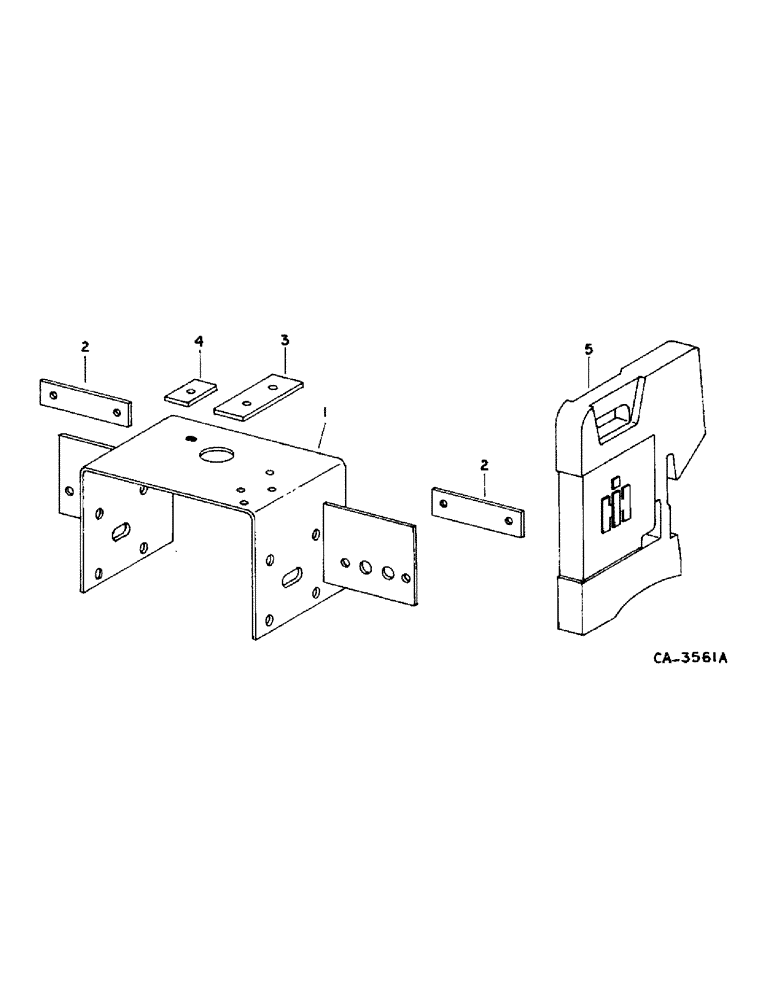

Запчасти Case IH 915 (14-5) - SUSPENSION, STEERING AXLE SUPPORT COUNTER WEIGHTS Suspension

1

178430C1

SUPPORT ASSY.

SUPPORT ASSY, weight

1шт.

2

178433C1

BAR

side weight retainer

2шт.

3

178434C1

CLAMP

top weight

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

561838R1

PLATE

CLAMP, top weight LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2 x 5-1/2 znd hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

71200C1

WEIGHT

steering axle support counter, 100 lbs

1шт.
