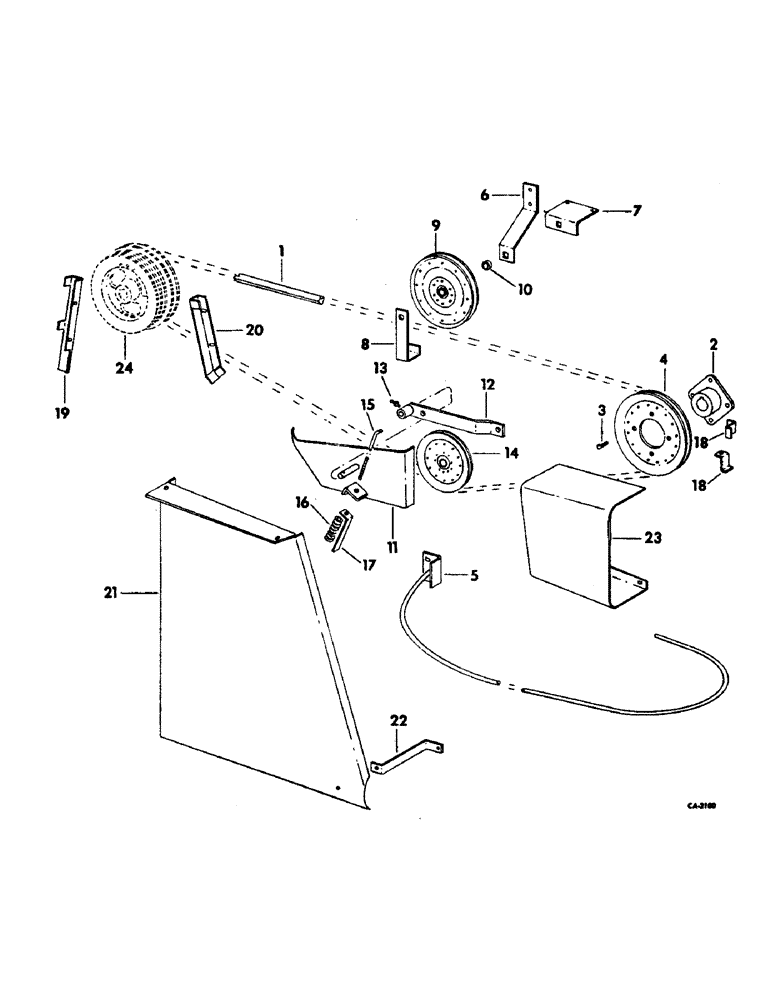

Запчасти Case IH 915 (R-64) - SEPARATOR, STRAW CHOPPER DRIVE, SERIAL NO. 2350 AND ABOVE Separation

1

174642C1

V-BELT,0.897" W x 284.99" L

0.879" W x 284.99" L, Straw chopper drive

1шт.

2

174643C1

HUB, driven pulley

1шт.

3

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 sq-tapered

1шт.

4

171261C11

PULLEY

ASSY, driven

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

4шт.

5

174634C1

SHIELD

ASSY, straw chopper hoop

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

6

174644C1

SUPPORT, rigid idler upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

7

174645C1

SUPPORT, rigid idler lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

8

174646C1

GUIDE, drive belt rigid idler

1шт.

9

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, drive idler flat

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

3шт.

10

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

idler pulley

1шт.

11

174647C2

SUPPORT ASSY, tightener pivot arm

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

4шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 C-Z whiz lock

4шт.

12

174651C1

ARM

ASSY, tightener pulley pivot

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

1шт.

13

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 STR lub

1шт.

14

574097R91

PULLEY

ASSY, drive belt tightener

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 znd hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

15

155886C2

ROD, tightener arm spring tension

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

16

PO3A

SPRING

tightener arm tension

1шт.

17

174655C1

SUPPORT

INDICATOR, spring length

1шт.

18

174620C1

STRAP, belt hanger rear

2шт.

19

174658C1

GUIDE ASSY, drive belt front

1шт.

20

174660C1

SUPPORT

GUIDE ASSY, drive belt rear

1шт.

21

174661C1

SHIELD, drive front

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

4шт.

22

174662C1

SUPPORT, front shield rear

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

1шт.

23

174633C1

SHIELD, rear drive

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

24

PULLEY, separator & straw chopper drive, refer to section B, separator drive unit for listing

1шт.
