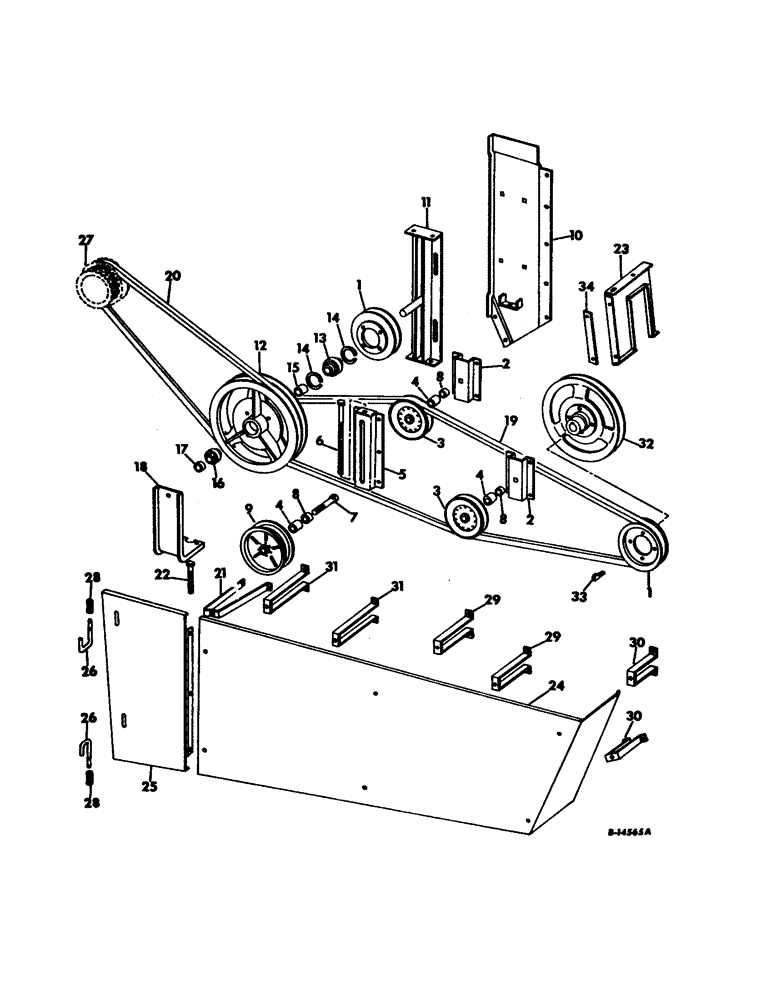

Запчасти Case IH 915 (R-62) - SEPARATOR, STRAW CHOPPER DRIVE, SERIAL NO. 2349 AND BELOW Separation
№
Артикул
Название
Примечание
Количество
1
160992C1
PULLEY, straw chopper driven, 9.6 in. OD
2шт.
18779R1
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
3/8 x 1-1/2 C-Z hex-hd mach
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
2
161600C1
SUPPORT, straw chopper belt rear idler
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
8шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 slt-truss-hd
1шт.
3
574097R91
PULLEY
ASSY, straw chopper drive belt idler, 7.15 in OD
1шт.
20626R1
BOLT
5/8 x 4-3/4 C-Z sq-nk crg
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
464623R1
WASHER
21/32 x 1-1/2 x 11 ga C-Z
6шт.
21782R1
WASHER
21/32 x 1-1/2 x 16 ga C-Z
2шт.
21783R1
SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole
21/32 x sq hole x 1-1/2 x 12
1шт.
21761R1
WASHER
29/32 x 1-1/2 x 16 ga C-Z
2шт.
4
161584C1
SPACER, straw chopper drive belt idler pulley
3шт.
5
161588C91
SUPPORT ASSY, straw chopper drive belt tightener pulley
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
6шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
6шт.
6
161586C1
BOLT, straw chopper drive belt tightener pulley draw
1шт.
7
161587C1
BOLT, straw chopper drive belt tightener pulley stub
1шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 C-Z hex.
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
464623R1
WASHER
21/32 x 1-1/2 x 11 ga
4шт.
21782R1
WASHER
21/32 x 1-1/2 x 16 ga
1шт.
8
161583C1
SPACER, straw chopper drive belt idler
3шт.
9
936922R91
BEARING
PULLEY ASSY, straw chopper drive belt tightener
1шт.
10
161591C91
PLATE ASSY, straw chopper jackshaft drive belt tightener
1шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 C-Z sq-nk crg
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
9шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex.
4шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
9шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
607891R1
WASHER
15/32 x 1 x 16 ga C-Z
4шт.
11
161602C91
SUPPORT ASSY, straw chopper drive jackshaft belt tightener
1шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 C-Z slt-truss-hd
2шт.
120376
NUT,5/16"-18, G5
2шт.
21226R1
WASHER
1-9/32 x 2 x 11 ga C-Z
2шт.
608700R1
WASHER
1-9/32 x 2 x 16 ga C-Z
3шт.
12
160868C1
PULLEY, straw chopper jack shaft driven
1шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
1/2 x 1-1/2 C-Z hex-hd mach
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
21883R1
WASHER
17/32 x 1-3/4 x 1/8 C-Z
1шт.
13
161741C91
BEARING ASSY, straw chopper drive jackshaft pulley inner ball
1шт.
14
45650D
RETAINER
RING, straw chopper drive jackshaft pulley inner brg snap
2шт.
15
161582C1
BUSHING, straw chopper jack shaft brg
1шт.
16
161739C91
BEARING
ASSY, straw chopper drive jackshaft pulley outer
1шт.
17
161599C1
BUSHING, straw chopper jack shaft outer
1шт.
18496R1
BOLT,Hex, 1/2"-13 x 1 1/2", G2
1/2 x 1-1/2 C-Z hex-hd mach
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
21883R1
WASHER
17/32 x 1-3/4 x 1/8 C-Z
1шт.
18
161601C1
BRACKET, straw chopper jackshaft anchor outer
1шт.
19
160870C1
V-BELT,0.88" W x 199.89" L
Straw Chopper Drive 0.88" W x 199.89" L
1шт.
20
160871C1
V-BELT,0.88" W x 132.55" L
Straw Chopper Jackshaft Drive, Not for DT 407 Diesel Engine 0.88" W x 132.55" L
1шт.
20
168678C1
BELT
straw chopper jack shaft drive, for DT 407 diesel engine
1шт.
21
161609C1
BRACKET, straw chopper drive inspection door
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
1шт.
22
162293C1
BOLT, straw chopper belt tightener
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
23
162405C1
SUPPORT, strw chpr side rear trim LH
1шт.
24
169003C2
SHIELD ASSY, straw chopper drive rear
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
3шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
3шт.
25
162395C91
DOOR ASSY, straw chopper drive belt inspection
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
2шт.
937875R1
SCREW,Serr, 1/4" - 20
1/4 x 3/4 C-Z SLT truss hd
2шт.
26
173242C1
HANDLE
PIN, chopper drive inspection door locking
2шт.
121223
COTTER PIN,1/16" x 3/4"
PIN, SPLIT (COTTER), 1/16" x 3/4"
2шт.
21784R1
WASHER
17/64 x 1/2 x 16 ga C-Z
2шт.
27
PULLEY, separator drive 8.6 in. OD, refer to separator drive unit for listing
1шт.
28
606245R1
SPRING
straw chopper drive inspection door
2шт.
29
163895C1
SUPPORT, straw chopper drive shield center
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
6шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
4шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 C-Z slt-truss-hd
2шт.
30
163896C1
SUPPORT, straw chopper drive shield rear
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
6шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
4шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 C-Z slt-truss-hd
1шт.
164191C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"
5/16 x 1-1/2 C-Z slt-truss-hd
1шт.
20893R1
WASHER
11/32 x 1 x 11 ga C-Z
4шт.
31
163897C1
SUPPORT, straw chopper drive shield front
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
4шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
2шт.
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
5/16 x 1 C-Z slt-truss-hd
2шт.
32
160867C1
PULLEY, straw chopper jack shaft driven
1шт.
33
Q3952
KEY,Gib, 3/8" Sq x 2 3/4"
3/8 x 2-3/4 gib
1шт.
34
166092C1
STRAP, straw chopper trim support
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
1шт.
Выбрано товаров: 91
