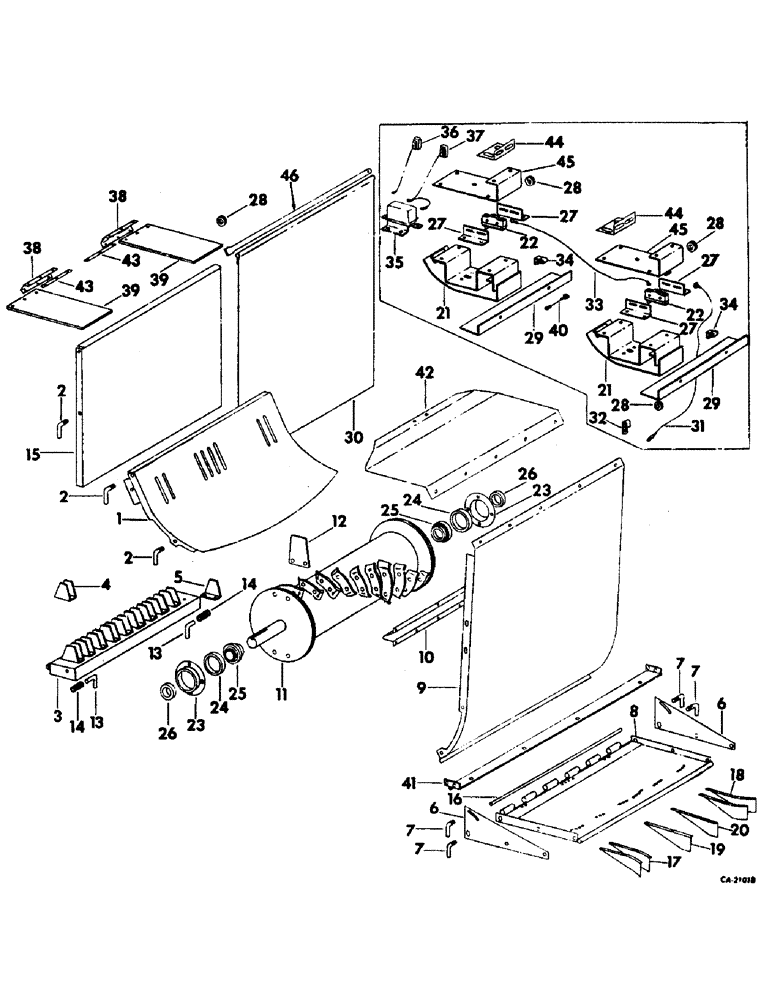

Запчасти Case IH 915 (R-60) - SEPARATOR, STRAW CHOPPER ROTOR, SERIAL NO. 2350 AND ABOVE Separation

1

174675C1

DEFLECTOR

ASSY, lower front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

2

174685C1

BOLT,Adj, 3/8" - 16 x 2.10", 2.50"

lower front deflector adj

6шт.

174688C1

NUT

3/8 C-Z whiz lock

6шт.

3

174678C91

BAR

ASSY, concave, includes ref. nos. 4 and 5

1шт.

4

174680C1

BLADE

concave

12шт.

104235

RIVET,FH, 3/16" x 1/2"

1шт.

5

174681C1

BLADE

concave end

1шт.

104235

RIVET,FH, 3/16" x 1/2"

1шт.

6

172514C1

SUPPORT

rear deflector

2шт.

7

174971C1

BOLT,Adj, 5/16" - 18 x 1.60", 2"

rear deflector support adj

4шт.

161946C1

NUT

5/16 C-Z whiz lock

4шт.

564266R1

NUT

5/16 tab

2шт.

8

175082C2

EXTENSION ASSY, rear deflector

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

9

174668C1

DEFLECTOR, separator hood rear

1шт.

541310R1

SPRING NUT

5/16-18 tinnerman

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

10

174669C1

DEFLECTOR, separator hood rear air

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

11

174640C91

ROTOR ASSY, strw chopper, includes ref. no. 12

1шт.

12

174641C1

BLADE

rotor

28шт.

12

197124C1

PACKAGE

BLADE, service package

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

56шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

13

174689C1

PIN

stationary knife adj

2шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

23408R1

WASHER

15/32 x 3/4 x 16 ga C-Z

2шт.

14

352105R1

SPRING

stationary knife adj pin

2шт.

15

174690C1

DEFLECTOR ASSY, front upper

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z whiz lock

2шт.

16

175931C1

ROD

rear deflector support hinge

1шт.

17

174671C1

DEFLECTOR

straw chopper left

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd whiz lock

2шт.

18

174672C1

DEFLECTOR

straw chopper right

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd whiz lock

2шт.

19

174673C1

DEFLECTOR

straw chopper left center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-truss-hd

1шт.

20

174674C1

DEFLECTOR

straw chopper right center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 znd slt-truss-hd

1шт.

21

171173C1

BRACKET

ASSY, warning horn switch

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

22

574649R91

SWITCH

warning horn micro

2шт.

134530

NUT,Hex, #6 - 32

4шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 slt-pan hd

4шт.

131044

LOCK WASHER

Lock, #6

4шт.

23

936130R1

FLANGE

rotor shaft bearing

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

24

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

rotor shaft bearing

2шт.

25

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, rotor shaft

2шт.

26

455112R11

COLLAR

ASSY, rotor shaft brg lkg, not used w/monitor control

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd set

2шт.

27

166225C2

SUPPORT

BRACKET, warning horn switch

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

8шт.

28

117959

GROMMET,5/16" ID x .719" x .062"

no. 3 rubber diagonal cut

3шт.

28

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

no. 4 rubber diagonal cut

2шт.

29

173861C2

RETAINER, straw chopper wire

2шт.

564791R1

SPRING NUT

1/4 speed

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

6шт.

30

175033C1

FLAP

separator rear check, corn and soybean special combine

1шт.

31

174497C1

CABLE

engine to micro switch 192-inch

1шт.

32

366460R1

CABLE CLIP

CLIP, engine to micro switch cable

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

33

174495C1

CABLE, front to rear micro switch 69-in

1шт.

34

365584R1

CLIP

frt to rear micro switch cable

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

6шт.

35

921926C1

SWITCH

RELAY, straw chopper

1шт.

19302R1

NUT

no. 10 C-Z hex.

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 C-Z slt-pan hd

1шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10 x 3/4 C-Z slt-pan hd

1шт.

115707

LOCK WASHER,#10

Washer, Lock, #10

2шт.

36

174496C1

CABLE, relay to horn, not used w/monitor control

1шт.

37

174498C1

CABLE, relay to fuse block, not used w/monitor control

1шт.

38

174693C1

SUPPORT

straw rack flap, optional

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

15шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

15шт.

39

174694C1

FLAP

straw rack, optional

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

15шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

15шт.

40

CABLE, micro switch to ground, not used w/monitor control, use 2.5 inches of 14 ga wire from a 100-ft roll marked 995055R1, one terminal 54771R2 and one terminal 54772R2

1шт.

41

175090C1

REINFORCEMENT

hinge, corn and soybean special combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

7шт.

42

175056C1

SHIELD, hood top rear, corn and soybean special combine

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

2шт.

43

174695C1

STRIP, straw rack flap support, corn & soybean special combine

5шт.

44

168905C1

SUPPORT, warning horn switch

2шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

45

161704C1

SUPPORT, warning horn switch

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

46

157177C1

ROD

grain pan check flap

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.
