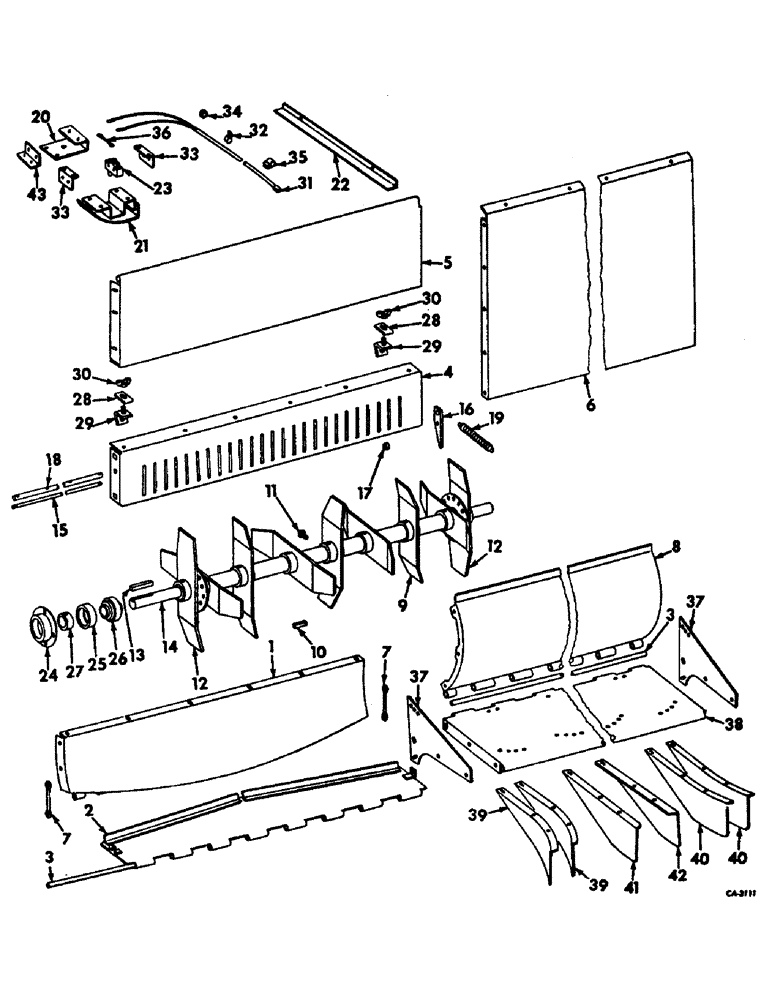

Запчасти Case IH 915 (R-58) - SEPARATOR, STRAW CHOPPER CUTTING PARTS, SERIAL NO. 2349 AND BELOW Separation

1

159016C91

DEFLECTOR ASSY, straw chopper lower front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

6шт.

2

159018C91

EXTENSION ASSY, straw chopper lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

3

159027C1

ROD

straw chopper hinge

2шт.

4

151011C91

PANEL ASSY, straw chopper knife

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

5

170486C1

DEFLECTOR, straw chopper upper front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss hd

6шт.

6

161631C1

DEFLECTOR, separator hood upper rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

17шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

8шт.

7

167275C1

LINK, straw chopper rear deflector

2шт.

8

161632C1

DEFLECTOR, separator hood lower rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

6шт.

9

155067C92

BLADE ASSY, straw chopper

12шт.

10

575824R1

KEY,1/4" Sq x 3", Par

1/4 x 3 sq-parallel

12шт.

11

937499R1

SCREW, straw chopper blade hub set

56шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

56шт.

12

155070C92

BLADE ASSY, straw chopper outer

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

13

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 2-1/2 sq-parallel

2шт.

14

155066C1

SHAFT, straw chopper

1шт.

15

937187R1

ROD, straw chopper knife pivot

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

16

936135R1

BLADE

straw chopper

25шт.

17

567532R1

WASHER

RING, straw chopper locating

25шт.

18

151021C1

ROD, straw chopper blade spring

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

6шт.

19

622016R1

SPRING

straw chopper blade

5шт.

20

161704C1

SUPPORT, straw chpr warning horn switch

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

8шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z SLT truss-hd

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

21

166220C92

BRACKET

ASSY, straw chopper warning horn switch

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

8шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z SLT truss hd'

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

22

173861C2

RETAINER, straw chopper wire

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT, 1/4 x 1/2 slt-tr-hd

6шт.

564791R1

SPRING NUT

1/4 speed

6шт.

23

574649R91

SWITCH

ASSY, straw chopper warning horn

2шт.

134530

NUT,Hex, #6 - 32

2шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6-32 x 1-1/4 C-Z SLT pan hd mach

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

24

936130R1

FLANGE

straw chopper rotor shaft brg

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

25

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

straw chopper rotor shaft brg

2шт.

26

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, stw chpr rotor shft ball

2шт.

27

455112R11

COLLAR

w/SET SCREW lkg

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt set

2шт.

28

151199C1

STRIP, stw chpr spg rod retainer

2шт.

29

151200C11

BRACKET ASSY, stw chpr sprg rod ret

2шт.

30

935736R1

NUT, WING

NUT, 5/16 wing

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

31

162474C91

CABLE ASSY, micro, Serial Range: switch-horn

1шт.

32

362127R1

CLIP

straw chopper horn cable

5шт.

33

166225C2

SUPPORT

BRACKET, straw chopper warning horn switch

4шт.

134530

NUT,Hex, #6 - 32

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

193257

TUBE

SCREW, no. 6-32 x 1/4 slt-pan-hd

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z SLT truss hd

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

1шт.

34

117959

GROMMET,5/16" ID x .719" x .062"

no. 3 plain rubber diagonal cut, in separator top supports for warning horn cable

7шт.

34

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

no. 4 plain rubber diagonal cut, in warning switch support for warning horn cable

2шт.

35

166921C1

CLIP, cable

7шт.

35

167572C1

CLIP, cable

13шт.

36

CABLE, micro switch to ground, use 2.5 in. of 14 ga wire from 100-ft roll marked 995055R1, one terminal 54771R2 and one terminal 54775R2

1шт.

37

161622C1

SUPPORT, straw chopper rear deflector

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

38

161628C1

EXTENSION, straw chopper rear deflector

1шт.

39

936124R1

DEFLECTOR

straw chopper left

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-tr-hd

4шт.

40

936125R1

DEFLECTOR

straw chopper right

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-tr-hd

4шт.

41

155131C1

DEFLECTOR

straw chopper left center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-tr-hd

2шт.

42

155132C1

DEFLECTOR, straw chopper right center

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-tr-hd

2шт.

43

168905C1

SUPPORT, warning horn switch

2шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
