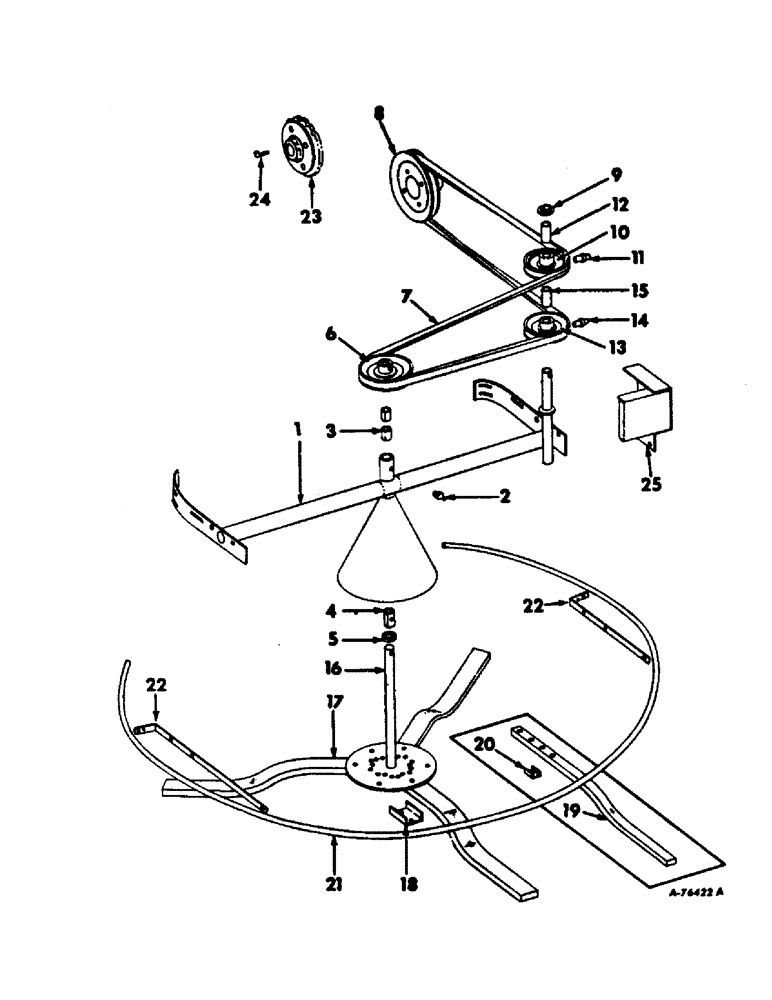

Запчасти Case IH 915 (R-56) - SEPARATOR, STRAW SPREADER Separation

1

169006C1

SUPPORT ASSY, straw spreader, includes ref. nos. 3 and 4, serial no. 2349 and below

1шт.

1

172097C91

SUPPORT ASSY, straw spreader, serial no. 2350 and above

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 hex-hd

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

21496R1

WASHER

.34 x .75 x .12

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

6шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga

3шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga

4шт.

22480R1

WASHER

29/32 x 1-1/2 x 22 ga

2шт.

2

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, 1/8-27 PTF 65 deg lub, serial no. 2349 and below

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , S/N 2350 and above 1/8"-27 x .66 lg

1шт.

3

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

straw spreader shaft upper

2шт.

4

589813R1

BUSHING

straw spreader shaft lower

1шт.

5

615499C91

OIL SEAL

straw spreader shaft oil

1шт.

6

21712K

PULLEY ASSY.

PULLEY ASSY, straw spreader driven 5-3/4 in OD

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21941R1

PIN, 5/16 x 1-7/8 C-Z std-hd

1шт.

7

161821C1

V-BELT,0.63" W x 210.71" L

Straw Spreader Drive, Serial No. 2349 and Below 0.63" W x 210.71" L

1шт.

7

589622R1

V-BELT,0.63" W

Straw spreader drive, Serial no. 2250 and above 0.63" W

1шт.

8

158987C11

PULLEY

ASSY, straw spreader drive 6.56 in OD

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

20362K

COLLAR

straw spreader shaft

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

10

17876K

PULLEY ASSY.

PULLEY w/BSHG, stw sprdr drv belt idler 5-1/8 in OD, includes ref. no. 12

1шт.

11

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive type STR lub

1шт.

12

18523K

BUSHING

STR sprdr drv blt idler pulley

1шт.

13

48252K

PULLEY ASSY.

PULLEY w/BSHG strw sprdr drv blt tghtnr 4-3/4 in OD, includes ref. no. 15

1шт.

14

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive type STR lub

1шт.

15

18523K

BUSHING

strw sprdr drv belt tghtnr pul

1шт.

16

568191R91

ROD

SHAFT ASSY, straw spreader

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

22480R1

WASHER

29/32 x 1-1/2 x 22 ga C-Z

1шт.

17

582809R2

STRIP

BAT, straw spreader heavy

3шт.

18

566475R1

CHANNEL

CLIP, straw spreader bat

3шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

19

582810R2

BAT

straw spreader light

3шт.

20

565871R1

CHANNEL

CLIP, straw spreader bat

6шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

21

628636R1

GUARD, straw spreader

1шт.

22

158978C1

SUPPORT, straw spreader guard

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

2шт.

23

166989C1

HUB & SPROCKET, straw spreader drive pulley 19T

1шт.

24

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 1-3/4 gib

1шт.

25

171733C1

SHIELD ASSY, straw spreader drive

1шт.
