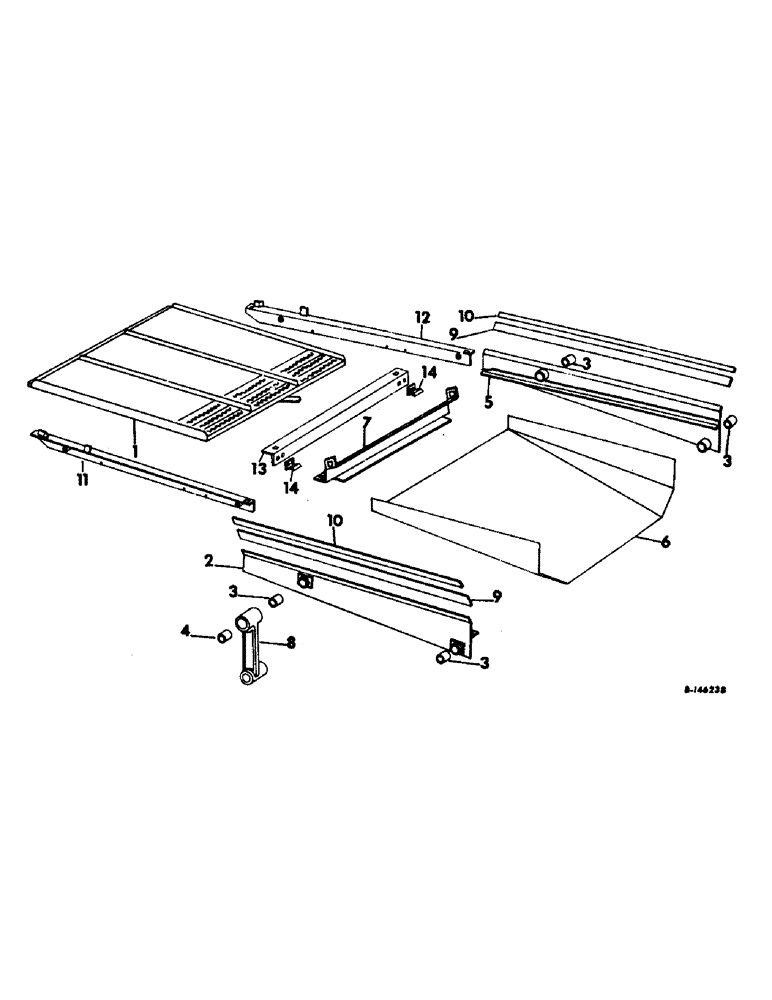

Запчасти Case IH 915 (R-54) - SEPARATOR, SHOE AND SHOE SIEVE Separation

1

158174C92

SIEVE

ASSY, shoe, serial no. 3179 and below

1шт.

1

172870C1

SIEVE

ASSY, shoe, serial no. 3180 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

170796C91

SECTION ASSY, shoe side LH, includes ref. nos. 3, 9 and 10, serial no. 3179 and below

1шт.

NLS

NO LONGER SERVICED

RIVET, 3/16 x 7/16 wag-box-hd (PN 135286)

20шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 small b-hd

8шт.

3

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe side, serial no. 3179 and below

4шт.

4

583768R91

COMPOSITE RING

BUSHING ASSY, shoe hanger arm, serial no. 1954 and below

2шт.

4

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, shoe hanger arm, 2 used for serial nos. 1955 thru 3179, 4 used for serial no. 3180 and above

2шт.

5

170797C1

SECTION ASSY, shoe side RH, includes ref. nos. 3, 9 and 10, serial no. 3179 and below

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 small b-hd

8шт.

6

165104C91

BOTTOM ASSY, shoe, serial no. 3179 and below

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

175157C1

BOTTOM ASSY, shoe, serial no. 3180 and above

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 znd hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

164664C91

SUPPORT, assy shoe, serial no. 3179 and below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

158167C11

ARM w/BUSHING, shoe hanger, includes ref. no. 4, serial no. 1954 and below

2шт.

8

170515C11

ARM w/BUSHING, shoe hanger front, includes ref. no. 4, serial nos. 1955 thru 3179

2шт.

8

175160C91

LEVER

ARM w/BUSHING, shoe hanger front, includes ref. no. 4, serail no. 3180 and above

2шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 C-Z sq-nk crg

2шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 znd hex-hd mach

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

2шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 SLT hex.

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

160084C1

SCREW, 5/8 x 4-1/4 C-Z hex-hd cap dld

2шт.

21217R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

SCREW, 5/8 x 4-1/2 C-Z hex-hd cap type 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

169256C1

DISC

WASHER, 5/8 x 1-1/4 x 18 ga C-Z

10шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

9

172962C1

SEAL

shoe side, serial no. 3179 and below

2шт.

9

175181C1

SEAL

shoe side, serial no. 3180 and above

2шт.

10

172963C1

BAR, shoe side seal, serial no. 3179 and below

2шт.

174448C1

RIVET, 5/32 x 1/2 pop

22шт.

10

175182C1

BAR

shoe sieve seal, serial no. 3180 and above

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

16шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

16шт.

11

175143C1

SUPPORT

ASSY, shoe side LH, serial no. 3180 and above

1шт.

12

175144C1

SUPPORT

ASSY, shoe side RH, serial no. 3180 and above

1шт.

13

175149C1

ANGLE

shoe front, serial no. 3180 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

172868C1

CLIP

front shoe support

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
