Запчасти Case IH 915 (R-52) - SEPARATOR, STRAW RACK RETURN PAN Separation

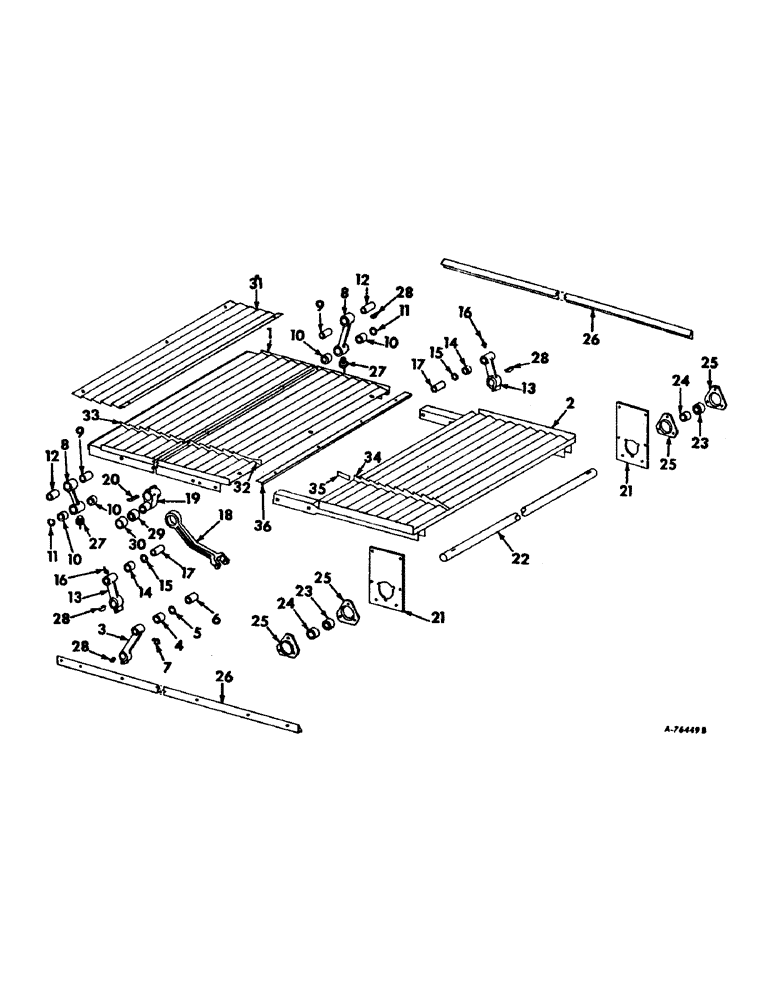

Схема запчастей Case IH 915 - (R-52) - SEPARATOR, STRAW RACK RETURN PAN Separation
15
28
28
16
8
9
32
16
14
10
23
35
31
21
23
20
26
28
21
13
4
19
28
5
34
11
12
12
33
8
14
15
9
17
22
25
6
10
10
27
25
26
30
27
36
7
25
3
18
24
24
11
17
25
10
2
13
29

Артикул

Название

Примечание

Количество

1

160052C93

PAN ASSY, strawrack return, serial no. 1290 and below

1шт.

1

171128C2

PAN ASSY, return w/o dividers, serial no. 1291 and above

1шт.

1

170402C1

PAN ASSY, return w/dividers, serial no. 1291 and above

1шт.

2

168094C3

PAN ASSY, strawrack return rear, serial no. 1290 and below

1шт.

2

171126C1

PAN ASSY, strawrack return rear, not for corn special, serial no. 1291 thru 2349

1шт.

2

170374C1

PAN ASSY, strawrack return rear, for corn special, serial no. 1291 thru 2349

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

11шт.

167749C1

NUT, 5/16 speed

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

3

160048C11

LEVER

ARM ASSY, straw rack return pan crank, includes ref. nos. 4 and 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

276574R91

NEEDLE BEARING

ASSY, return pan crank arm

2шт.

5

459035R91

SEAL

SEAL, straw rack return pan crank arm oil

2шт.

6

160047C1

BUSHING

SLEEVE, straw rack return pan crank arm

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 STR lub

1шт.

8

160040C11

ARM

ASSY, straw rack return pan fornt hanger, includes ref. nos. 9 and 10

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 hex-hd

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2 x 3-1/4 hex-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

9

160041C1

COMPOSITE RING

BUSHING, straw rack return pan front hanger arm

2шт.

10

276574R91

NEEDLE BEARING

ASSY, needle, serial no. 2349 and below

4шт.

10

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

straw rack, serial no. 2350 and above

1шт.

11

459035R91

SEAL

SEAL ASSY, straw rack return pan front hanger arm oil, serial no. 2349 and below

4шт.

12

160047C1

BUSHING

SLEEVE, straw rack return pan front hanger arm

2шт.

13

160049C11

ARM

ASSY, straw rack return pan rear hanger, includes ref. no. 14

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

276574R91

NEEDLE BEARING

ASSY, needle, serial no. 2349 and below

4шт.

14

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

straw rack, serial no. 2350 and above

1шт.

15

459035R91

SEAL

SEAL ASSY, straw rack return pan rear hanger arm oil, serial no. 2349 and below

4шт.

16

16964R91

FITTING

1/4-28 90 deg lub

2шт.

17

160047C1

BUSHING

SLEEVE, straw rack return pan rear hanger arm

2шт.

18

160050C1

ARM

straw rack return pan drive pitman

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2 x 3-1/2 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

157011C91

CRANK ASSY, straw rack return pan

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex jam

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 X 3/4 C-Z sq-hd cup-pt set

2шт.

107327

SET SCREW,Sq Hd, 5/16"-18 x 1"

SCREW, 5/16 x 1 C-Z sq-hd cup-pt set

1шт.

20

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

21

157034C1

STRIP, straw rack return pan bearing support

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

1шт.

22

160046C1

SHAFT, straw rack return pan

1шт.

23

160055C91

BALL BEARING,1.127" ID x 2.441" OD x 1.013"

BEARING ASSY, straw rack return pan crnakshaft

2шт.

24

572224R11

COLLAR

w/SET SCREW LKG

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

25

571425R1

FLANGED BEARING

straw rack return pan crankshaft brg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

26

168093C1

DEFLECTOR, strawrack return pan, serial no. 1290 and below

2шт.

26

170373C1

DEFLECTOR, strawrack return pan, serial no. 1291 and above

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

24шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z SLT truss hd

24шт.

27

16964R91

FITTING

1/4-28 90 deg lub

2шт.

28

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

4шт.

29

455960R91

BALL BEARING

BEARING ASSY, straw rack return pan drive pitman

1шт.

30

557115R11

COLLAR

COLLAR w/SET SCREW LKG

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup pt-set

1шт.

31

170510C1

BOTTOM, return pan front ext

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

5шт.

32

170400C1

RISER, straw rack front return pan front

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

12шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 C-Z slt-pan-hd

12шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

12шт.

33

168330C1

RISER, straw rack front return panel rear

12шт.

120361

NUT,Hex Mach Screw, #10 - 24

36шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 C-Z slt-pan-hd

36шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

36шт.

34

170371C1

RISER, straw rack return pan

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 C-Z slt-pan-hd

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

35

171849C1

DEFLECTOR, straw rack rear return pan

8шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 C-Z slt-pan-hd

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

36

174546C1

ANGLE, straw rack return pan rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

63226R1

SCREW, 5/16 x 1/2 C-Z slt-truss-hd

3шт.

Выбрано товаров: 97
