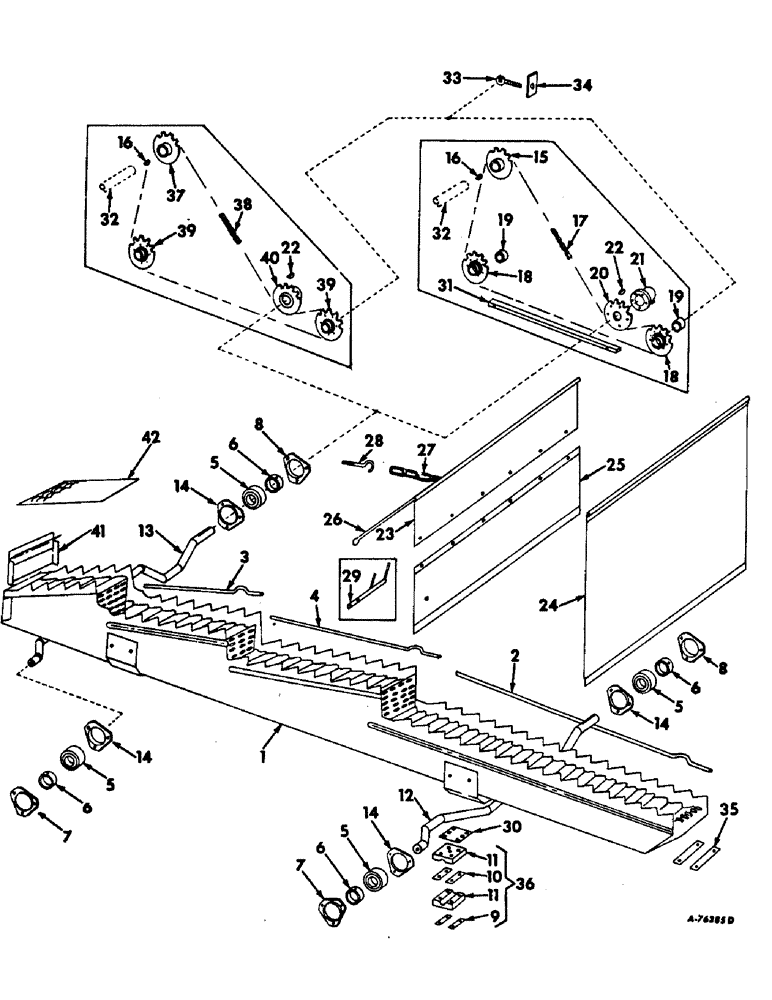

Запчасти Case IH 915 (R-49) - SEPARATOR, STRAW RACK AND DRIVE Separation

1

157964C92

DIVIDER

RACK ASSY, straw, includes ref. nos. 2, 3, 4, 41 and 42

5шт.

2

157976C1

ELECTRICAL WIRE

WIRE, straw rack riser rear

25шт.

3

937300R1

ELECTRICAL WIRE

WIRE, straw rack riser front center

25шт.

4

937301R1

ELECTRICAL WIRE

WIRE, straw rack riser center

25шт.

5

164774C91

BEARING

ASSY, straw rack crankshaft, serial no. 2349 and below

4шт.

5

611583R91

BALL BEARING

BEARING ASSY, straw rack crankshaft, serial no. 2350 and above

4шт.

6

517645R11

COLLAR

w/SET SCREW, lkg

4шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup

4шт.

7

473091R91

FLANGE

w/STR LUB FITTING, straw rack crankshaft LH brg, serial no. 2349 and below

2шт.

7

571426R1

PLATE

FLANGE, straw rack crankshaft LH brg, serial no. 2350 and above

2шт.

8

939462R91

FLANGE

w/65 DEG LUB FITTING, straw rack crankshaft RH brg, serial no. 2349 and below

2шт.

8

571426R1

PLATE

FLANGE, straw rack crankshaft RH brg, serial no. 2350 and above

2шт.

9

157059C1

BAR

STRAP, straw rack crankshaft brg bolt lock

20шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 C-Z sq-nk crg

40шт.

120373

NUT, 5/16 C-Z sq

40шт.

10

607065R1

GASKET

SHIM, straw rack crank shaft brg block

40шт.

11

BLOCK, straw rack crankshaft brg, (not serviced separately) order package assy 166067R91

20шт.

Item #11-pkg assy part number should be 166067c91.

1шт.

12

162499C1

CRANKSHAFT, straw rack rear

1шт.

13

162498C1

CRANKSHAFT, straw rack front

1шт.

14

473092R1

FLANGED BEARING

straw rack crankshaft grooved, serial no. 2349 and below

4шт.

14

571426R1

PLATE

FLANGE, straw rack crankshaft brg, serial no. 2350 and above

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

15

160616C91

SPROCKET ASSY, straw rack drive 19T, serial no. 1679 and below

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 C-Z std-hd

1шт.

16

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff, hardened

1шт.

17

CHAIN ASSY, straw rack drive, serial no. 1679 and below, use 181 links from 10-ft roll marked 611362R91, one offset link 612612R91, one roller link 612611R91 and two connecting links 574532R91

1шт.

18

154113C91

DRIVE SPROCKET

SPROCKET ASSY, straw rack drive idler and tightener 18T, serial no. 1679 and below

2шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 C-Z sq-nk crg

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

5шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

19

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

straw rack drive idler and tightener sprocket, serial no. 1679 and below

2шт.

20

160754C1

SPROCKET, strawrack driven 35T, for grain and corn special, serial no. 1679 and below

1шт.

20

161915C1

SPROCKET, straw rack driven 40T, for bean, rice & windrow special, serial no. 1679 and below

1шт.

21

160756C1

HUB, strawrack driven sprocket, serial no. 1679 and below

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

5шт.

20897R1

BOLT,Short NK, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

5шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

23

157184C2

VALVE BLOCK

SECTION, separator front check flap

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

136661H

WASHER

17/64 x 1 x 16 ga

1шт.

24

157182C1

FLAP

separator rear check, not used on corn special w/straw chopper

1шт.

24

175033C1

FLAP

separator rear check, for corn special w/straw chopper

1шт.

25

157181C2

FLAP

separator front check

1шт.

26

157177C1

ROD

separator check flap

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

27

157178C91

CHAIN, separator front check flap adjustment

1шт.

18627R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT, 1/4 x 1 C-Z sq-nk crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

28

H59564

PIN

separator front check flap adjustment chain

1шт.

29

160029C91

RISER ASSY, strawrack, standard for rice special

20шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

40шт.

120376

NUT,5/16"-18, G5

40шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

40шт.

30

160004C1

BAR

PLATE, strawrack rear saddle

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg.

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

10шт.

31

167272C1

GUIDE, straw rack drive chain, serial no. 1679 and below

1шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

32

JACKSHAFT, elevator drive, refer to section S grain elevator drive unit for listing

1шт.

33

578609R1

BOLT,7/16" - 14 x 5"

straw rack drive chain tightener

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

34

935157R1

STRIP, straw rack drive chain tightener bolt

1шт.

35

168494C1

SHIM

straw rack

20шт.

36

166067C91

STRIPPER PACKAGE

PACKAGE, straw rack crankshaft brg, includes ref. nos. 9, 10 and 11

1шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 C-Z sq-nk crg

4шт.

120373

NUT, 5/16 C-Z req sq

4шт.

37

170426C2

SPROCKET ASSY.

SPROCKET ASSY, strawrack drive, 23 T, serial no. 1680 and above

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2-1/4 C-Z std-hd

1шт.

38

CHAIN ASSY, strawrack drive, serial no. 1680 and above, use 221 links from 10 ft roll marked 1791D and 1 connecting link 1310D

1шт.

39

631905R91

SPROCKET

ASSY, strawrack drive idler and tightener 17T, serial no. 1680 and above

2шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

1шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 C-Z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

40

170764C1

SPROCKET ASSY, strawrack driven 47T, for bean, rice & windrow special, serial no. 1680 and above

1шт.

40

170762C1

SPROCKET ASSY.

SPROCKET ASSY, strawrack driven 42T, for grain and corn special, serial no. 1680 and above

1шт.

40

173139C1

SPROCKET ASSY, strawrack driven 39T, fast speed

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex. jam

1шт.

22339R1

SCREW, 5/16 x 1-1/4 C-Z sq-hd cup-pt

1шт.

41

196133C1

REINFORCEMENT, straw rack front

5шт.

42

196136C1

SIEVE

GRILLE, straw rack front center

5шт.
