Запчасти Case IH 915 (R-43) - SEPARATOR, GRAIN PAN AND SHAKER SHAFT, SERIAL NO. 3179 AND BELOW Separation

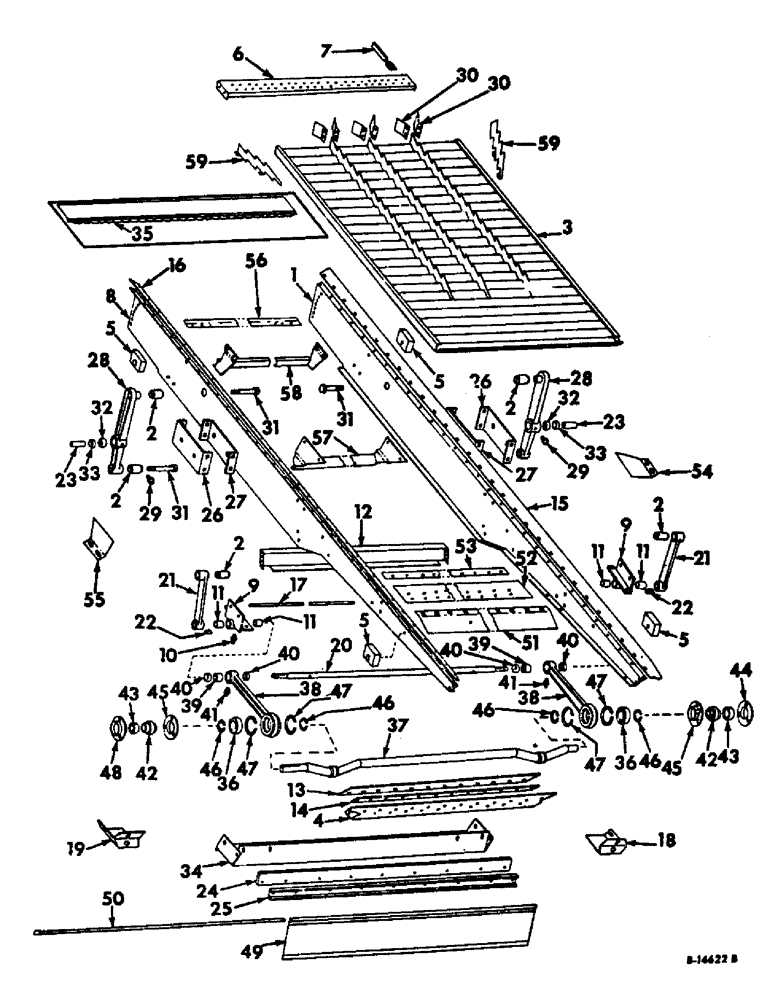

Схема запчастей Case IH 915 - (R-43) - SEPARATOR, GRAIN PAN AND SHAKER SHAFT, SERIAL NO. 3179 AND BELOW Separation
47
40
59
13
54
16
46
39
32
43
30
9
29
5
49
23
14
2
58
45
11
27
5
36
59
5
32
1
55
20
2
21
4
56
3
42
31
9
30
38
40
6
22
29
47
24
36
28
34
40
33
48
40
11
26
57
17
43
27
26
2
44
41
2
46
45
50
2
21
42
47
53
47
7
18
51
31
19
46
11
39
10
28
46
31
23
41
33
5
37
35
25
15
52
11
38
22
12

Артикул

Название

Примечание

Количество

158038C94

PAN ASSY, grain, includes ref. nos. 1 thru 19

1шт.

1

158039C91

RAIL ASSY, grain pan left

1шт.

2

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, grain pan hanger

6шт.

3

158047C92

BOTTOM

ASSY, grain pan

1шт.

3

158048C92

BOTTOM ASSY, grain pan, perforated, bean special

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

13шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 C-Z pan-hd sltd mach

8шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

11шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt pan hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

13шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

2шт.

4

158057C1

REINFORCEMENT, grain pan front

1шт.

5

158058C1

BOARD, grain pan rail

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

4шт.

6

158060C1

REINFORCEMENT, grain pan finger

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

4шт.

120214R1

WASHER

5/16 C-Z med lock

4шт.

619885R1

WASHER, 11/32 x 3/4 x 16 ga C-Z

4шт.

7

155214C1

FINGER

grain pan

28шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

56шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

56шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

56шт.

8

158040C91

RAIL ASSY, grain pan right

1шт.

9

158063C91

HUB ASSY, grain pan support, includes ref. nos. 10 and 11

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 PTF STR lub

2шт.

11

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

grain pan front shaft hub

4шт.

12

170758C1

SUPPORT ASSY, chaffer

1шт.

120376

NUT,5/16"-18, G5

8шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex hd cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

13

158069C1

SEAL

grain pan front

1шт.

14

158071C1

BAR

grain pan front seal

1шт.

NLS

NO LONGER SERVICED

1/4-20 spring type 1B

15шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd

15шт.

15

158072C1

SEAL

grain pan side

2шт.

16

158073C1

BAR, grain pan side seal

4шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd tapping washer faced

56шт.

20824R1

WASHER

11/32 x 1-1/2 x 16 ga C-Z

2шт.

17

158075C1

ROD, grain pan bottom cross

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

162010C1

FILLER, grain pan left

1шт.

19

162011C1

FILLER, grain pan right

1шт.

20

158077C1

SHAFT, grain pan front

1шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 SLT hex.

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

520175R1

CLIP

PIN, q-a cotter

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

4шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

2шт.

21885R1

WASHER

1-1/32 x 2 x 16 ga C-Z

8шт.

21

158078C11

ARM ASSY, grain pan front, includes ref. no. 2

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

2шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

SCREW, 5/8 x 2-3/4 C-Z hex-hd cap type 4

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

4шт.

22

106751

KEY

3/16 x 3/4 Woodruff

2шт.

23

158079C1

BUSHING

grain pan hanger arm

2шт.

24

158083C1

SEAL

feeder housing lower, grain, rice & windrow special

1шт.

25

168596C1

CHANNEL, feeder housing lower seal, grain and rice special combines

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

450629

SCREW, 1/4 x 7/8 C-Z slt-pan-hd mach

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

9шт.

26

160334C1

REINFORCEMENT, grain pan rear lever outer

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

160334C11

REINFORCEMENT ASSY, grain pan rear lever inner

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Q1595

WASHER, 21/32 x 1-3/4 x 11 ga sq

2шт.

28

158085C11

LEVER ASSY, grain pan rear, includes ref. nos. 32 and 33

1шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/2 C-Z sq-nk crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

2шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

4шт.

29

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 PTF 45 deg angle lub

2шт.

30

171701C1

SHIELD, chaffer divider, standard for corn special

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

12шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

12шт.

31

160084C1

SCREW, 5/8 x 4-1/4 C-Z hex-hd cap

4шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 C-Z SLT hex.

4шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

6шт.

32

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING ASSY, grain pan rear lever needle

4шт.

33

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

ASSY, grain pan lever oil

4шт.

34

165524C91

SUPPORT ASSY, grain pan front seal & lower feeder, grain, rice & windrow special

1шт.

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

SCREW, 5/16 x 1 C-Z hex-hd self tap

2шт.

35

160219C2

COVER, grain pan finger

1шт.

36

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft ball

2шт.

37

582754R91

SHAFT

ASSY, shaker shaft

1шт.

38

150863C11

PITMAN ASSY, shaker shaft, includes ref. nos. 39 and 40, serial no. 3179 and below

2шт.

39

584164R91

NEEDLE BEARING

shaker shaft pitman needle

2шт.

40

584912R91

OIL SEAL

shaker shaft pitman brg oil

4шт.

41

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/8-27 PTF STR lub

2шт.

42

670373R91

BALL BEARING,1.1255" ID x 62 mm OD x 1.4375"

ASSY, shaker shaft

2шт.

43

557115R11

COLLAR

COLLAR w/SET SCREW lkg

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd set

2шт.

44

470745R91

FLANGED BEARING

FLANGE w/STR LUB FITTING, shaker shaft LH brg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

45

470746R1

FLANGE

shaker shaft brg grooved

2шт.

46

359894R1

RING, SNAP

RING, shaker shaft pitman brg external

4шт.

47

UA20551

RING

shaker shaft pitman brg internal

4шт.

48

167878C11

FLANGE

w/65 deg lub fitting shaker shaft RH brg, serial no. 1249 and below

1шт.

48

470745R91

FLANGED BEARING

FLANGE w/STR lub fitting shaker shaft RH brg, serial no. 1250 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

49

582606R21

FLAP

ASSY, grain pan check

1шт.

50

157177C1

ROD

grain pan check flap

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

51

170761C1

SEAL, grain pan to plenum box

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

7шт.

52

165660C1

STRIP

SEAL, grain pan & plenum air

1шт.

53

167920C1

STRIP, grain pan & plenum seal retainer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

6шт.

54

168026C1

DEFLECTOR, grain pan left

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

55

168027C1

DEFLECTOR, grain pan right

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

56

168740C1

STIFFENER, grain pan to plenum box seal

1шт.

57

170771C2

DEFLECTOR ASSY, front wind, serial no. 1250 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

58

170777C3

DEFLECTOR

ASSY, rear wind, serial no. 1250 and above

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

4шт.

59

170602C1

RISER, grain pan rear, standard for corn special

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10-24 x 1/2 C-Z slt-pan hd mach

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

Выбрано товаров: 153
