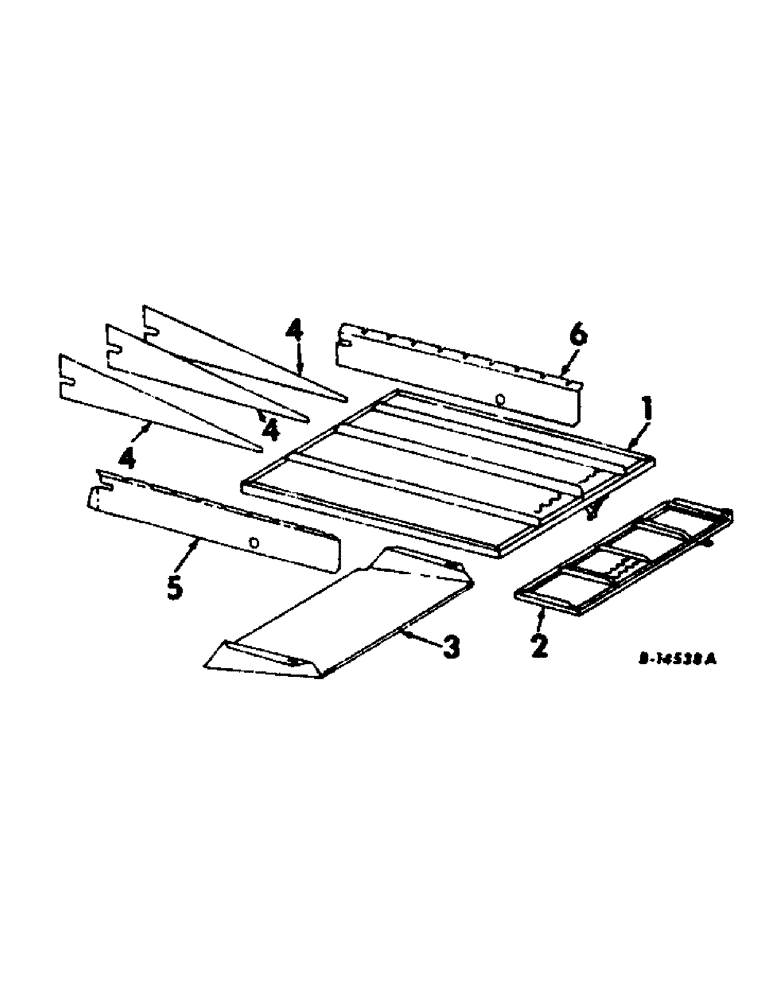

Запчасти Case IH 915 (R-42) - SEPARATOR, CHAFFER SIEVE AND EXTENSION, SERIAL NO. 3179 AND BELOW Separation

1

158439C93

SIEVE ASSY, chaffer 1-1/8 adj, standard

1шт.

1

158438C93

SIEVE ASSY, chaffer 1-5/8 adj, parts accessories

1шт.

1

158440C93

SIEVE ASSY, chaffer 1-1/8 adj Peterson type, parts accessories

1шт.

1

158441C93

SIEVE ASSY, chaffer 1-5/8 adj cor slat, standard for corn special

1шт.

1

158442C91

SIEVE ASSY, chaffer 7/16 x 15/16 slot, parts accessories

1шт.

1

158976C91

SIEVE ASSY, chaffer 3/4 dia. holes, parts accessories

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

2

158444C93

SIEVE

ASSY, chaffer extension 1-1/8 in. adjustable, standard

1шт.

2

167568C92

SIEVE ASSY, chaffer extension 1-5/8 in. round end cornslat, standard for corn special

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

22639R1

NUT, 1/4 C-Z hex lock

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan hd sltd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

164749C91

PAN ASSY, chaffer return, parts accessories

1шт.

4

170603C1

DIVIDER, chaffer sieve, standard for corn special

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

21шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

21шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

21шт.

5

170604C2

STRIP, chaffer shed LH, standard for corn special

1шт.

6

170605C2

STRIP, chaffer shed RH, standard for corn special

1шт.
