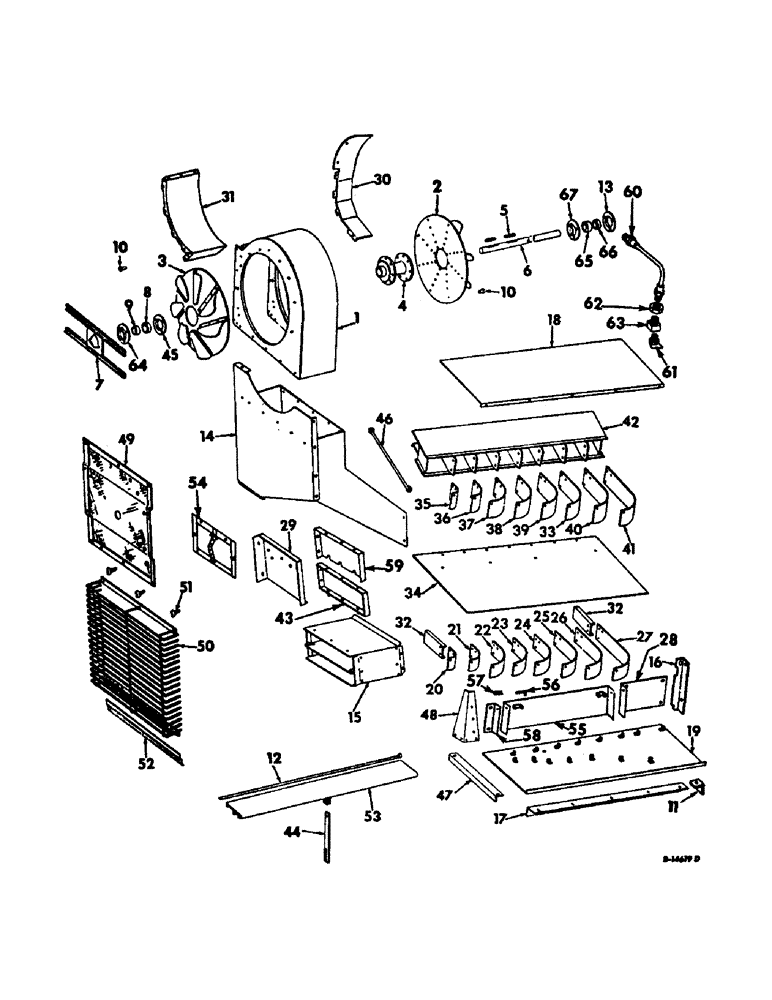

Запчасти Case IH 915 (R-36) - SEPARATOR, FAN AIR DUCT Separation
№
Артикул
Название
Примечание
Количество
1
160166C91
HOUSING ASSY, fan
1шт.
2
160170C91
FAN ASSY, includes ref. no. 10
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znp hex-hd mach
8шт.
120376
NUT,5/16"-18, G5
8шт.
436732
SCREW,Slotted Pan Hd, #10-24 x 1/2"
no. 10-24 x 1/2 C-Z pan-hd SLT mach, for balance
1шт.
440-11010
SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"
no. 10-24 x 5/8 C-Z pan-hd SLT mach, for balance
1шт.
607893R1
WASHER
13/64 x 1/2 x 16 ga
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
3
160171C91
FAN
ASSY, right, includes ref. no. 10
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znp hex-hd mach
8шт.
120376
NUT,5/16"-18, G5
8шт.
436732
SCREW,Slotted Pan Hd, #10-24 x 1/2"
no. 10-24 x 1/2 C-Z pan-hd SLT mach, for balance
1шт.
440-11010
SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"
no. 10-24 x 5/8 C-Z pan-hd SLT mach, for balance
1шт.
607893R1
WASHER
13/64 x 1/2 x 16 ga
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
4
165047C1
HUB, fan
1шт.
NLS
NO LONGER SERVICED
5/16 C-Z hex jam
2шт.
107327
SET SCREW,Sq Hd, 5/16"-18 x 1"
SCREW, 5/16 x 1 cup pt sq hd set
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
16шт.
5
23875R1
KEY,5/16" Sq x 6 1/2", Par
5/16 x 6.5 sq
1шт.
6
160831C1
SHAFT
fan
1шт.
7
161754C91
SUPPORT ASSY, fan shaft outer brg
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
4шт.
120376
NUT,5/16"-18, G5
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
8
473097R91
BEARING
ASSY, fan shaft outer
1шт.
9
455104R11
COLLAR
ASSY, locking w/set screw
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 cup pt hex-soc-hd
1шт.
10
167426C1
RIVET, cleaning fan
64шт.
11
632060R1
ANGLE, plenum box left side retainer, serial no. 1504 and below
1шт.
638017R1
NUT, 5/16 C-Z flange lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
1шт.
11
584995R1
ANGLE, plenum box left side retainer, serial no. 1505 and above
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 11/32 x 11/16 x 16 ga C-Z
1шт.
12
157177C1
ROD
fan wind deflector
1шт.
13
670375R11
FLANGE
W/LUB FITTING, fan shaft inner bearing, serial no. 1249 and below
1шт.
13
473091R91
FLANGE
W/STR LUB FITTING, fan shaft inner brg, serial no. 1250 thru 1901
1шт.
13
489871R1
FLANGE
W/ADAPTER FITTING, fan shaft inner brg, serial no. 1902 and above
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg.
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
14
160769C91
DUCT ASSY, fan center air
1шт.
14
170295C1
DUST ASSY, fan center air, optional for use w/air duct door
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
5шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 slt-truss-hd
1шт.
15
160787C92
DUCT ASSY, fan air lower
1шт.
120376
NUT,5/16"-18, G5
3шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z whiz lock
4шт.
172455
SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"
SCREW, 5/16 x 3/4 hex-hd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
16
160967C1
ANGLE, plenum box front, serial no. 1504 and below
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
17
160931C1
ANGLE, plenum box rear, serial no. 1504 and below
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
8шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z SLT truss hd
8шт.
18
160934C11
SIDE ASSY, plenum box top
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss-hd
1шт.
19
160935C11
SIDE ASSY, plenum box bottom
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
4шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flnage lock
1шт.
120376
NUT,5/16"-18, G5
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss-hd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
20
165076C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
21
165077C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
22
165078C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
23
165079C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
24
165080C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
25
165081C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
26
165082C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
27
165100C1
DEFLECTOR, plenum box left lower
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 flange lock
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 slt-truss-hd
1шт.
28
170562C1
SHEET, plenum box left front
1шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT, 1/4 x 1/2 C-Z sq-nk crg
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
29
160767C2
SIDE, plenum box filler, serial no. 1249 and below
1шт.
29
170884C1
SIDE, plenum box filler, serial no. 1250 and above
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex hd mach
4шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 C-Z hex hd mach
2шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
30
163830C1
SHIELD, fan housing blade
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
2шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
2шт.
31
163831C11
HOUSING ASSY, fan lower
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
14шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
51/6 x 1/2 C-Z slt-truss-hd
14шт.
32
165090C1
CHANNEL, lower
8шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
8шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss-hd
8шт.
33
165099C1
DEFLECTOR, top left
1шт.
18653R1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
1/4 x 1/2 C-Z hex-hd mach
1шт.
564791R1
SPRING NUT
1/4 speed
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
4шт.
34
165158C11
SHEET ASSY, plenum box center
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
35
165083C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
36
165084C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
37
165085C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
38
165086C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
39
165087C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
4шт.
40
165088C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
4шт.
41
165089C1
DEFLECTOR, plenum box
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z flange lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
4шт.
42
165162C92
DEFLECTOR ASSY, center
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
2шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z SLT truss hd
2шт.
43
165299C1
SHEET, air duct filler, serial no. 1249 and below
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
5шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
5шт.
44
165091C1
BAR, windboard adj
1шт.
585614R1
PIN
qa cot.
2шт.
M92150
PIN
5/16 x 3/4 STD hd
2шт.
45
473092R1
FLANGED BEARING
fan shaft outer bearing
1шт.
46
167992C1
BRACE, fan air duct
1шт.
18655R1
BOLT,Hex, 1/4"-20 x 1", G2
1/4 x 1 znd hex-hd mach
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
47
167994C1
ANGLE, plenum box lower right side
1шт.
48
167993C1
SUPPORT, fan housing, standard
1шт.
49
160826C91
SCREEN ASSY, separator fan
1шт.
565093R1
SCREW
1/4 x 3/4 znp washer face hex-hd
10шт.
21870R1
WASHER
17/64 x 3/4 x 16 ga C-Z
10шт.
50
167584C2
SCREEN ASSY, separator fan bar, separator fan bar screen attach
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
52
167583C1
SUPPORT, separator fan bar screen, separator fan bar screen attach
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
3шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z whiz lock
3шт.
53
165096C91
SUPPORT
WINDBOARD ASSY, fan lower
1шт.
54
DOOR ASSY ATTACHMENT, fan air duct, optional, for service order, 170314C91 door attach
1шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 znd hex-hd mach
4шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
1шт.
120376
NUT,5/16"-18, G5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
12шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z whiz lock
12шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
55
170555C1
DOOR ASSY, plenum box front
1шт.
56
611044R1
AXLE PIN,6.35mm OD
PIN, locking
2шт.
121223
COTTER PIN,1/16" x 3/4"
PIN, SPLIT (COTTER), 1/16" x 3/4"
2шт.
21784R1
WASHER
17/64 x 1/2 x 16 ga C-Z
2шт.
57
606245R1
SPRING
locking pin
2шт.
58
170563C1
ANGLE, plenum front door
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
2шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z whiz lock
2шт.
59
170883C1
SHEET, air duct filler, serial no. 1250 and above
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock
5шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
2шт.
60
168361C1
HOSE,0.14" ID x 19.00"
- Fan shaft inner brg lub, S/N 1902 and above 0.14" ID x 19.00"
1шт.
61
LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF
FITTING, 1/4-28 45 deg lube, S/N 1902 and above
1шт.
63
21450R1
ADAPTER,1/4"-1/8 NPTF
1/4-28 STR lub fitting, serial no. 1902 and above
1шт.
64
473091R91
FLANGE
w/STR LUB FITTING, fan shaft outer brg
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
65
156010C91
BEARING
ASSY, fan shaft inner, serial no. 1249 and below
1шт.
65
473097R91
BEARING
ASSY, fan shaft inner, serial no. 1250 and above
1шт.
66
557995R11
COLLAR
ASSY, locking w/set screw, serial no. 1249 and below
1шт.
66
455104R11
COLLAR
ASSY, locking w/set screw, serial no. 1250 and above
1шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 hex-soc-hd
1шт.
67
939461R1
FLANGE
fan shaft inner brg, serial no. 1249 and below
1шт.
67
473092R1
FLANGED BEARING
fan shaft inner bearing, serial no. 1250 and above
1шт.
Выбрано товаров: 205
