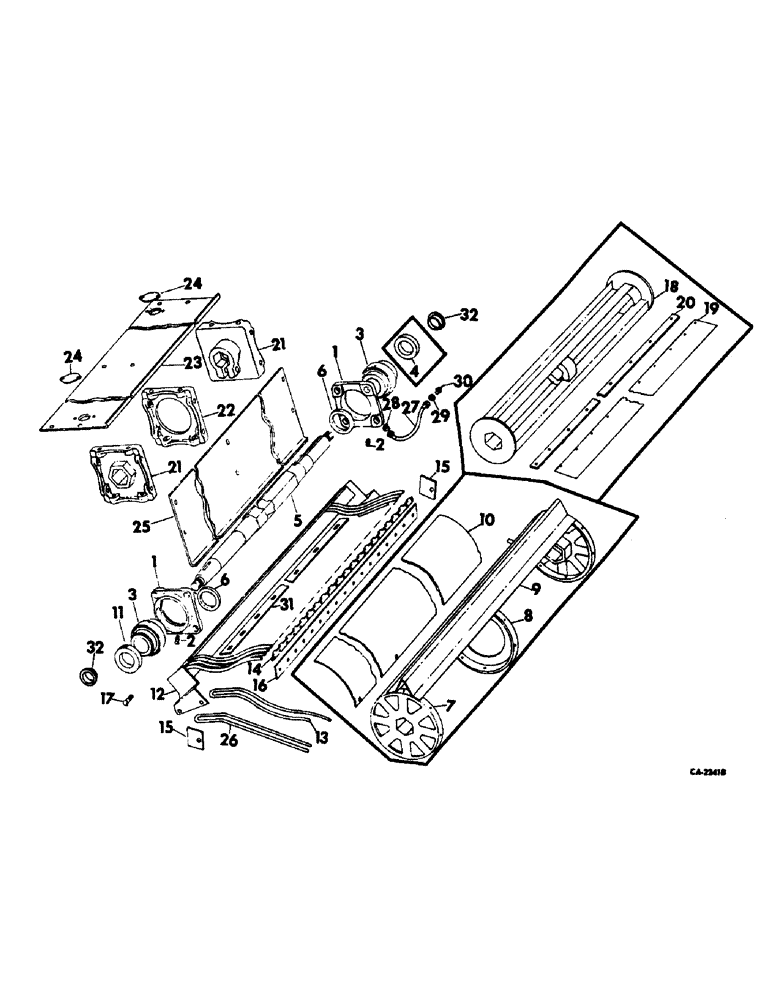

Запчасти Case IH 915 (R-31) - SEPARATOR, CYLINDER BEATER AND GRATE Separation

1

160073C11

HOUSING ASSY, cyl beater brg, serial no. 2115 and below, includes ref. nos. 3 and 4

2шт.

1

172317C11

HOUSING

ASSY, cyl beater brg, serial no. 2116 and above, includes ref. no. 3

2шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-45 deg lub, not used w/lub hose on RH brg

2шт.

3

160080C91

BALL BEARING,2.188" ID x 100 mm OD x 2.1875"

BEARING ASSY, cyl beater ball, serial no. 2115 and below

2шт.

3

172406C91

BEARING ASSY,55.56mm ID x 100mm OD x 25mm W

cyl beater ball, serial no. 2116 and above

2шт.

4

160082C91

SEAL

SEAL, cyl beater brg, serial no. 2115 and below

2шт.

5

160196C31

SHAFT

ASSY, cylinder beater

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 C-Z hex lock

2шт.

577129R1

WASHER, 1-1/32 x 2 x 3/16

2шт.

24552R1

WASHER

1-1/32 x 2 x 22 ga C-Z

5шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

U14294

WASHER

1-15/16 x 2-7/8 x 16 ga

5шт.

23918R1

WASHER, 2-7/32 x 3 x 16 ga

7шт.

6

160236C1

BUSHING

SPACER, cylinder beater shaft inner, 2 used on serial no. 2670 and below, 1 used right side serial no. 2671 and above

1шт.

7

160074C1

HUB, cyl beater outer, serial no. 2670 and below

2шт.

8

166987C1

HUB, cyl beater center, serial no. 2670 and below, grain, rice & windrow special

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

469668R1

WASHER

13/32 x 1 x 16 ga

24шт.

9

157999C1

COVER, cyl beater strip, serial no. 2670 and below

4шт.

10

157995C91

STRIP ASSY, cyl beater LH, serial no. 2670 and below

2шт.

10

157997C91

STRIP ASSY, cyl beater RH, serial no. 2670 and below

2шт.

11

612023R11

COLLAR ASSY.

COLLAR ASSY, cyl beater shaft bearing LH lkg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd

1шт.

12

157930C95

GRATE

ASSY, cylinder beater finger, includes ref. nos. 14, 16 and 26, not windrow special

1шт.

12

175846C91

GRATE ASSY, cylinder beater grate, includes ref. nos, 13, 14 and 16, for windrow special

1шт.

13

170418C2

FINGER

cyl beater grate

27шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

27шт.

120377

NUT,3/8" - 16, Gr 5

27шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

27шт.

14

582715R1

CLAMP, cyl beater grate finger

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

15

568276R1

SEAL, cyl beater finger grate adjusting slot

2шт.

16

170534C1

STRAP, finger clamp

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

27шт.

120377

NUT,3/8" - 16, Gr 5

27шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

27шт.

17

152257C2

BOLT, cyl beater finger grate mounting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

161934C91

BEATER ASSY, cyl, flexible blade cyl beater att

1шт.

19

161937C1

FLAP, cyl beater, flexible blade cyl beater att

4шт.

20

161938C1

BAR, cyl beater flap, flexible blade cyl beater att

4шт.

120376

NUT,5/16"-18, G5

32шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

32шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

32шт.

21

174769C1

HUB

cylinder beater end, serial no. 2671 and above

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22

174770C1

HUB, cylinder beater center, serial no. 2671 and above

1шт.

23

174773C1

BLADE

cylinder beater first, serial no. 2671 and above

1шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znd hex-hd flange lock

6шт.

24

634728R1

COVER

hub bolt access hole, serial no. 2671 and above

2шт.

172427

SHIELD

1/4 x 1/2 C-Z hex-hd tap

4шт.

25

174774C1

BLADE

cylinder beater, serial no. 2671 and above

3шт.

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

SCREW, 1/2 x 1 znd hex-hd flange lock

18шт.

26

174767C2

FINGER

cylinder beater grate, not for windrow special

27шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

27шт.

120377

NUT,3/8" - 16, Gr 5

27шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

27шт.

27

937776R91

HOSE,0.14" ID x 14.00"

Lube, Cylinder Beater Shaft Right-Hand Bearing 0.14" ID x 14.00"

1шт.

28

21450R1

ADAPTER,1/4"-1/8 NPTF

lub fitting

1шт.

29

581873R1

TUBE NUT,4.8 mm Length

cyl beater shaft right brg lub hose

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS lub STR.

1шт.

31

153182C1

STRAP CYL BEATER FINGER GRATE TIE, cylinder beater finger grate tie strap attachment

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

13шт.

32

177299C1

RING

cylinder beater bearing, serial no. 3180 and above

2шт.
