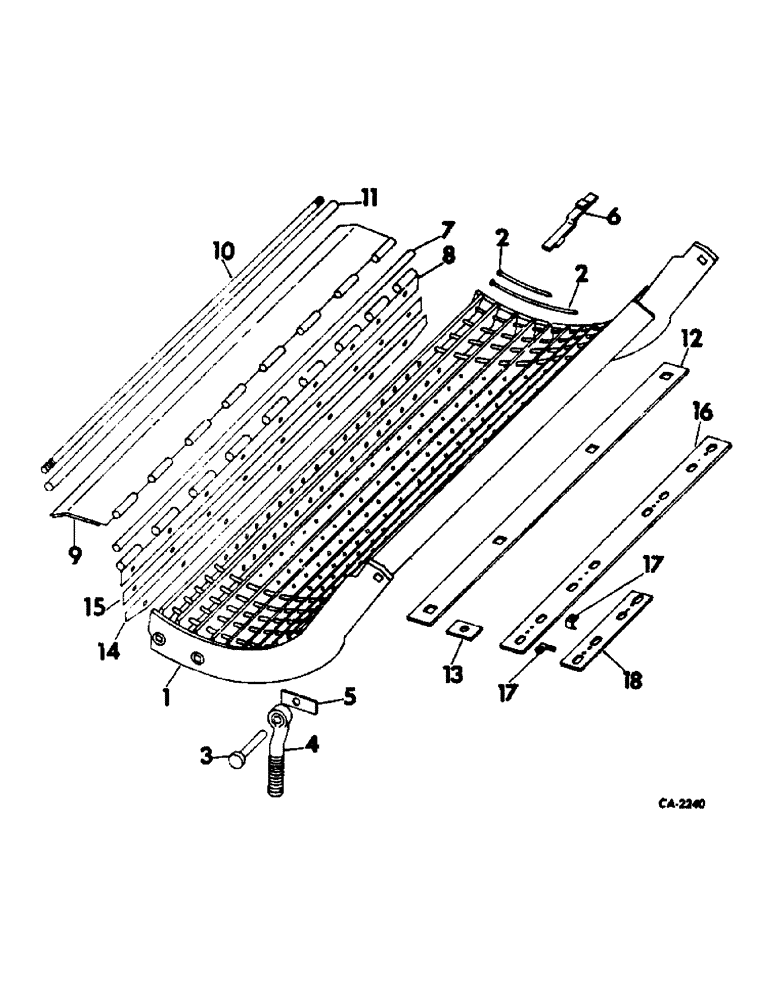

Запчасти Case IH 915 (R-29) - SEPARATOR, CONCAVE AND EXTENSION Separation

1

174562C91

CONCAVE ASSY, high wire, includes ref. no. 2, standard for corn special comb, special for rasp bar cylinder not for windrow special

1шт.

1

633581R93

CONCAVE

ASSY, low wire, includes ref. no. 2, standard for rasp bar cylinder and for grain and windrow special

1шт.

2

564023R1

ELECTRICAL WIRE

ROD, concave plain, low wire, standard for grain & windrow special

59шт.

2

588837R1

ROD

concave plain, hi wire 3/16 in. dia wire, special not windrow special

59шт.

2

174556C1

ELECTRICAL WIRE

ROD, concave plain, hi wire 1/4 in. dia wire, special not windrow special

53шт.

3

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 no. 3 plow

6шт.

21434R1

NUT,5/8"-11, G8

5/8 C-Z hex.

6шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

4

157641C1

BOLT, concave rear adj, for corn specila machines

2шт.

280954

NUT,3/4"-10, G5

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.65 x 1.3 x .12 ga C-Z

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga

1шт.

5

565572R1

SEALING STRIP

concave rear adj bolt slot

2шт.

6

634626R91

SUPPORT

GAGE ASSY, concave and cyl check

1шт.

7

589528R1

ROD, concave front extension hinge

1шт.

8

629686R1

HINGE

concave front extension

1шт.

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

SCREW, 1/2-20 x 3/4 hex-hd

1шт.

181696

1/2-20 x 1 C-Z hex-hd cap

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

9

589523R91

EXTENSION ASSY, concave front, for grain, rice & corn special w/quick attachfeeder

1шт.

9

589524R1

EXTENSION, concave front, for grain, rice & corn special w/bolt attach feeder

1шт.

9

634253R1

EXTENSION, concave front, windrow special

1шт.

10

151187C1

ROD, cocave extension support

1шт.

482253R1

NUT, 1/2 flange lock

1шт.

11

160929C1

PIPE, concave extension support, for grain, rice & corn special

1шт.

12

654924R1

BAR

STRAP, concave filler, special

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3587H

WASHER, 13/32 x 9/16 x 16 ga

1шт.

13

585209R1

WASHER, concave filler strap bolt

12шт.

14

632069R1

RETAINER, concave rod front

1шт.

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

1/2 x 3/4 hex-hd mach

7шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

15

634640R1

RETAINER, concave front extension, for grain, rice & corn special

1шт.

16

174547C91

STRIP

ASSY, concave filler, for use w/1/4 inch dia wire concave rod

1шт.

17

174549C1

CLIP

concave filler strip, for use w/1/4 inch dia wire concave rod

72шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 b-hd

72шт.

18

174550C91

STRIP

ASSY, concave filler, short, for use w/1/4 inch dia wire concave rod

6шт.
