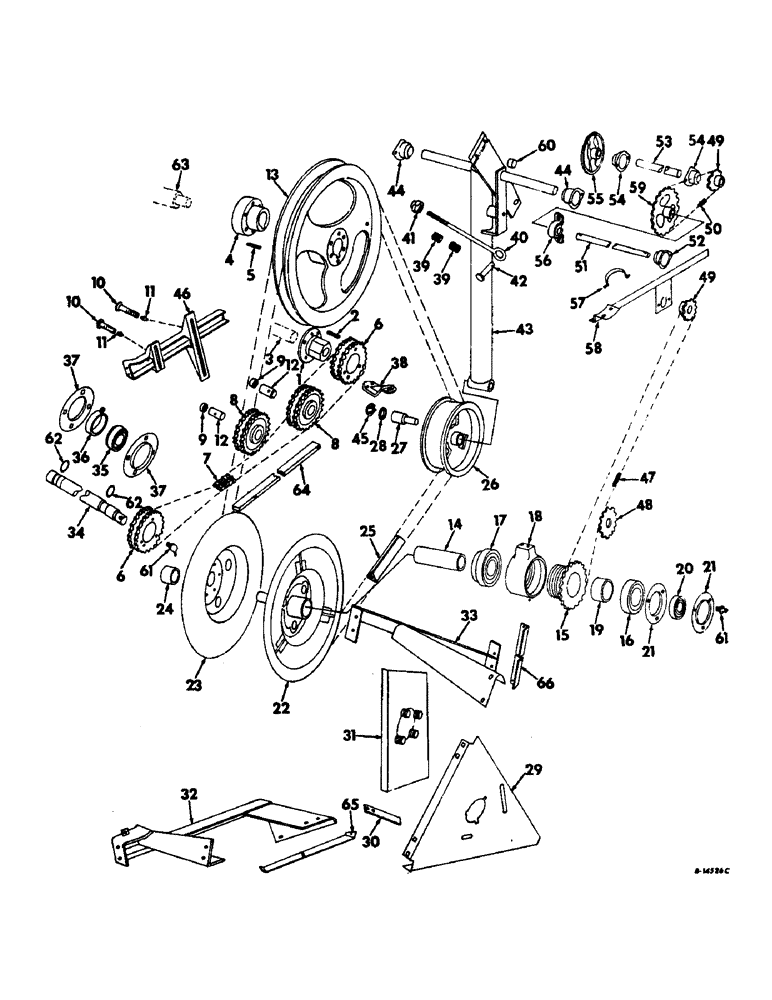

Запчасти Case IH 915 (R-20) - SEPARATOR, VARIABLE CYLINDER DRIVE, SERIAL NO. 1249 AND BELOW Separation

1

160241C1

HUB

cyl drive chain sprocket driven

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

6шт.

23105R1

SCREW, 7/16 x 2-3/4 C-Z hex-hd cap type 4 Hex, 7/16"-14 x 2 3/4", G8

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

2

158416C1

KEY

3/8 x 4.2 sq parallel hardened

1шт.

3

SHAFT ASSY, cylinder beater, refer to cyl beater, grate and concave unit for listing

1шт.

4

160279C2

HUB, cylinder drive chain sprocket drive

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

6шт.

23730R1

SCREW, 7/16 x 5-1/2 C-Z hex-hd cap type 4

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

5

161954C1

KEY, 1/2 x 4.2 sq parallel hardened

1шт.

6

158418C1

DRIVE SPROCKET

SPROCKET, cyl drive or driven 30T

1шт.

6

158419C1

SPROCKET ASSY.

SPROCKET, cyl drive or driven 43T

1шт.

6

158420C1

SPROCKET, cyl drive or driven 54T

1шт.

6

160121C1

SPROCKET ASSY.

SPROCKET, cyl drive or driven 35T

1шт.

6

158421C1

SPROCKET, cyl drive or driven 48T, special

1шт.

6

158693C1

SPROCKET, cyl drive or driven 65T, special

1шт.

6

160122C1

SPROCKET, cyl drive or driven 75T, special

1шт.

7

CHAIN, cyl drive, use 137 links from a 10 ft roll marked 1355-D, two connecting links 5692006R91 and one offset link 570988R91

1шт.

7

CHAIN ASSY, cyl drive extension roller, use 4 roller links 1316D, 7 connecting links 569206R91 and 3 two pitch combination offset links 570988R91

1шт.

8

170507C11

SPROCKET ASSY, cyl drive chain tightener 20T, service assy for sprocket and 158413C11 hub assy, includes ref. no. 9

2шт.

9

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

cyl drive chain tightener hub needle

2шт.

10

575280R1

BOLT (SPREADER)

BOLT, cyl drive chain tightener hub

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 x 1-1/2 x 12 ga, sq hole

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

6шт.

11

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg lub

2шт.

12

578607R1

SLEEVE CYLINDER

SLEEVE, cyl drive chain tightener hub

2шт.

13

163876C1

PULLEY, variable cyl drive 20 in OD

1шт.

14

173158C1

SLEEVE

variable cyl pulley

1шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

SCREW, 7/16 x 1-1/2 C-Z hex-hd cap

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

15

163880C1

SLEEVE, variable cyl pulley control

1шт.

16

165991C91

BALL BEARING,1.6562" ID x 3.007" OD x 0.679"

BEARING, variable cyl pulley control male sleeve

1шт.

17

165992C91

BALL BEARING,2.778" ID x 4.266" OD x 0.875"

BEARING, variable cyl pulley control RH female sleeve

1шт.

18

163879C1

SLEEVE, variable cyl pulley control LH

1шт.

19

161955C1

SPACER, variable cyl pulley control RH sleeve

1шт.

20

455103R91

BEARING

var cyl pulley jackshaft RH

1шт.

21

617863R1

FLANGED BEARING

variable cyl pulley jackshaft RH brg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

22

163882C11

PULLEY

ASSY, var cyl adj half driven

1шт.

23

163883C11

PULLEY

ASSY, variable cyl fixed half or, includes ref. no. 24

1шт.

24

633433R1

BEARING

BUSHING, variable cyl pulley

3шт.

25

164006C1

V-BELT,2.00" W x 116.48" L

Variable Cylinder Drive 2.00" W x 116.48" L

1шт.

26

164024C2

PULLEY

variable cyl drive belt idler 9 in OD

1шт.

27

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

variable cyl drive belt idler pulley

1шт.

28

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, variable cyl drive belt idler pulley

2шт.

29

168160C1

BRACKET, outer bearing

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

30

164086C1

BAR, variable control stop

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

164074C11

BRACKET ASSY, inner bearing

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

32

164075C91

ANGLE ASSY, lower support variable speed pulley

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

33

164081C91

ANGLE ASSY, upper support variable speed cyl drive

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

34

173159C1

SHAFT, variable pulley jack

1шт.

19392R1

LOCK NUT,1 1/8"-12, G5

NUT, 1-1/8 znp nylon insert

1шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

1шт.

607147R1

WASHER

WASHER, hardened

1шт.

35

582815R91

BEARING

ASSY, inner jackshaft ball 1-3/4 in. ID, serial no. 1145 and below

1шт.

35

629723R91

BEARING ASSY,1.688" ID x 3.3465" OD x 1.6875"

ASSY, inner jackshaft ball 1-11/6 ID, serial no. 1146 and above

1шт.

36

58286R11

COLLAR, w/set screw lkg, for 582815R91 bearing, serial no. 1145 and below

1шт.

36

629724R11

COLLAR

COLLAR w/SET SCREW LKG, for 629723R91 bearing, serial no. 1146 and above

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt set

1шт.

37

556080R1

FLANGED BEARING

inner jackshaft brg

2шт.

38

167273C1

BRACKET, cyl drive chain guide front

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

39

608347R1

SPRING

variable speed drive belt tightener

2шт.

40

164451C1

BOLT, variable speed drive belt tightener eye

1шт.

22244R1

LOCK NUT

3/4 C-Z nylon insert

1шт.

41

164182C1

WASHER, spring retainer

3шт.

42

23237R1

HEADED PIN,3/4" x 1 3/4"

PIN, eye bolt anchor

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

43

164129C91

LEVER ASSY, variable speed cyl drive belt tightener, includes ref. no. 60

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

475954R1

NUT

3/8 C-Z flange lock

2шт.

44

157428C91

BUSHING

BEARING, belt tightener pivot shaft side flange

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

4шт.

45

NLS

NO LONGER SERVICED

tightener pulley button

1шт.

46

167441C1

BRACKET, drive chain tightener

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

47

CHAIN, variable speed cyl adj control lower, use 121 link from a 10 ft roll marked 569088R91, two connecting link 457113R91 one offset connecting links 457114R91 and one roller link 457112R91

1шт.

48

607779R91

DRIVE SPROCKET

SPROCKET ASSY, lower adj control chain tightener 18 T

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

390554R1

WASHER, 17/32 x 1 x 1/4 C-Z

3шт.

49

164302C1

SPROCKET ASSY.

SPROCKET, variable speed cyl drive control 8T

2шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

50

CHAIN, variable speed cyl drive console adj, use 31 links from a 10 ft roll marked 569088R91 and one connecting link 457113R91

1шт.

51

164305C4

SHAFT, variable cyl speed upper control

1шт.

52

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, variable cyl speed upper control shaft

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

53

164303C1

SHAFT, variable speed control console

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

54

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, variable speed control console

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

55

164306C1

WHEEL, cyl speed adj hand

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

56

165909C91

BUSHING

BEARING, jackshaft upper control pillow block

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

57

165835C1

STRAP, control shaft brg outer support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

58

165836C91

BRACKET ASSY, control shaft outer brg support

1шт.

59

164793C1

SPROCKET, cyl drive control 18T

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

60

568615R2

BEARING

BUSHING, drive spring draw bolt anchor hub

1шт.

61

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 67-1/2 deg angle lub

2шт.

62

290028R1

O-RING

2 x 2-1/4 x 1/8

2шт.

63

SHAFT, cylinder, refer to cylinder, slip clutch and speed indicator unit for listing

1шт.

64

167274C1

GUIDE, cyl drive chain

1шт.

18772R1

BOLT

5/16 x 3-1/2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

65

167961C1

BRACE, cyl jackshaft bracket brace

1шт.

66

167962C1

ANGLE, cyl jackshaft bracket tie

1шт.
