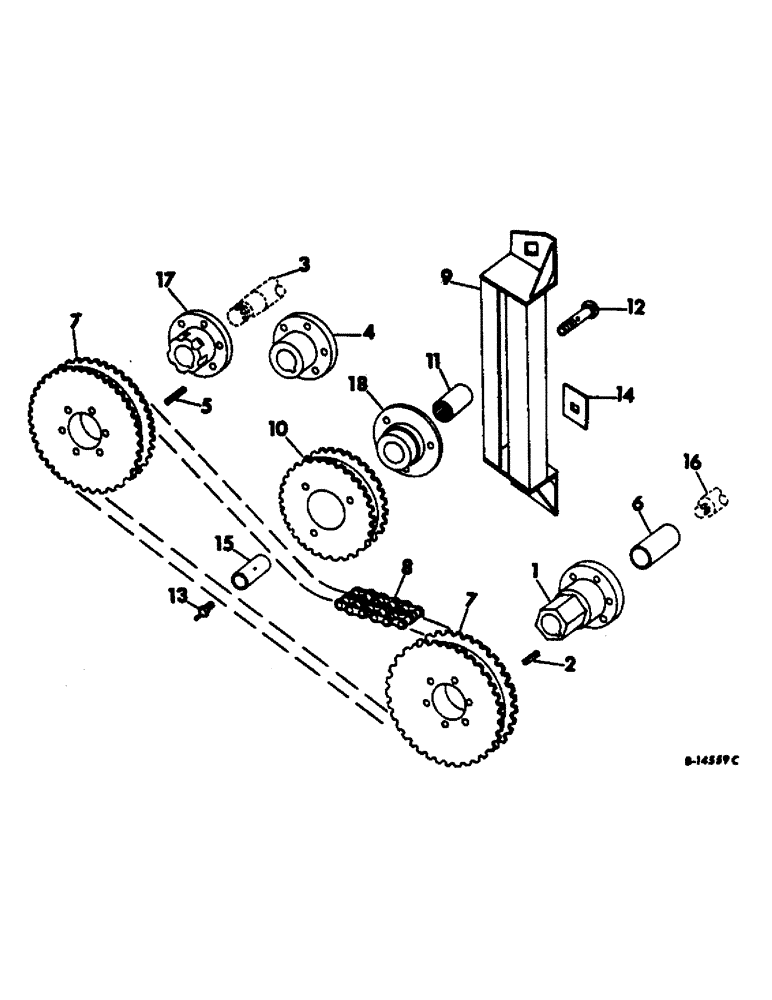

Запчасти Case IH 915 (R-18) - SEPARATOR, CYLINDER DRIVE MECHANICAL Separation

1

160241C1

HUB

cyl drive chain sprocket driven

1шт.

9418646

NUT,7/16"-14, G8

7/16 C-Z hex.

6шт.

23105R1

SCREW, 7/16 x 2-3/4 hex-hd cap Hex, 7/16"-14 x 2 3/4", G8

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 C-Z rib lock

6шт.

2

158416C1

KEY

3/8 x 4.2 sq parallel, hardened

1шт.

3

SHAFT ASSY, cylinder beater, refer to cylinder beater unit for listing

1шт.

4

160279C2

HUB, cyl drive chain sprocket drive, serial no. 2670 and below

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

6шт.

23730R1

SCREW, 7/16 x 5-1/2 hex-hd cap

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

5

161954C1

KEY, 1/2 x 4.2 sq parallel, hardened, serial no. 2670 and below

1шт.

5

172303C1

KEY

1/2 x 6 sq parallel hardened, serial no. 2671 and above

1шт.

6

160280C1

SPACER, cyl driven sprocket hub, serial no. 2670 and below

1шт.

6

172318C1

SPACER

cyl driven sprocket hub, serial no. 2671 and above

1шт.

7

158418C1

DRIVE SPROCKET

SPROCKET, cyl drive or driven 30T

1шт.

7

158419C1

SPROCKET ASSY.

SPROCKET, cyl drive or driven 43T

1шт.

7

158420C1

SPROCKET, cyl drive or driven 54T

1шт.

7

160121C1

SPROCKET ASSY.

SPROCKET, cyl drive or driven 35T

1шт.

7

158421C1

SPROCKET, cyl drive or driven 48T, special

1шт.

7

158693C1

SPROCKET, cyl drive or driven 65T, special

1шт.

7

160122C1

SPROCKET, cyl drive or driven 75T, special

1шт.

8

CHAIN, cyl drive roller, use 81 links from 10 ft roll marked 1355D, 3 connecting links 569206R91 and 4 roller links 1316D

1шт.

8

CHAIN ASSY, cyl drive extension, use 4 roller links 1316D, 7 connecting links 569206R91 and 3 two pitch combination offset links 570988R91

1шт.

9

158410C92

SUPPORT

BRACKET ASSY, cylinder drive chain tightener hub

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

10

158417C1

GEAR

SPROCKET, cyl drive chain tightener 22T

1шт.

11

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

cyl drive chain tightener hub needle

1шт.

12

575280R1

BOLT (SPREADER)

BOLT, cyl drive chain tightener hub

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

579331R1

WASHER

21/32 x 2 x 3/16 hardened

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

14

160690C1

BAR

cyl drive chain tightener sprocket bolt

1шт.

15

578607R1

SLEEVE CYLINDER

SLEEVE, cyl drive chain tightener hub

1шт.

16

SHAFT ASSY, cylinder, refer to cylinder unit for listing

1шт.

17

172300C1

HUB, cyl drive chain sprocket drive, serial no. 2671 and above

1шт.

454948

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 8

7/16 x 2-1/2 znd hex-hd

6шт.

9418646

NUT,7/16"-14, G8

7/16 C-Z hex.

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 C-Z rib lock

6шт.

18

158413C11

HUB

ASSY, cyl drive chain tightener sprocket, includes ref. no. 11

1шт.

21901R1

BOLT,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 hex-hd

1шт.

366863R1

WASHER, 25/32 x 1-1/4 x 11 ga

1шт.
