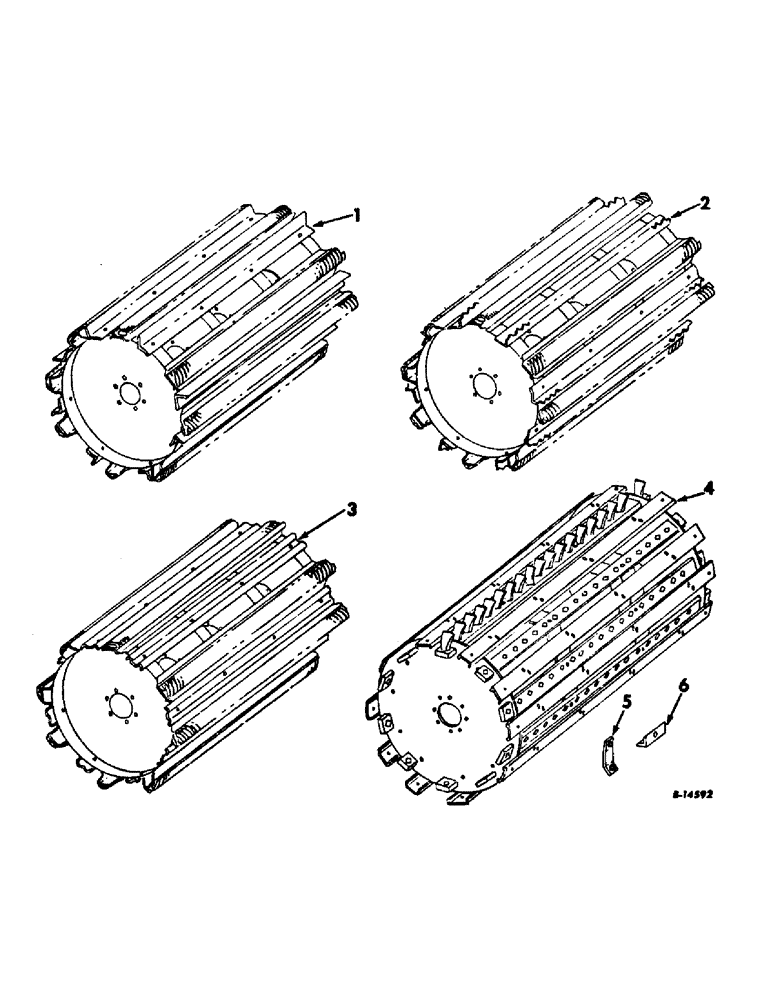

Запчасти Case IH 915 (R-17) - SEPARATOR, SPECIAL CYLINDER BARS Separation

166013C91

PACKAGE, cylinder filler bars, serial no. 2670 and below, spike tooth, parts accessories, includes 4, 5 and 6

1шт.

175321C91

PACKAGE, cylinder filler bars, serial no. 2671 and above, spike tooth, parts accessories, includes 4, 5 and 6

1шт.

1

633619R92

BAR ASSY, smooth cyl, for rasp bar cylinder

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/8 x 1 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

633618R2

BAR, notched cyl, for rasp bar cylinder

2шт.

181637

SCREW, 3/8 x 1 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

633622R1

FILLER, cyl bar steel, serial no. 2349 and below, for rasp bar cylinder

8шт.

NLS

NO LONGER SERVICED

SCREW, 3/8 x 1 C-Z he-xhd cap

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.

4

164686C1

CHANNEL, cyl filler LH, serial no. 2670 and below

5шт.

4

164687C1

CHANNEL, cyl filler RH, serial no. 2670 and below, for spike tooth cylinder

5шт.

4

175316C1

CHANNEL, cylinder filler LH, serial no. 2671 and above

1шт.

4

175317C1

CHANNEL, cylinder filler RH, serial no. 2671 and above

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2 x 1-1/4 C-Z hex-hd cap

50шт.

366864C1

LOCK WASHER,1/2"

1/2"

50шт.

5

162006C11

RETAINER ASSY, filler bar, for spike tooth cylinder

30шт.

6

162007C11

ANGLE ASSY, cyl filler channel support, for spike tooth cylinder

20шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

SCREW, 3/8 x 1 C-Z hex-hd cap type 4

40шт.

366862C1

LOCK WASHER,3/8"

3/8"

40шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

80шт.
