Запчасти Case IH 915 (R-15) - SEPARATOR, SPIKE TOOTH CYLINDER Separation

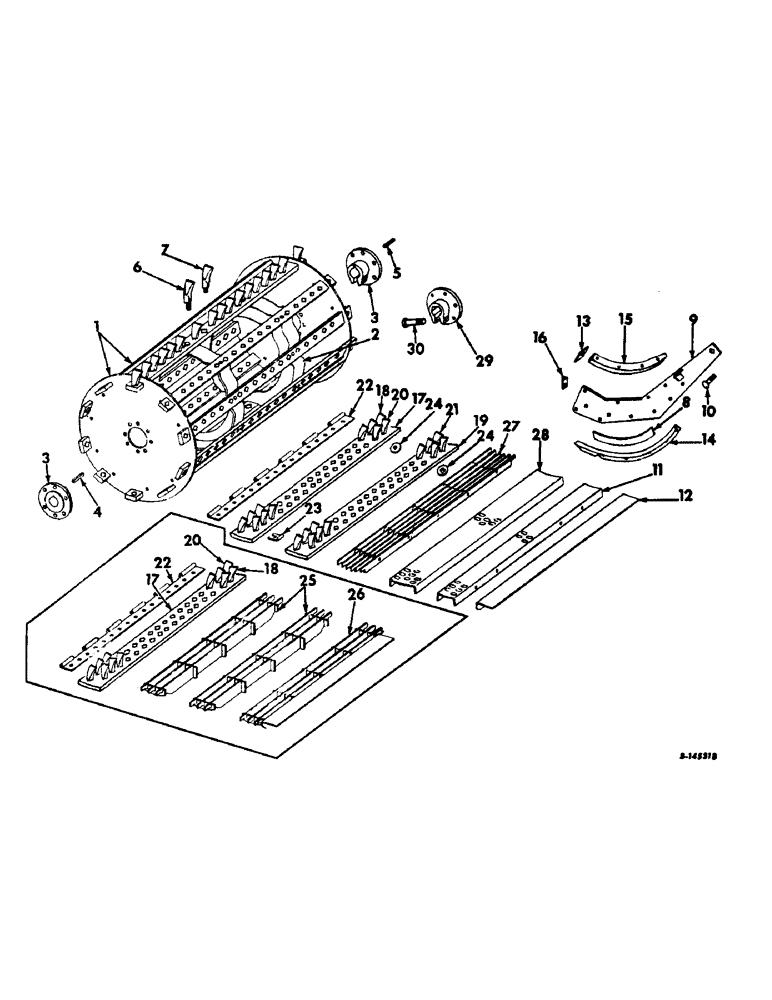

Схема запчастей Case IH 915 - (R-15) - SEPARATOR, SPIKE TOOTH CYLINDER Separation
9
22
24
20
26
28
8
16
22
12
4
17
1
10
25
21
30
6
3
23
19
29
17
18
2
14
3
5
20
18
27
13
11
15
24
7

Артикул

Название

Примечание

Количество

1

160069C91

CYLINDER ASSY, spike tooth, for round shaft, serial no. 2670 and below, includes ref. nos. 2, 3, 6 & 7

1шт.

1

172308C91

CYLINDER ASSY, spike tooth, for hex. shaft, serial no. 2671 and above, includes ref. no.s 2, 6, 7 and 29

1шт.

2

567891R1

HEAD, cylinder center

3шт.

104118

RIVET, 3/8 x 1-5/8 b-hd

30шт.

3

160066C1

HUB, cyl, for round shaft, serial no. 2670 and below

2шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

104115

RIVET,But Hd, 3/8" x 1 1/4"

3/8 x 1-1/4 b-hd

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

Q97

KEY, 1/2 x 5 sq parallel, serial no. 2670 and below 1/2" Sq x 5", Par

1шт.

5

612971R1

KEY, 1/2 x 2-1/2 sq parallel, serial no. 2670 and below 1/2" Sq x 2 1/2", Par

1шт.

6

155992C2

TOOTH

cylinder middle

30шт.

102638

9/16 hex.

30шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

30шт.

7

155993C2

TOOTH

cylinder

200шт.

102638

9/16-12 hex.

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

200шт.

8

587764R1

SHIM

concave adj

8шт.

9

567901R11

SUPPORT ASSY, concave LH

1шт.

9

567902R11

SUPPORT ASSY, concave RH

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

20шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

10

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 no. 3 znp plow type 4

4шт.

10

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 znp sq-nk crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

6шт.

11

588847R91

GRATE, concave rear, bean special

1шт.

12

582762R1

EXTENSION, concave rear, bean special

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

567908R1

BAR

CLIP, concave lkg

2шт.

14

568137R1

RETAINER, concave lower LH

1шт.

14

568138R1

RETAINER, concave lower RH

1шт.

15

568135R1

SUPPORT

RETAINER, concave upper LH

1шт.

15

568136R1

SUPPORT

RETAINER, concave upper RH

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex jam

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

16

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

16

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

17

156000C91

CONCAVE, front

1шт.

18

155993C2

TOOTH

front concave, short, 20 used grain, 23 used rice

1шт.

NLS

NO LONGER SERVICED

9/16 hex.

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

19

156000C91

CONCAVE, rear, bean special

1шт.

20

155992C2

TOOTH

concave, long, 23 used grain, 20 used rice

1шт.

102638

9/16-12 hex.

35шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

35шт.

21

155993C2

TOOTH

rear concave, bean special

43шт.

NLS

NO LONGER SERVICED

9/16-12 hex.

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

43шт.

22

155989C1

HINGE, front concave extension

1шт.

23

155984C1

SPACER, front concave, bean special

3шт.

24

936476R1

SQ HOLE WASHER

concave tooth

1шт.

25

582770R91

CONCAVE ASSY, bar, rice

2шт.

26

582772R91

CONCAVE ASSY, bar rear, rice

1шт.

27

582758R91

GRATE ASSY, concave bar, bean special

2шт.

28

588845R91

GRATE, concave, bean special

2шт.

29

172312C1

HUB, cylinder head, for hex. shaft, serial no. 2671 and above

2шт.

104115

RIVET,But Hd, 3/8" x 1 1/4"

3/8 x 1-5/8 b-hd

16шт.

30

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Выбрано товаров: 67
