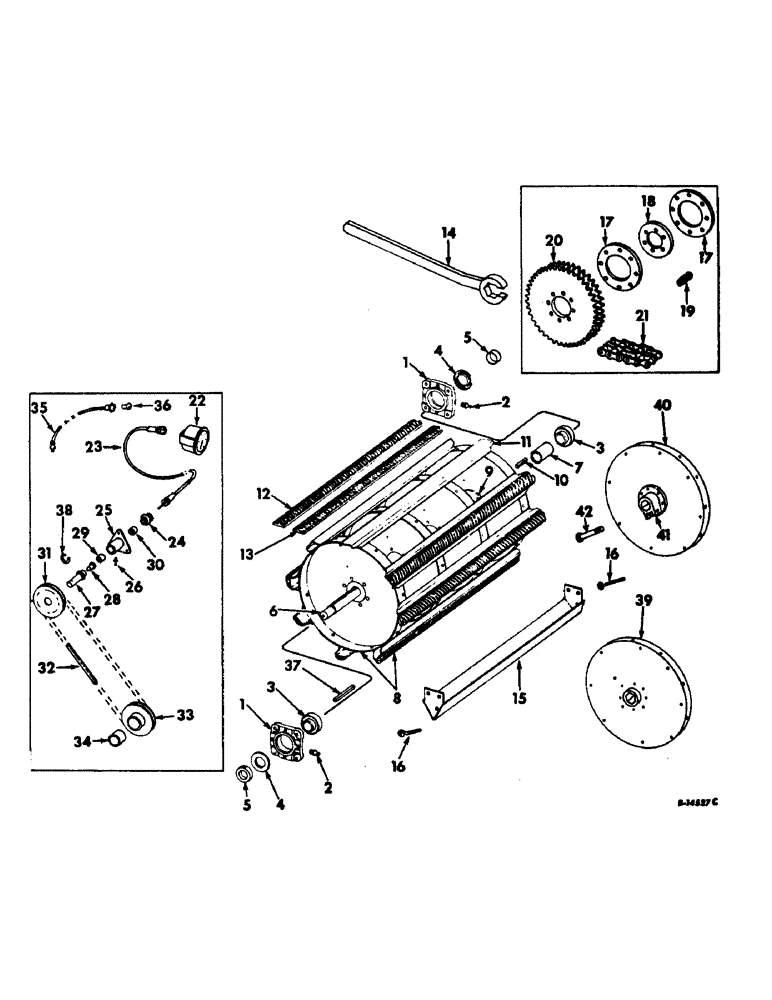

Запчасти Case IH 915 (R-13) - SEPARATOR, CYLINDER, CYLINDER SLIP CLUTCH AND SPEED INDICATOR Separation

1

160071C11

HOUSING ASSY, cyl shaft, includes ref. no. 3, serial no. 2670 and below

2шт.

1

172316C11

HOUSING

ASSY, cyl shaft, includes ref. no. 3, serial no. 2671 and above

2шт.

2

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/8-28 45 deg angle lube

2шт.

3

939626R91

BEARING

cyl shaft ball, serial no. 2670 and below

2шт.

3

172408C91

BALL BEARING,49.21mm ID x 90mm OD x 23mm W

BEARING, cyl shaft ball, serial no. 2671 and above

2шт.

4

939627R91

SEAL

SEAL, cyl shaft bearing, serial no. 2670 and below

2шт.

5

618032R11

COLLAR

ASSY, lkg

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd

1шт.

6

160284C11

SHAFT ASSY, cyl, for round shaft, serial no. 2670 and below

1шт.

6

172314C11

SHAFT ASSY, cylinder, for hex. shaft, serial no. 2671 and above

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 C-Z hex. lock

1шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

2шт.

24552R1

WASHER

1-1/32 x 2 x 22 ga C-Z

3шт.

20705R1

WASHER

1-25/32 x 2 x 16 ga C-Z

10шт.

21787R1

WASHER

2-1/16 x 2-15/16 x 16 ga

6шт.

7

160070C1

SPACER, cyl shaft, serial no. 2670 and below, for grain, corn and windrow spec

1шт.

7

629712R1

SPACER

cyl shaft, serial no. 2671 and above, for grain, corn and windrow spec

1шт.

8

160065C91

CYLINDER ASSY, rasp bar, for round shaft, serial no. 2670 and below, includes ref. nos. 9, 11, 12 & 13 for grain, corn and windrow spec

1шт.

8

165438C91

CYLINDER ASSY W/HARDENED BARS, for round shaft, serial no. 2670 and below, includes ref. nos. 9, 11, 12 & 13, rice special

1шт.

8

172306C91

CYLINDER ASSY, rasp bar, for hex. shaft, serial no. 2671 and above, for grain, corn and windrow special includes ref. nos. 11, 12, 13, 39, 40 and 41

1шт.

8

172307C91

CYLINDER ASSY, rasp bar hardened, for hex. shaft, serial no. 2671 and above, includes ref. nos. 11, 12, 13, 39, 40 and 41

1шт.

9

161721C1

HUB, cyl shaft, for round shaft, serial no. 2670 and below

4шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 b-hd

32шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

612971R1

KEY, 1/2 x 2-1/2 sq parallel, serial no. 2670 and below 1/2" Sq x 2 1/2", Par

1шт.

11

633523R1

BRACKET

SUPPORT, cyl bar

8шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach, for balance as reqd

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach, for balance as reqd

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach, for balance as reqd

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 b-hd

128шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

3шт.

12

654252R91

BAR

ASSY, cyl LH set, consist of 2 LH bars, for grain, corn and windrow special, optional for bean

1шт.

12

935690R91

BAR ASSY, cyl LH set, hardened, consist of 2 LH bars

1шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16 x 9/16 hex-hd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

13

654253R91

BAR

ASSY, cyl RH set consist of 2 RH bars, for grain, corn and windrow special, optional for bean

1шт.

13

935691R91

BAR ASSY, cylinder Rh set, hardened, consist of 2 RH bars

1шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16 x 9/16 hex-hd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

14

170432C1

IGNITION KEY

TOOL ASSY, cyl rocking bar

1шт.

15

157511C92

CROSS MEMBER ASSY, cyl stripper

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

16

634125R2

BOLT,3/8" - 16 x 4.62"

cyl stripper cross member adj

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

2шт.

17

158690C2

PLATE, cyl drive slip clutch outer

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Stover 3/8"-16, GB

8шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8 x 3-1/2 hex-hd cap

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.

18

158691C1

PLATE, cylinder drive slip clutch inner

1шт.

19

M74156

SPRING

cylinder drive slip clutch

8шт.

20

161916C1

SPROCKET, cylinder drive or driven 75T

1шт.

20

158692C1

SPROCKET, cylinder drive or driven 65T

1шт.

20

570655R1

SPROCKET, cylinder drive or driven 48T, special

1шт.

20

174169C1

SPROCKET, cylinder drive or driven 88T

1шт.

21

CHAIN, cyl drive extension roller, use 5 links from 10-ft roll marked 1355D, 2 roller links 1316D, 3 connecting links 569206R91 and 1 two pitch combination offset connecting link 570988R91

1шт.

22

TACHOMETER ASSY, refer to section M under gauges, speedometer, tachometer and switches for unit listing

1шт.

23

164883C91

HOSE ASSY.

SHAFT ASSY, tachometer flexible

1шт.

24

164884C1

ADAPTER

UNION, tachometer flexible shaft

1шт.

25

164885C11

HOUSING ASSY, tachometer jackshaft support, includes ref. nos. 29 and 30

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

26

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

27

1735829C1

JACKSHAFT ASSY, tachometer, includes ref. no. 28

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

5шт.

28

164892C1

BUSHING

tachometer flexible shaft drv

1шт.

29

490509R91

NEEDLE BEARING

ASSY, tachometer jackshaft outer needle

1шт.

30

336180R91

NEEDLE BEARING

ASSY, tachometer jackshaft inner needle

1шт.

31

164887C1

PULLEY

tachometer shaft driven 4 in OD

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

32

167099C1

V-BELT,0.24" W x 53.96" L

Tachometer Shaft Drive 0.24" W x 53.96" L

1шт.

33

164879C2

PULLEY, tachometer shaft, 4 in. OD

1шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 16 ga

4шт.

34

164229C1

SPACER, cylinder shaft right

1шт.

35

372546R91

CABLE

SOCKET ASSY, cyl tachometer light

1шт.

36

127934

BELT, TRANSMISSION

cyl tachometer light

1шт.

37

Q97

KEY, 1/2 x 5 sq parallel, serial no. 2670 and below 1/2" Sq x 5", Par

1шт.

38

324050R1

SNAP RING

RING, tachometer jackshaft snap

1шт.

39

172309C1

HEAD ASSY, cylinder, for hex. shaft, serial no. 2671 and above

2шт.

40

172311C91

HEAD ASSY, cylinder w/hub, for hex. shaft, includes ref. no. 41, serial no. 2671 and above

2шт.

41

172312C1

HUB, cylinder head, for hex. shaft, serial no. 2671 and above

2шт.

NLS

NO LONGER SERVICED

3/8 x 1 b-hd

16шт.

42

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

21330R1

NUT,1/2"-13, G8

1/2 hex.

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.
