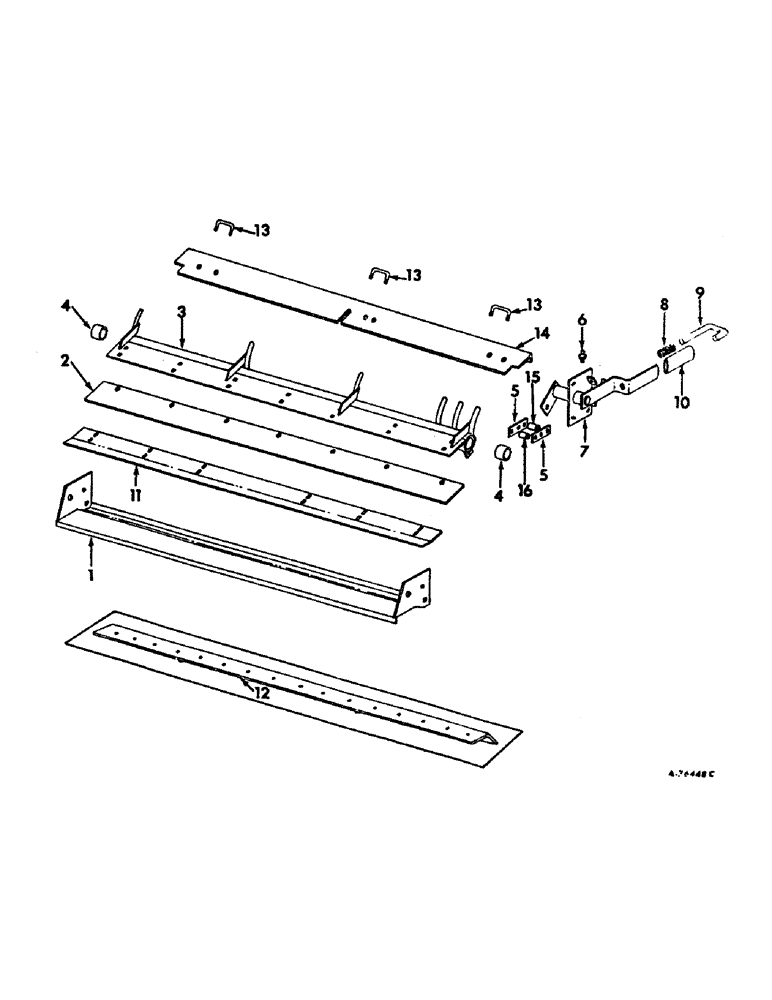

Запчасти Case IH 915 (R-12) - SEPARATOR, STONE RETARDER ATTACHMENT Separation

1

165529C92

SUPPORT ASSY, grain pan front seal

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

2

165660C1

STRIP

SEAL, feeder bottom

1шт.

3

165653C91

RETARDER ASSY, stone, includes ref. no. 4

1шт.

4

166072C1

BUSHING, stone retarder tube

2шт.

5

165671C1

LINK, stone retarder control

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

22898R1

PIN, 3/8 x 1-1/4 C-Z std-hd dld

2шт.

142619H1

WASHER, 13/32 x 3/4 x 11 ga

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 STR lub

1шт.

7

165710C91

LEVER ASSY, stone retarder control

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

8

897396R1

SPRING, stone retarder control lock

1шт.

9

165717C1

PIN, stone retarder control lock

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

10

632519R1

GRIP

stone retarder control lever, serial no. 1249 and below

1шт.

11

165659C1

STIFFENER, feeder bottom seal

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

14шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

14шт.

12

168059C1

DEFLECTOR ASSY, spike tooth cyl, for use w/spike tooth cylinder

1шт.

13

168072C1

U-BOLT, stone retarder finger cover

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

14

167849C1

COVER, stone retarder finger

1шт.

15

S5375

SPACER,3/8" Pipe x 3/8"

stone retarder control link, serial no. 3282 and below

2шт.

16

61851V

SPACER,1/4" Pipe x 3/4"

Stone retarder control link 1/4" Pipe x 3/4"

1шт.
