Запчасти Case IH 915 (R-06) - SEPARATOR, SEPARATOR REAR WEIGHT Separation

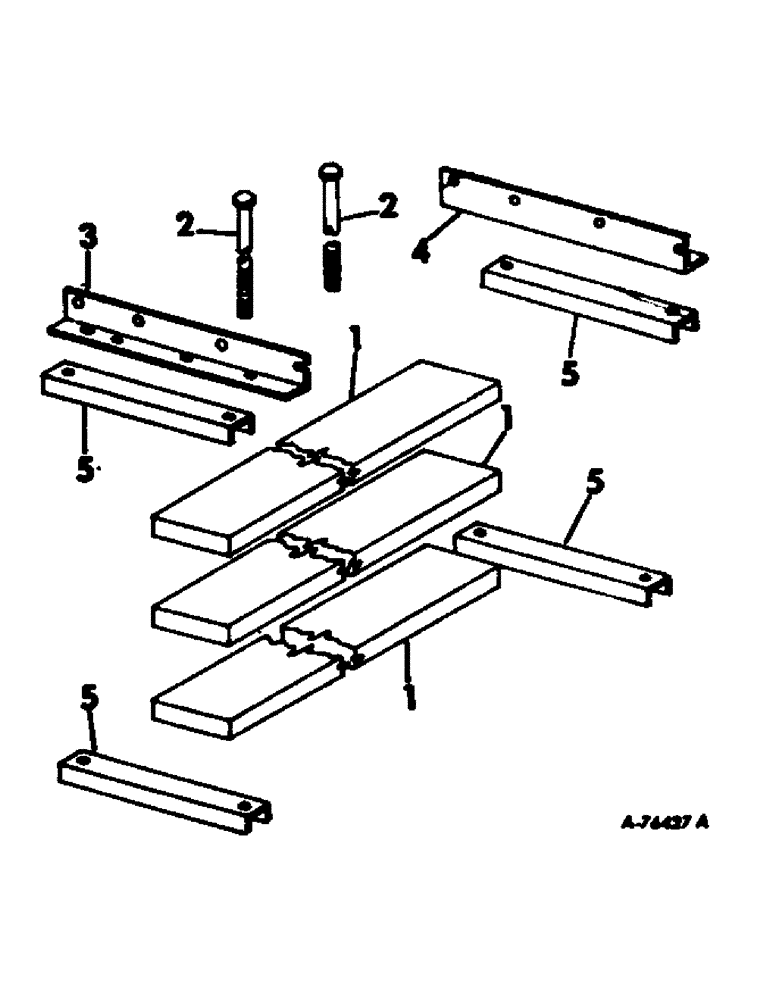

Схема запчастей Case IH 915 - (R-06) - SEPARATOR, SEPARATOR REAR WEIGHT Separation
5
1
2
5
2
4
5
1
1
3
5

Артикул

Название

Примечание

Количество

1

167834C1

BAR, separator rear weight, 71.5 lbs

10шт.

2

466364R1

SCREW, 5/8 x 13 C-Z hex-hd cap, for 1450 lbs of weight

4шт.

2

167841C1

SCREW, 5/8 x 8 C-Z hex-hd cap, for 700 lbs of weight

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21759R1

WASHER

21/32 x 11 ga C-Z

2шт.

3

167839C1

ANGLE, separator rear weight support left

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

17837R1

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

2шт.

4

167840C1

ANGLE, separator rear weight support right

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

17837R1

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

2шт.

5

167837C1

SUPPORT, separator rear weight bar

4шт.
